5
308-799

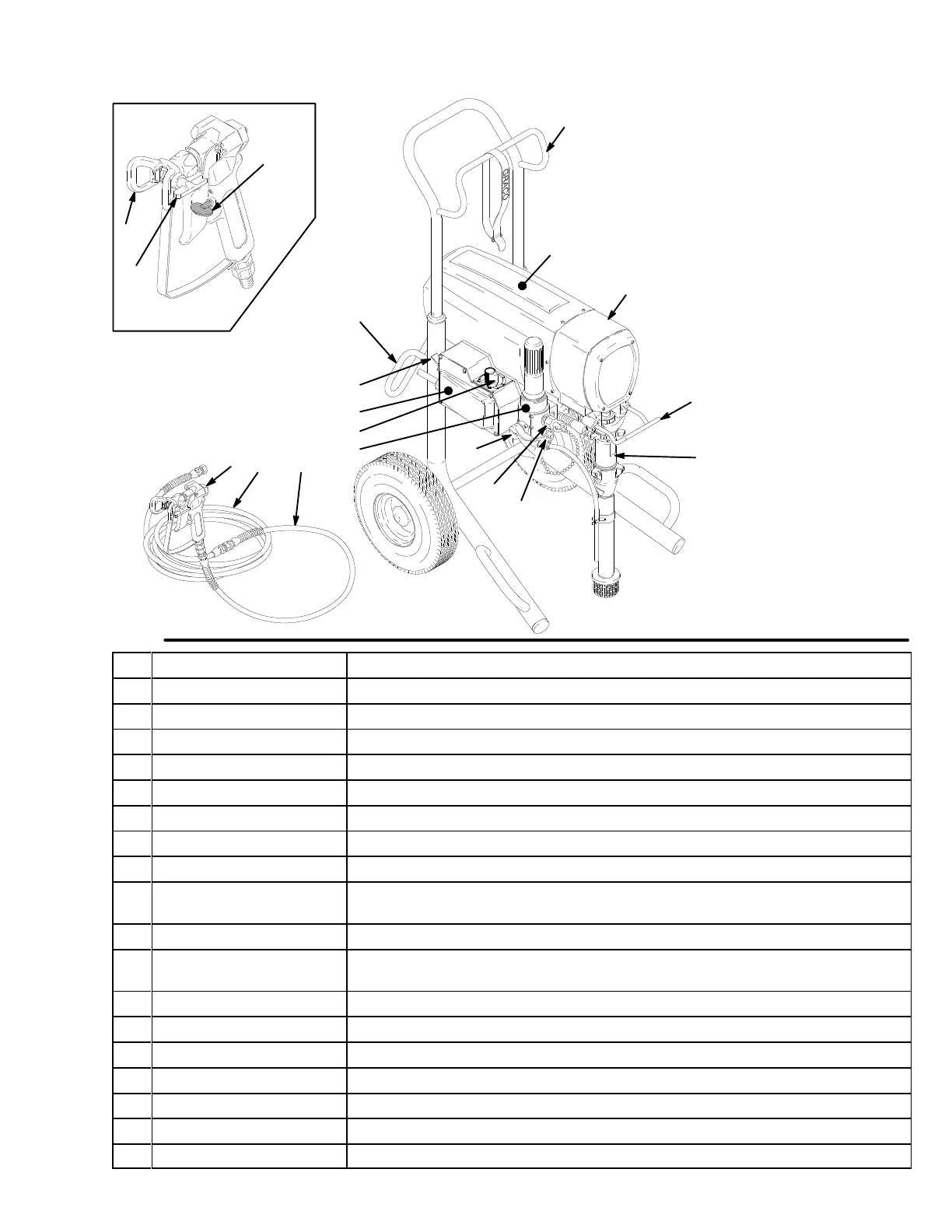

Component
Identification and Function
03008
Fig.
1
N
K
E
H
B
A
L
T
C
P
R
M
D
J
S
G
F
7690A
U
V
A
Motor
DC motor, permanent magnet, totally enclosed, fan cooled
B
Drive Assembly
T
ransfers power from DC motor to the displacement pump
C
Pail Hanger
Container for fluid to be sprayed may be hung here
D
Displacement Pump
T
ransfers fluid to be sprayed from source through spray gun
E
Primary Fluid Outlet
Single spray gun operation is connected here
F
Secondary Fluid Outlet
Second spray gun operation is connected here
G
Pressure Drain V
alve
Relieves fluid outlet pressure when open
H
Fluid Filter
Final filter of fluid between source and spray gun
J
Pressure Adjusting Knob
Controls fluid outlet pressure
K
Pressure Control
Controls motor speed to maintain fluid outlet pressure at displacement pump
outlet. W
orks with pressure adjusting knob.
L
ON/OFF Switch
Power switch that controls 120 V
AC main power to sprayer
M
3 ft (0.9 m) Hose
3/16 in. ID, grounded, nylon hose used between 50 ft hose and spray gun to
allow more flexibility when spraying
N
50 ft (15 m) Main Hose
1/4 in. ID, grounded, nylon hose with spring guards on both ends
P
Contractor Gun
High pressure spray gun with gun safety latch
R
RAC IV Switch T
ip
Uses high pressure fluid to clear tip clogs without removing tip from spray gun
S
RAC IV T
ip Guard
Reverse-A-Clean (RAC) tip guard reduces the risk of injection injury
T
Spray Gun Safety Latch
Gun safety latch inhibits accidental triggering of spray gun
U
Power Cord Rack
Holds wrapped power cord for storage
V
Spray Hose Rack
Holds wrapped spray hose for storage
