Graco ultra max 1095 Instructions-Parts List

31
308-799
Accessories
French 185–955
Spanish 185–962
German 186–042
Greek 186–046
Korean 186–050
Apply other
language here
DANGER LABELS
The English language DANGER label shown on
page 4 is also on your sprayer . If you have paint -
ers who do not read English, order one of the fol -

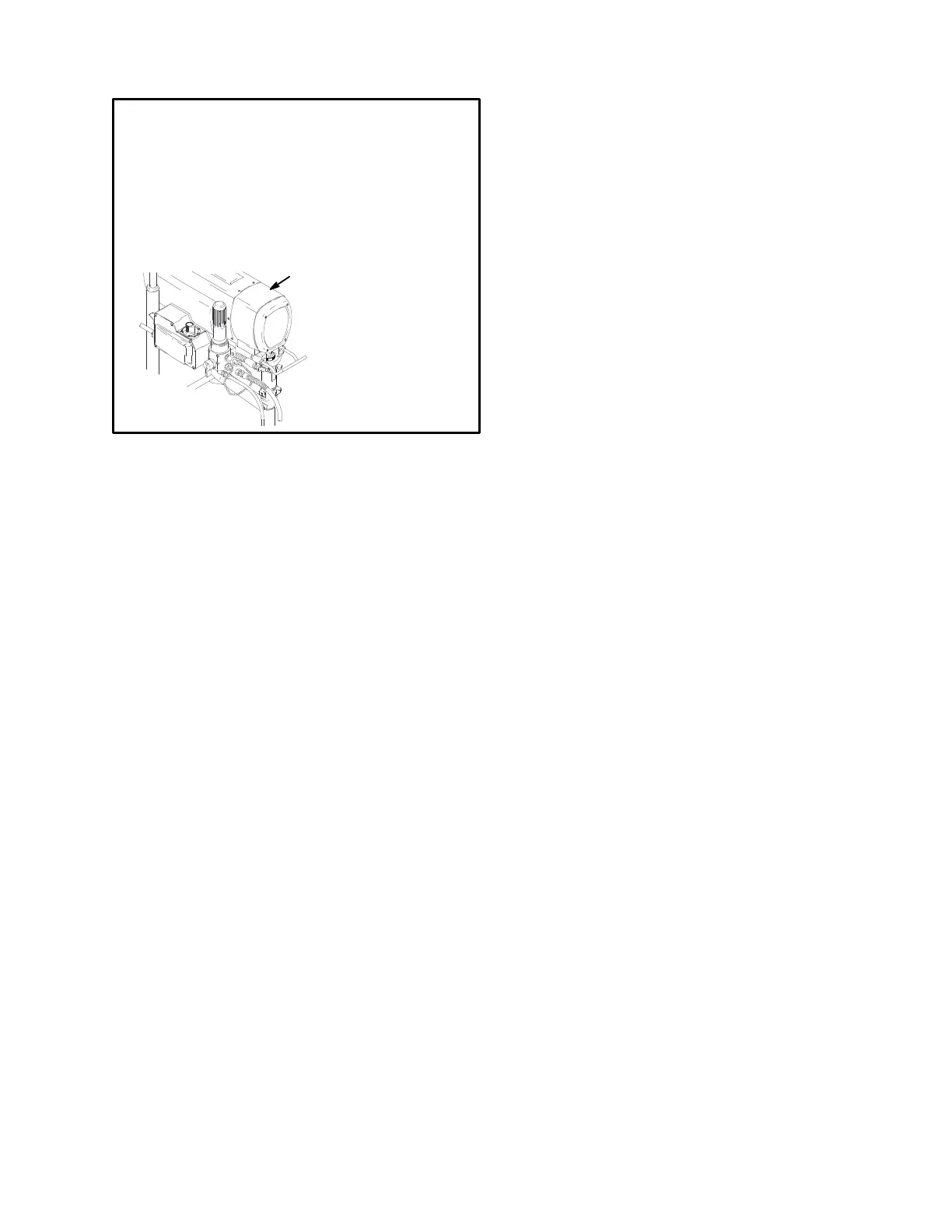

lowing labels to apply to your sprayer . The draw -
ing shows the best placement of these labels for
good visibility .
Order the labels directly from Graco, free of
charge. T oll Free: 1–800–328–0211
7691A
Technical Data
Power Requirements 120 V AC, 60 Hz,. . . . . . . . . . . . . . . . . . .
1 phase, 15A minimum or 4000W generator
Motor 1.2 HP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
(with latex at 2000 psi (138 bar, 13.8 MPa)
W orking Pressure Range 0–3000 psi (0–210 bar , 0–21 MPa)
Cycles/Gallon (liter) 193 (51) . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maximum Delivery Rating 1.1 gpm (4.1 lpm) . . . . . . . . . . . . . .
Tip Size one gun – 0.032; two guns – 0.021 . . . . . . . . . . . . . . .
(with latex at 2000 psi (138 bar, 13.8 MPa)
Power Cord 14 A WG, 3 wire, 15 ft (4.5 m) . . . . . . . . . . . . . . . . .
Inlet Paint Strainer 16 mesh (975 micron) . . . . . . . . . . . . . . . . .
stainless steel screen, reusable
Outlet Paint Filter 60 mesh (238 micron) . . . . . . . . . . . . . . . . . .
stainless steel screen, reusable
Pump Inlet Size 3/4 npt(m) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fluid Outlet Size
Filter 3/8 npt(f) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Filter with standard 3/8 npt(f) to 1/4 npsm adapter 1/4 npsm
Basic Sprayer W etted Parts: zinc-plated carbon steel, . . . . . .
polyurethane, polyethylene, stainless steel,
R , Delrin R, chrome plating, leather ,
V-Maxt UHMWPE, aluminum,
stainless steel, tungsten carbide
NOTE: DelrinR and R
Dimensions
W eight (dry w/o packaging) 107 lb (49 kg) . . . . . . . . . . . . . . . .
Height 28.5 in. (724 mm) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Length 25.5 in. (648 mm) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Width 20.5 in. (521 mm) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PTFE
PTFE
