Graco ULTRA MAX 695 User Manual

308852 19
Technical Data
Power Requirements
Model 232138, 232135 230 VAC, 50 Hz,. . . . . . . . . .
1 phase, 10A minimum
Model 232136, 232137 100 VAC, 50 Hz,. . . . . . . . . .
1 phase, 15A minimum
Generator 3000W minimum. . . . . . . . . . . . . . . . . . . . . . .
Working Pressure Range 0–3000 psi. . . . . . . . . . . . . . .
(0–210 bar, 21 MPa)
Motor 0.9 HP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
with latex at 2000 psi (138 bar, 13.8 MPa)
Cycles/Gallon (liter) 566 (150). . . . . . . . . . . . . . . . . . . . .
Maximum Delivery Rating 0.6 gpm (2.3 lpm). . . . . . . .
Tip Size one gun to 0.024 new tip. . . . . . . . . . . . . . . . . .
with latex at 2000 psi (138 bar, 13.8 MPa)
Power Cord 14 AWG, 3 wire, 15 ft (4.5 m). . . . . . . . . . .
Inlet Paint Strainer 16 mesh (975 micron). . . . . . . . . . . .
Stainless Steel Screen, reusable
Outlet Filter 60 mesh (238 micron). . . . . . . . . . . . . . . . . .
Pump Inlet Size 3/4 npt(f). . . . . . . . . . . . . . . . . . . . . . . . .
Fluid Outlet Size 1/4 npsm. . . . . . . . . . . . . . . . . . . . . . . .
Sound Data:
Sound Pressure Level 82dB(A)*. . . . . . . . . . . . . . . . . .
Sound Power Level 91dB(A)*. . . . . . . . . . . . . . . . . . . .
*Measured while spraying with a .017 tip per ISO–3744
Wetted Parts: Zinc-plated carbon steel,. . . . . . . . . . . . .
Aluminum, Stainless steel,
Polyethylene, DelrinR, Leather
Tungsten carbide, Chrome plating, Polyurethane
NOTE:
)
and Delrin
)
are trademarks of the Company.
Dimensions
Model 232135, 232137 Model 232138, 232136
Weight (dry w/o packaging) 61 lb (27.7 kg). . . . . . . . . .
Length (handle collapsed) 25.5 in. (648 mm). . . . . . . .
Width 15 in. (381 mm). . . . . . . . . . . . . . . . . . . . . . . . . . . .
Height 20 in. (508 mm). . . . . . . . . . . . . . . . . . . . . . . . . . .
Weight (dry w/o packaging) 73 lb (33.1 kg). . . . . . . . . .
Length 21 in. (533 mm). . . . . . . . . . . . . . . . . . . . . . . . . . .
Width 20.5 in. (521 mm). . . . . . . . . . . . . . . . . . . . . . . . . .
Height (Handle Down) 28.5 in. (711 mm). . . . . . . . . . . .
Accessories
DANGER LABELS
An English language DANGER label is on your sprayer.
If you have painters who do not read English, order one

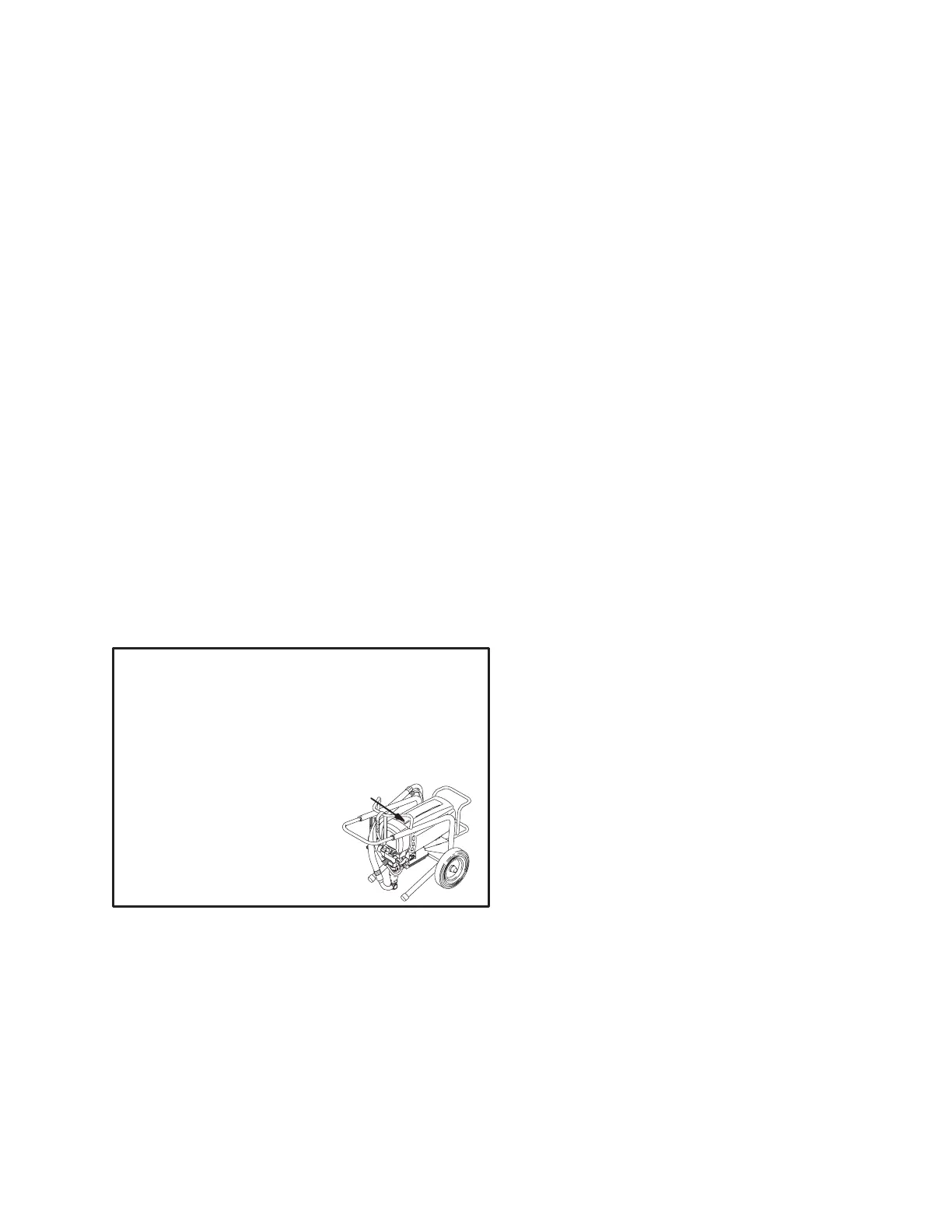

of the following labels to apply to your sprayer. The draw-
ing below shows the best placement of these labels for
good visibility.
Order the labels directly from Graco, free of charge:
1–800–328–0211
French 187784
Spanish 185956
German 185961
Greek 186041
Korean 186045
English 187791
Apply other
language here
7728A
PTFE

Graco ULTRA MAX 695 Specifications

General

Maximum Flow Rate	0.95 GPM
Maximum Operating Pressure	3300 PSI
Hose Length	50 ft
Maximum Pressure	3300 PSI
Power Source	Electric
Material	Stainless Steel
Motor Power	2.0 hp Brushless DC
