Appendix A
80
312359R
Home
screen, on page
77, to
change the ratio by
volume.

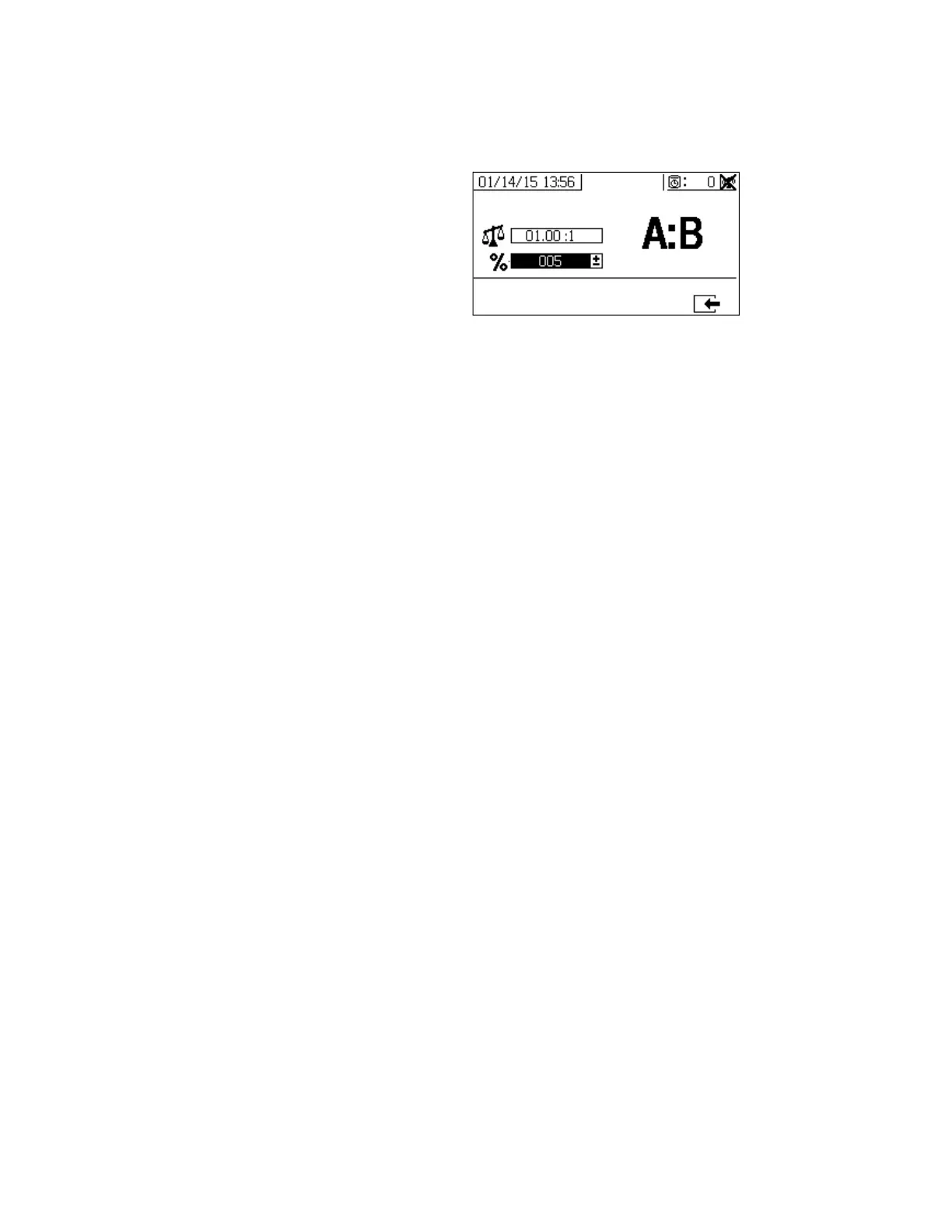

For Ratio by Wei
ght Mode, use this screen to set the
ratio by weight tolerance (bottom num
ber). The ratio by
weight
(top n
umber)
is d
isplayed
but
cann
ot
be
cha
nged
on this screen. Follow
Home
screen, on page
77, to
change the ratio by weight.
79
81
Table of Contents
Table of Contents
2
Related Manuals
3
Warnings
4
Important Isocyanate (ISO) Information
7
Isocyanate Conditions
7
Keep Components a and B Separate
7
Moisture Sensitivity of Isocyanates
8
Changing Materials
8
Models
9
Approvals
11
Overview
15
Usage
15
Location
15
Proper Lifting of Sprayer
16
Initial System Setup
17
Component Identification
18
Typical Setup: 25 Gallon Double Wall Hopper with Recirculation
18
Typical Setup: 25 Gallon Double Wall Hopper with Recirculation (Back and Side Views)
19
Fluid Control Assembly
21
Junction Box
22
Air Controls
23
User Interface
24
Hopper Assembly
25
Setup
27
Grounding
27
Connect Power Source
27
Wiring Diagram
29
Connect Explosion-Proof Heaters
30
Connect Air Supply
30
Connect Fluid Hose Assembly
31
Adjust Packing Nuts
31
Basic Operation
32
Power on
32
Adjust Ratio and Setup
32
View Alarms
32
Set System Settings (Optional)
33
Set Maintenance Parameters (Optional)
34
Set Sprayer Limits (Optional)
35
Prime
36
Prime a and B Fluids
36
Prime Solvent Flush Pump
38
Recirculate
39
With Heat
39
Without Heat
39
Heat Fluid
40
Spray
41
Adjust B Machine Outlet Restriction
42
Pressure Relief Procedure
43
Flush
44
Flush Mixed Manifold, Hose, and Spray Gun
44
Flush Hoppers
45
Empty and Flush Entire System (New Sprayer or End of Job)
48
Park Fluid Pump Rods
50
Shutdown Entire System
50
System Verification
51
MIX and Integration Tests
51
Pump and Metering Test
51
Batch Dispense or Ratio Test
54
Download Data from USB
56
USB Logs
56
Download Setup
56
Download Procedure
56
Maintenance
58
Filters
58
Seals
58
Cleaning Procedure
58
Hopper
59
Feed Pumps
60
Agitators
60
XM Setup and Tips
61
LED Diagnostic Information
62
Troubleshooting
63
Accessories and Kits
73
User Interface Display
75
Change a Setting
75
Setup Mode Screens
76
Operator Command Mode Screens
84
Automatically Displayed Screens
92
Metering Diagrams
93
Power Cord Guidelines
95
Dimensions
96
XM System Dimensions Without Hoppers
96
(Non-Hazardous Locations)
96
XM System Dimensions Without Hoppers (Hazardous Locations)
97
10-Gallon Rear Mount Steel Tank
98
25-Gallon Rear Mount Steel Tank
99
System Dimensions with Hoppers
100
System Dimensions with Hoppers
101
Pump Performance Charts
102
Technical Specifications
103
California Proposition 65
105
Graco Standard Warranty
106
