Graco XM Series User Manual

Appendix A
312359R 81

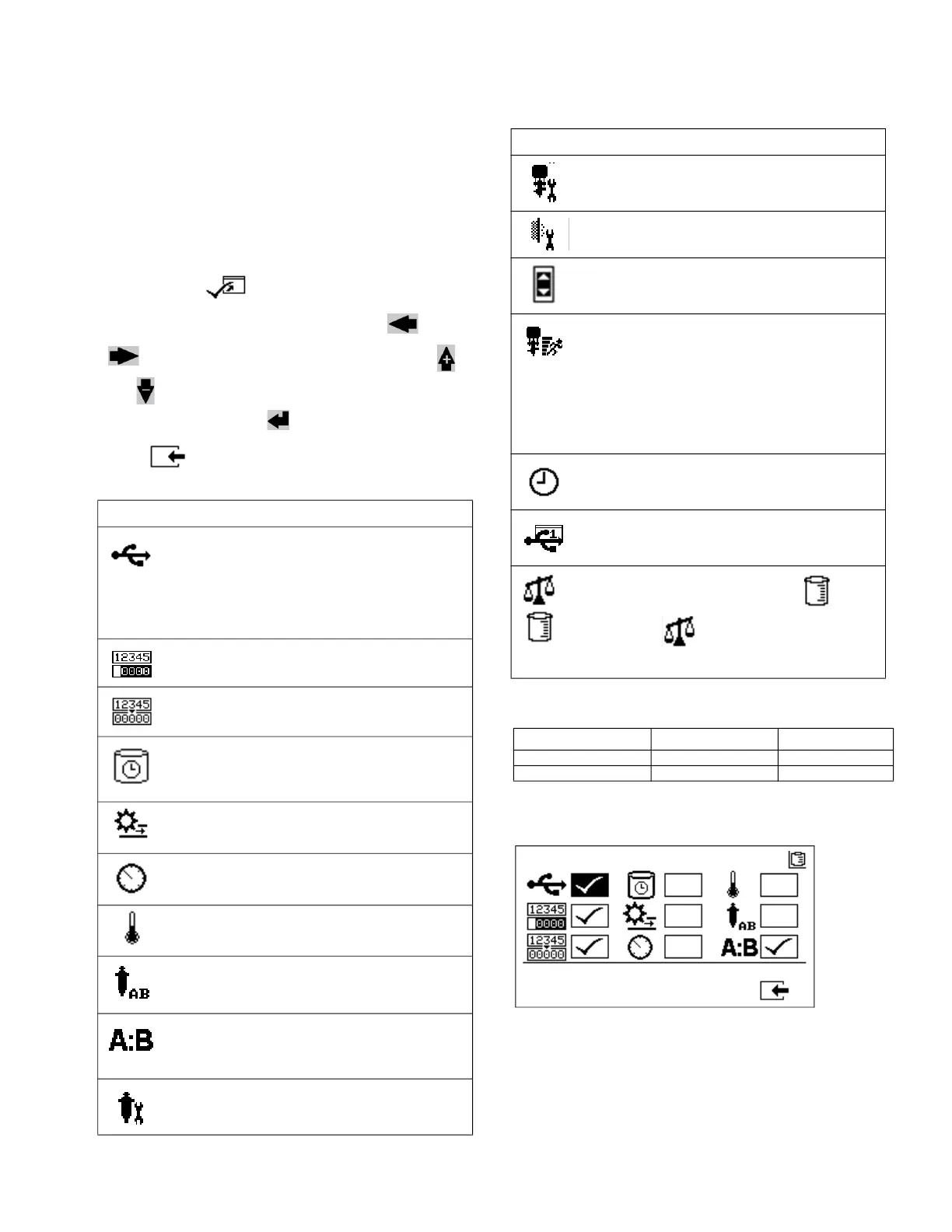

Enable Setup Screens
Enable Setup allows users to enable and disable
functionalities, screens, and USB download log files.
Checked boxes indicate the function, screen, or log file
is active. Refer to the following table for details.
To enable and disable functionalities, screen, and USB
log files, press from the Home Setup screen.
Once in the Enable Setup screen, press and
to scroll through each subscreen. Press
and to scroll through each field within the
subscreens, and press to enable or disable each.
Press to return to the Home Setup screen
Fast Dosing Function
Enable Setup 1
(Shown with factory default settings.)
Icon Function
USB data download function. Disable this
function to prevent operators from
changing USB settings.
Even if this function is disabled, selected
USB logs will still be downloaded.
Enable or disable Totalizer screens.
Enable or disable batch Totalizer clear
function.
Display potlife timer on all screens.
Enable or disable potlife timer setup
screen.
Display flow rates on run screens
Display A and B pressures on run screens.
Display A and B temperatures on run
screens.
Enable or disable ability to change pump
size in system setup screens.
Enable or disable ratio screen. If enabled,
ratio screen will automatically display after
sprayer runs for 10 seconds.
Enable or disable pump maintenance setup
screens.
Icon Function
Enable or disable dosing valve
maintenance setup screen.
Enable or disable incoming air filter
maintenance setup screen.
Enable or disable limits (pressure and
temperature) screens.
Fast dosing function. Enable function to
minimize B side dose size and increase
dosing rate. See table below.
Use this function with short integration
hose. The system will attempt to hold the
dosing sizes below the advisory level.
Display time on all screens.
Enable or disable USB log files (1-3) to
download.
Selects system ratio by volume or ratio
by weight mode. Only one of these
modes can be enabled at one time.
Fast Dosing Advisory QTAE Alarm QDAE
on 20 cc 30 cc
off 35 cc 45 cc
