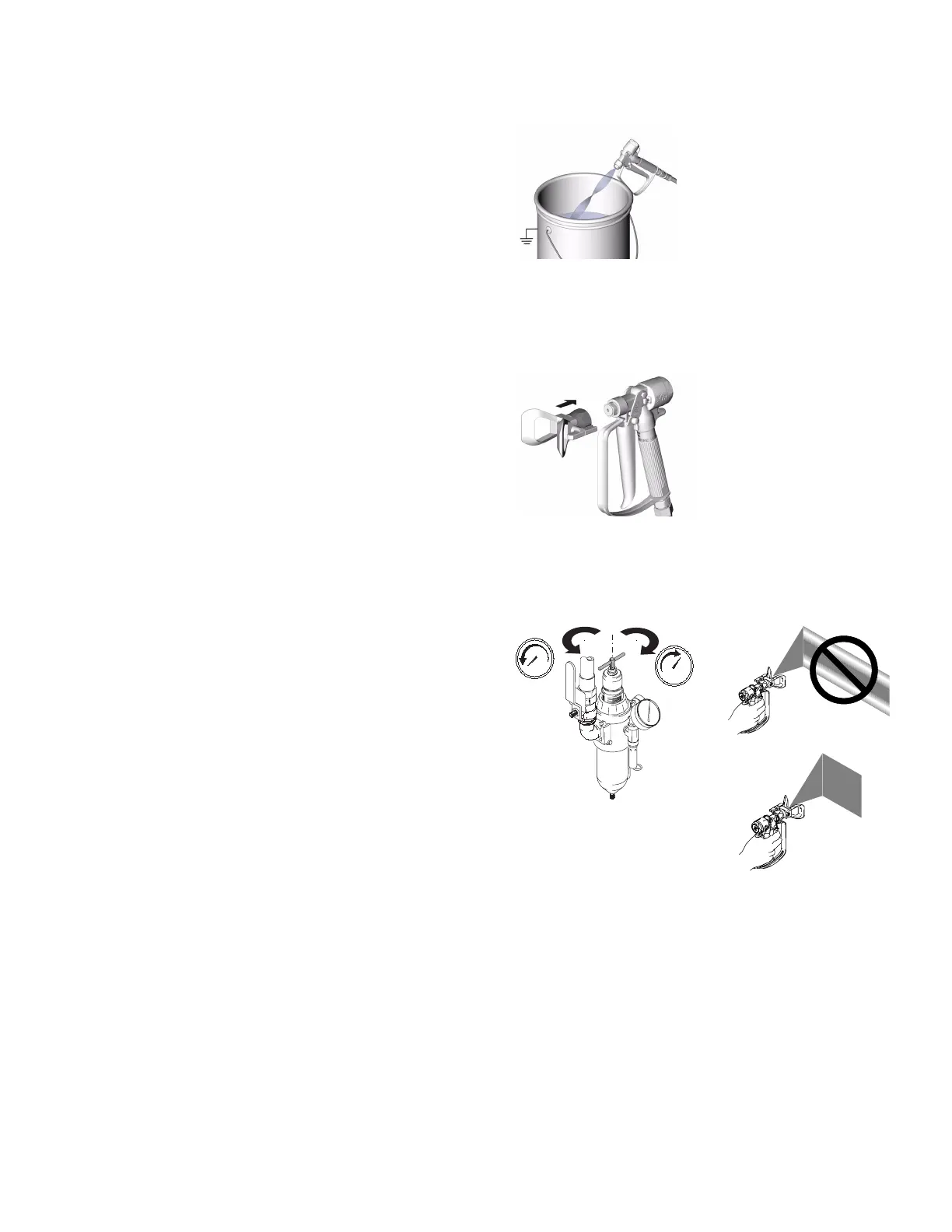

Operating Gun
310743A 13
4. Follow Pressure Relief Procedure, page 10.
TI5047A
5. Install spray tip and tip guard.
TI5047A
6. Start pump and spray onto test paper.
a. Adjust fluid pressure until spray is completely
atomized.
b. If adjusting pressure does not give a good spray
pattern, follow Pressure Relief Procedure, page
10, then try another tip size.
7. Trigger gun full-open or full-close.
