Operating Gun
14 310743A
Adjusting Spray Pattern
Spray Pattern Size
The spray tip orifice and spray angle determine pattern coverage and size. When you need more coverage, use a
larger spray tip rather than increasing fluid pressure.

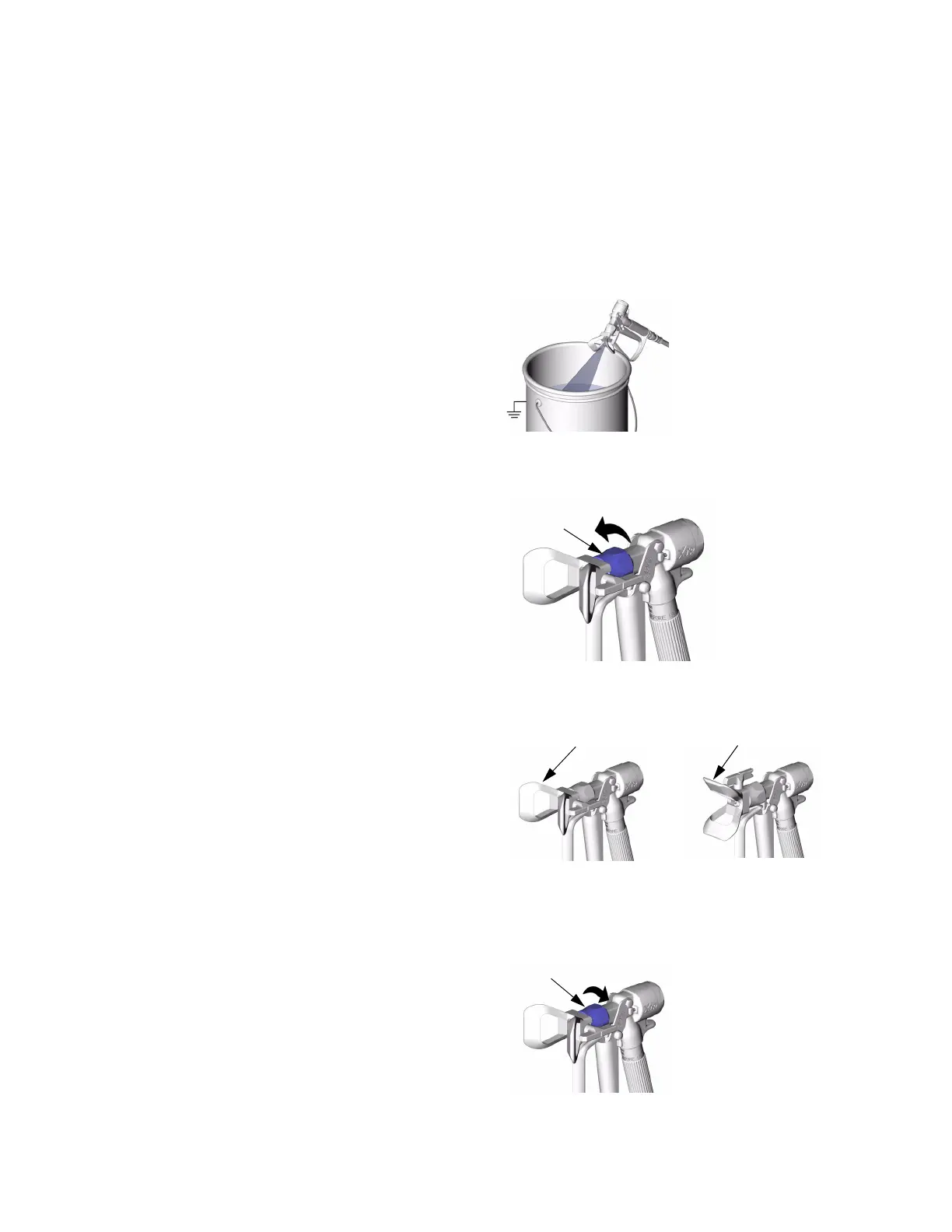

Spray Pattern Direction
1. Follow Pressure Relief Procedure, page 10. Engage trig-
ger lock.
TI5046A
2. Loosen tip guard retaining nut (C).
C
TI5177A
3. For a vertical pattern, turn tip guard to position E. For a
horizontal pattern turn to position D.
E
D
TI5178A
TI5179A
4. Tighten nut (C).
C
TI5180A
