Graco XTR 7 - Important Operational Information; Trigger Lock Mechanism Details

Important
310743A 9
Important

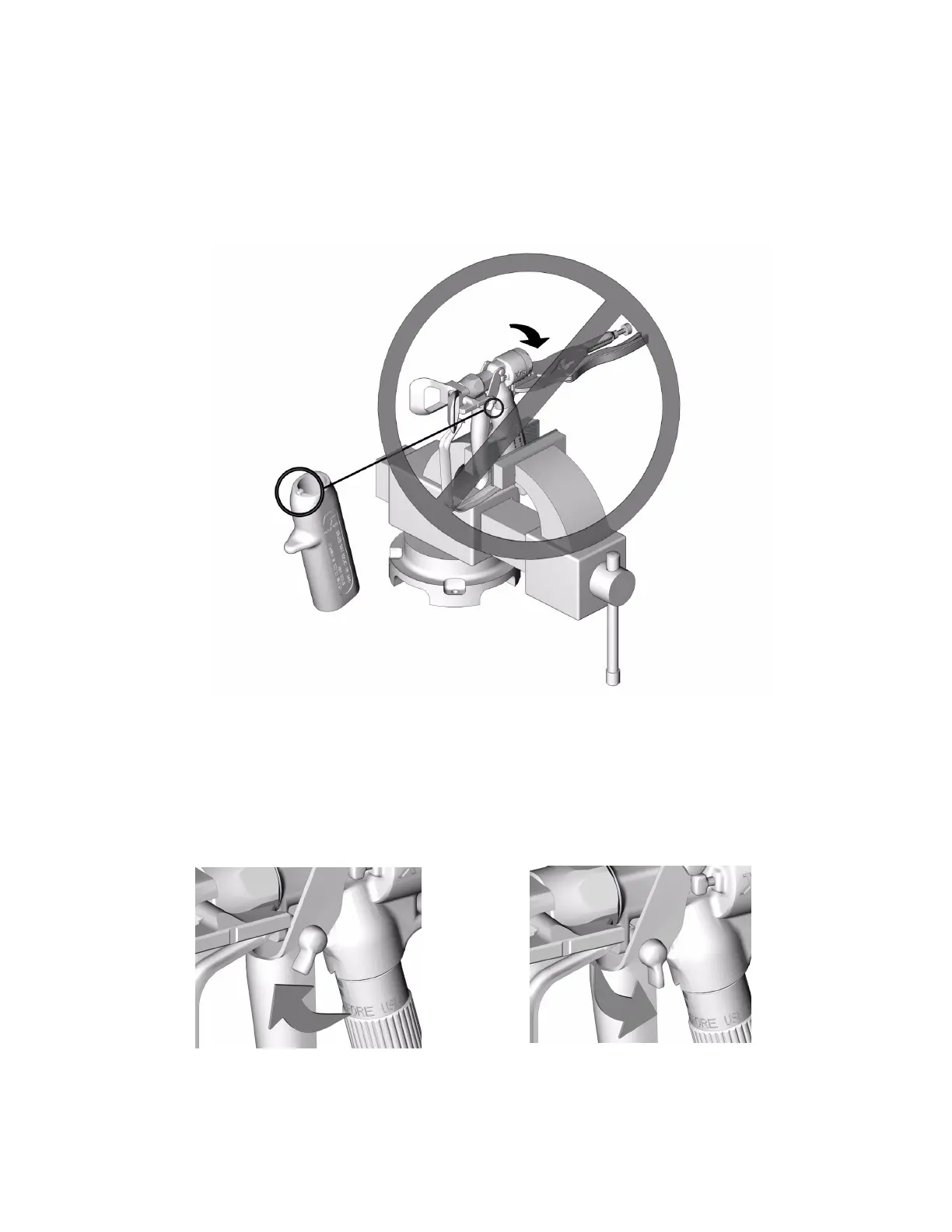

Do not try to unscrew the gun housing from the handle. Do not use a vice grips or place the gun in a vice to separate the
gun handle from the head. Separating the gun head from the handle in this way may damage or break off the alignment
notch on the gun handle.
Trigger Lock Positions
Locked
Unlocked
(Disengaged) (Engaged)
Ti1948A
Ti1949A
