Graco Xtreme XL Series User Manual

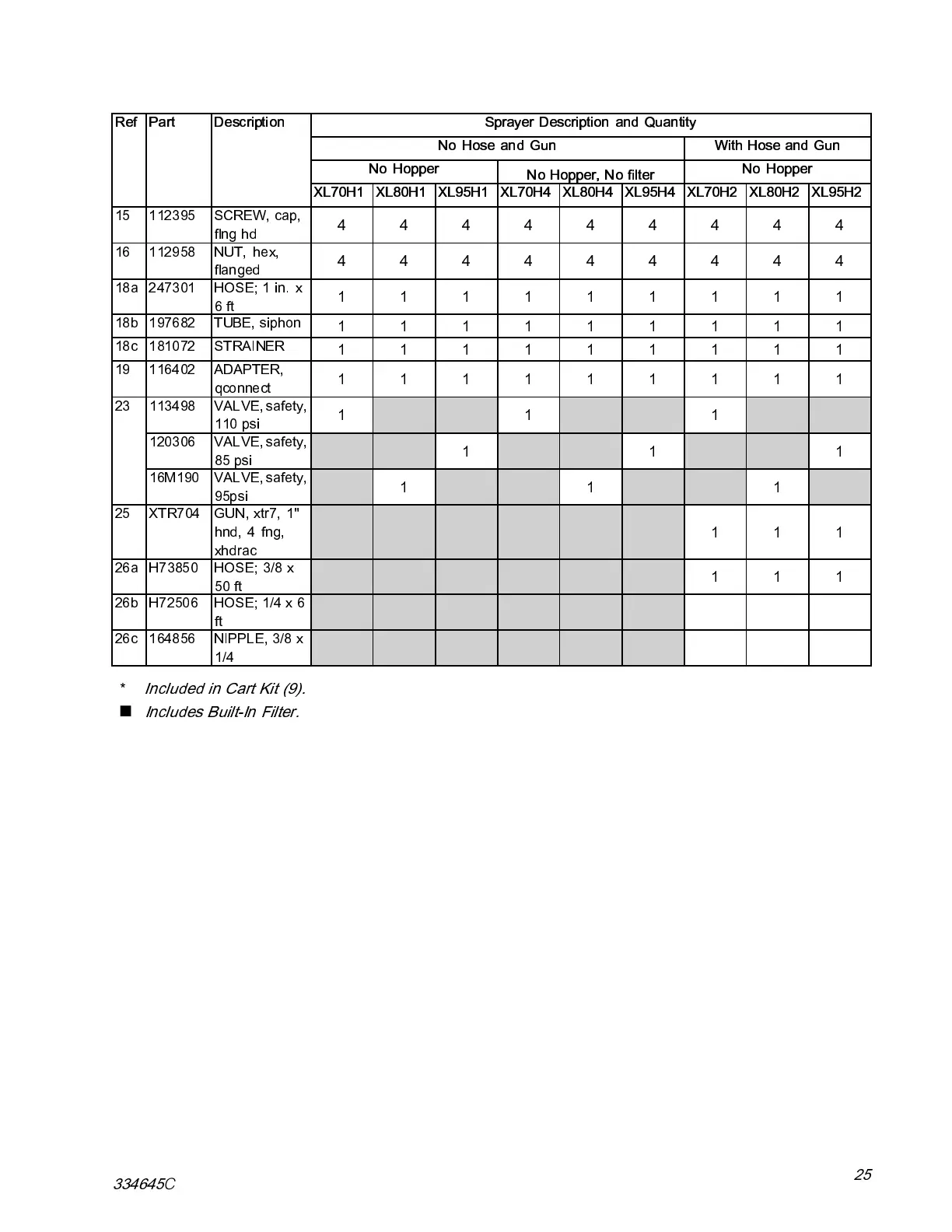

Parts
Sprayer Description and Quantity
No Hose and Gun With Hose and Gun
No Hopper
No Hopper, No filter
No Hopper
Ref Part Description
XL70H1 XL80H1 XL95H1 XL70H4 XL80H4 XL95H4 XL70H2 XL80H2 XL95H2
15 112395 SCREW, cap,
flng hd
444444444
16 112958 NUT, hex,
flanged
444444444
18a 247301 HOSE; 1 in. x
6ft
111111111
18b 197682 TUBE, siphon
111111111
18c 181072 STRAINER
111111111
19 116402 ADAPTER,
qconnect
111111111
113498 VALVE, safety,
110 psi
111
120306 VALVE, safety,
85 psi
111
23
16M190 VALVE, safety,
95psi
111
25 XTR704 GUN, xtr7, 1"
hnd, 4 fng,
xhdrac
111
26a H73850 HOSE; 3/8 x
50 ft
111
26b H72506 HOSE; 1/4 x 6
ft
26c 164856 NIPPLE, 3/8 x
1/4
* Included in Cart Kit (9).

Includes Built-In Filter.
334645 C
25
