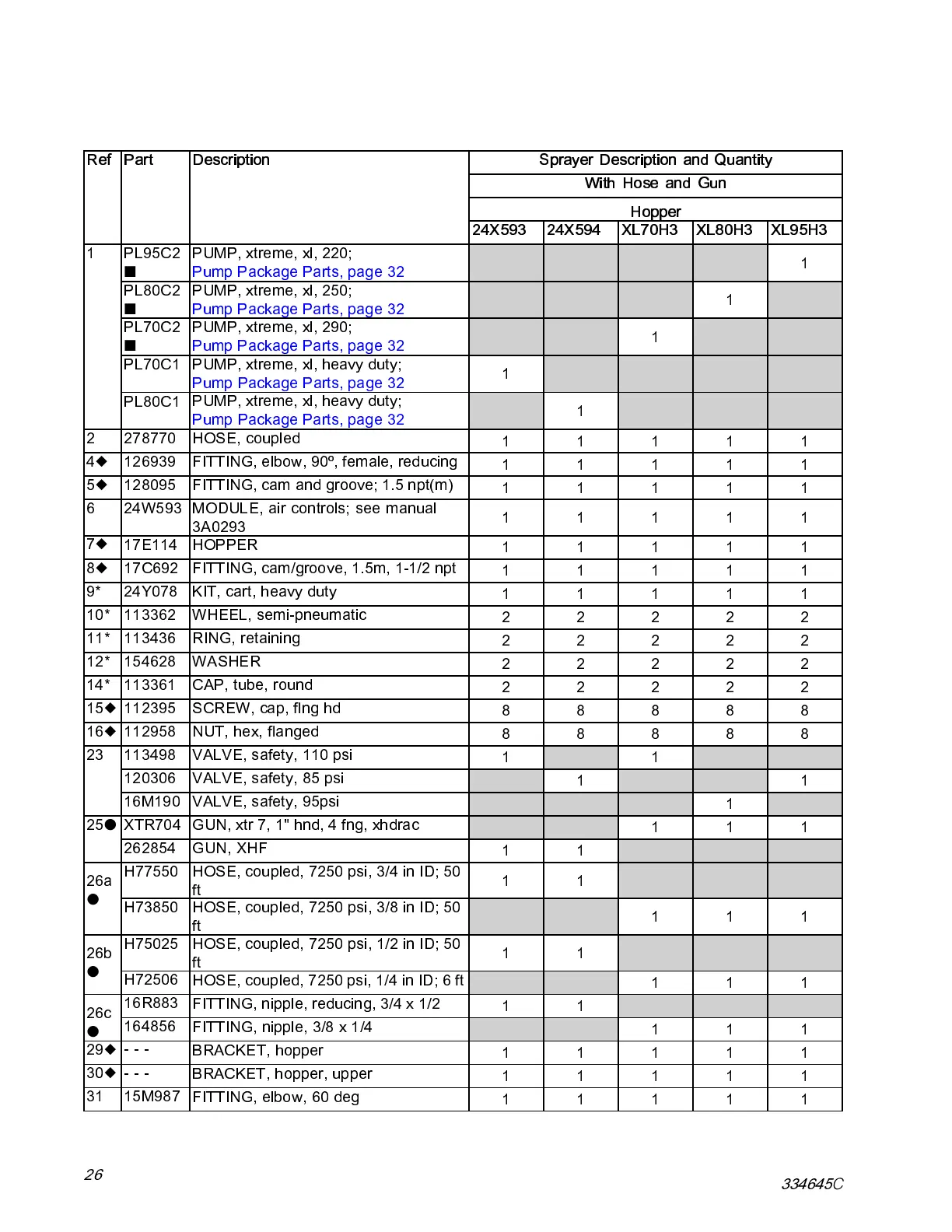

Graco Xtreme XL Series User Manual

Parts
Xtreme Packages With A Hopper
Sprayer Description and Quantity
With Hose and Gun
Hopper
Ref
Part Description
24X593 24X594 XL70H3 XL80H3 XL95H3
PL95C2

PUMP, xtreme, xl, 220;
Pump Package Parts, page 32
1
PL80C2

PUMP, xtreme, xl, 250;
Pump Package Parts, page 32
1
PL70C2

PUMP, xtreme, xl, 290;
Pump Package Parts, page 32
1
PL70C1
PUMP, xtreme, xl, heavy duty;
Pump Package Parts, page 32
1
1
PL80C1
PUMP, xtreme, xl, heavy duty;
Pump Package Parts, page 32
1
2278770
HOSE, coupled
11111
4  126939
FITTING, elbow, 90º, female, reducing
11111
5 
128095
FITTING, cam and groove; 1.5 npt(m)
11111
6 24W593
MODULE, air controls; see manual
3A0293
11111
7 
17E114
HOPPER
11111
8 
17C692 FITTING, cam/groove, 1.5m, 1-1/2 npt
11111
9*
24Y078 KIT, cart, heavy duty
11111
10*
113362 WH EEL, semi-pneumatic
22222
11*
113436
RING, retaining
22222
12*
154628
WASHER
22222
14*
113361
CAP, tube, round
22222
15  112395
SCREW, cap, flng hd
88888
16  112958
NUT, hex, flanged
88888
113498
VALVE, safety, 110 psi
11
120306
VALVE, safety, 85 psi
11
23
16M190
VALVE, safety, 95psi
1
XTR704
GUN, xtr 7, 1" hnd, 4 fng, xhdrac
111
25 
262854
GUN, XHF
11
H77550
HOSE, coupled, 7250 psi, 3/4 in ID; 50
ft
11
26a
●
H73850
HOSE, coupled, 7250 psi, 3/8 in ID; 50
ft
111
H75025 HOSE, coupled, 7250 psi, 1/2 in ID; 50
ft
11
26b
●
H72506
HOSE, coupled, 7250 psi, 1/4 in ID; 6 ft
111
16R883
FITTING, nipple, reducing, 3/4 x 1/2
11
26c
●
164856
FITTING, nipple, 3/8 x 1/4
111
29 
---
BRACKET, hopper
11111
30 
---
BRACKET, hopper, upper
11111
31 15M987
FITTING, elbow, 60 deg
11111
26
334645 C
