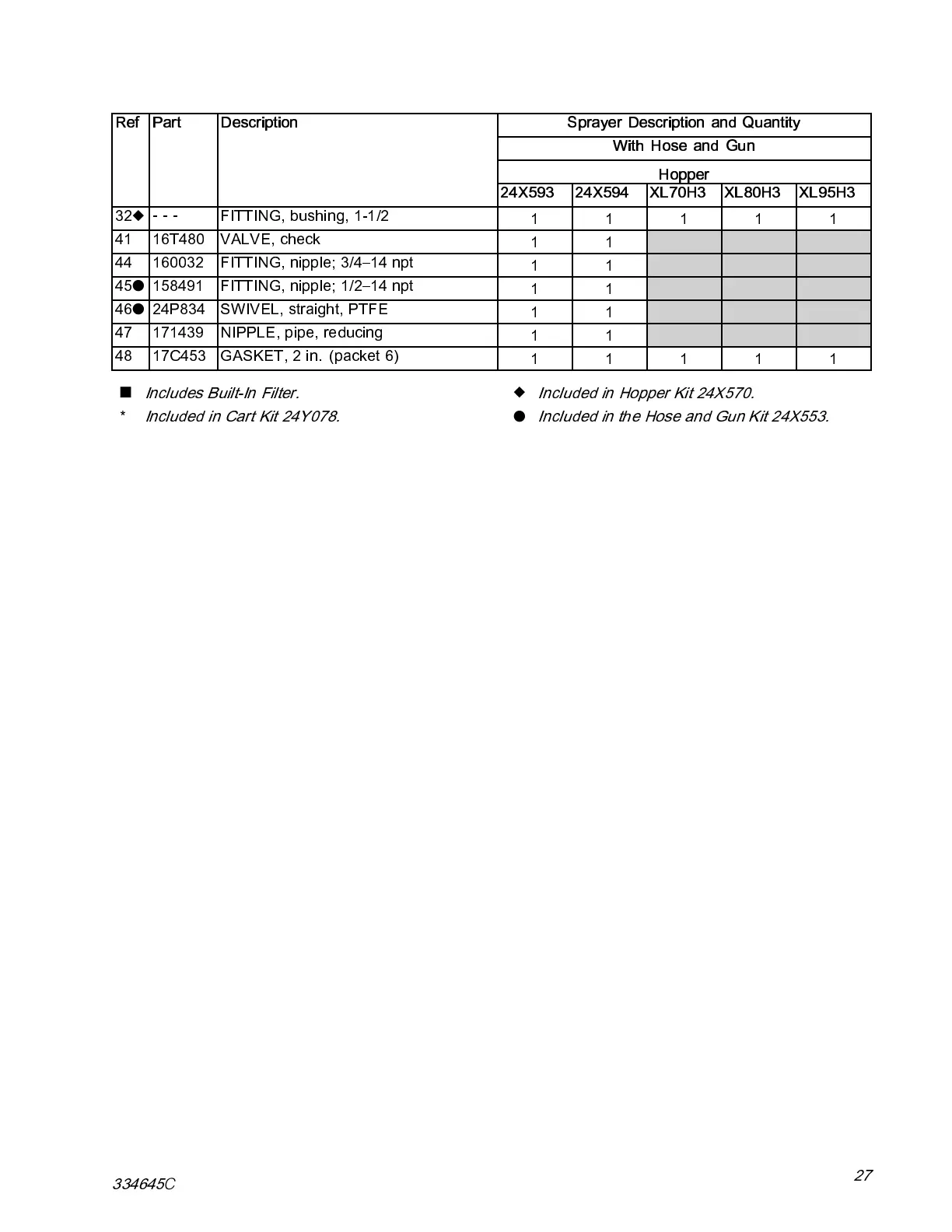

Graco Xtreme XL Series User Manual

Parts
Sprayer Description and Quantity
With Hose and Gun
Hopper
Ref
Part Description
24X593 24X594 XL70H3 XL80H3 XL95H3
32 
---
FITTING, bushing, 1-1/2
11111
41 16T480 VALVE, check
11
44 160032
FITTING, nipple; 3/4–14 npt
11
45  158491
FITTING, nipple; 1/2–14 npt
11
46  24P834
SWIVEL, straight, PTFE
11
47 171439 NIPPLE, pipe, reducing
11
48
17C453 GASKET, 2 in. (packet 6)
11111

Includes Built-In Filter.
* Include d in Cart Ki t 24Y078 .

Included in Hopper Kit 24X570.

Included in the Hose and Gun Kit 24X553.
334645 C
27
