Operation
16

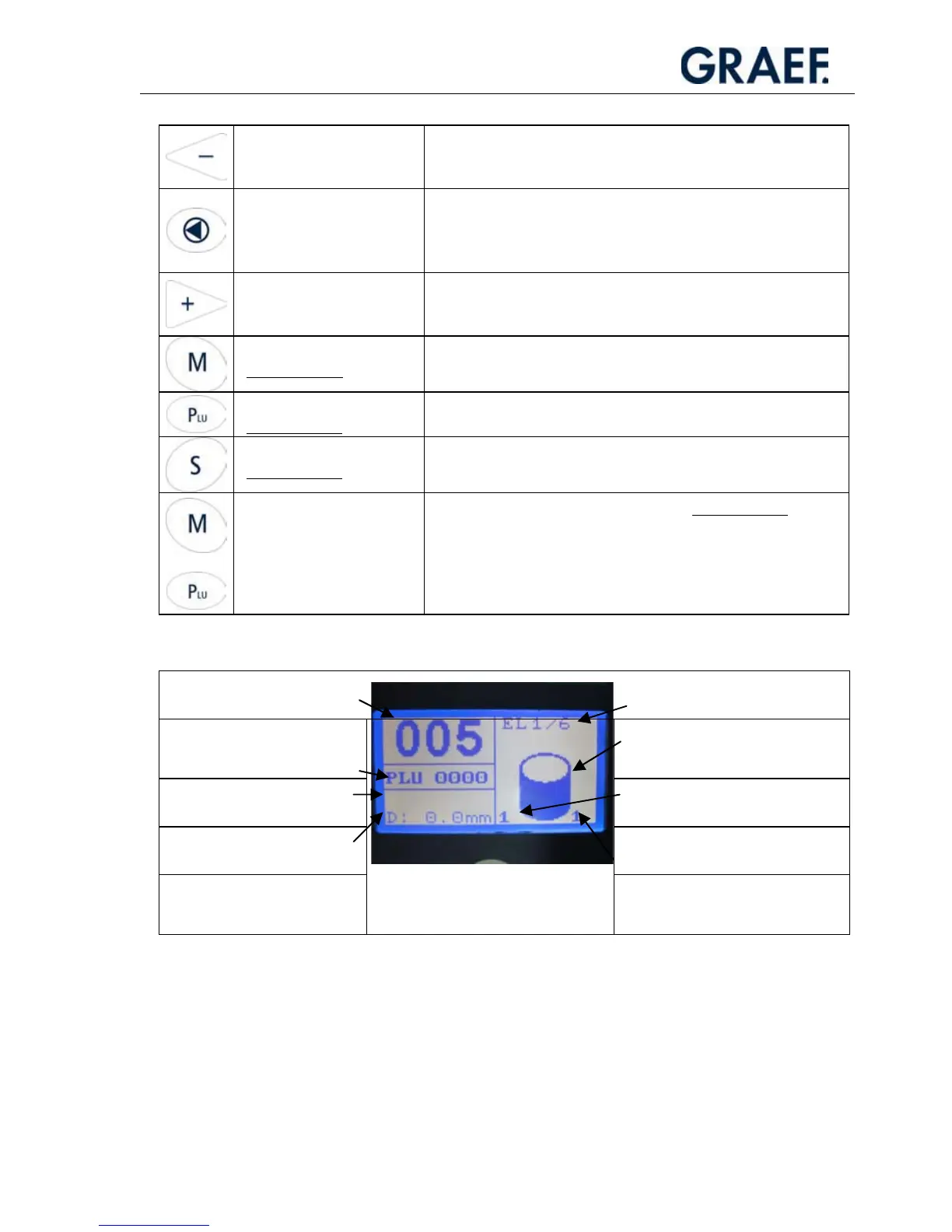

Minus button
x Reduces the edited value.
x Moves UP in the selection menu.
x Reduces the carriage strokes during operation.
Reset button
x Cancels the active cutting program.
x Resets to zero.
x Moves up within the menu hierarchy.
x Confirms an entry.
Plus button
x Increases an edited value.
x Moves down in the selection menu.
x Increases the carriage strokes during operation.
Menu button
( only HA 800)
x Calls subprograms.
PLU button
( only VA 800)
x Switches on PLU mode, the Plus/Minus buttons can then be
used to select the PLUs.
Carriage stroke button
( only VA 800)
x On pressing this button, the carriage speed (lifting speed) can
be controlled using the Plus/Minus buttons.
+
Button combination M +
PLU
x Programs PLUs (new/change/delete).
( only VA 800)
x Changes the standard placing program (PLU 0000).
Explanation of the values and symbols in the display
Slice count Portion specifications in
continuous mode “EL”
(No display in normal mode)
PLU
(0000 = Standard program)
Placing function
(stacking, fanning, ...)
S: Set value slicing thickness
(Display only in PLU mode)
Current value of the stack/row
D: Current slicing thickness
Number of stacks/ rows placed in
one layer
(can be set using the “X” button)
