12. DATA OUTPUT
There are several peripherals that can be attached to the K3X terminal for
output the weighing information using the RS-232 serial output connector.
The different settings on the menu allows to configure the RS232
output.

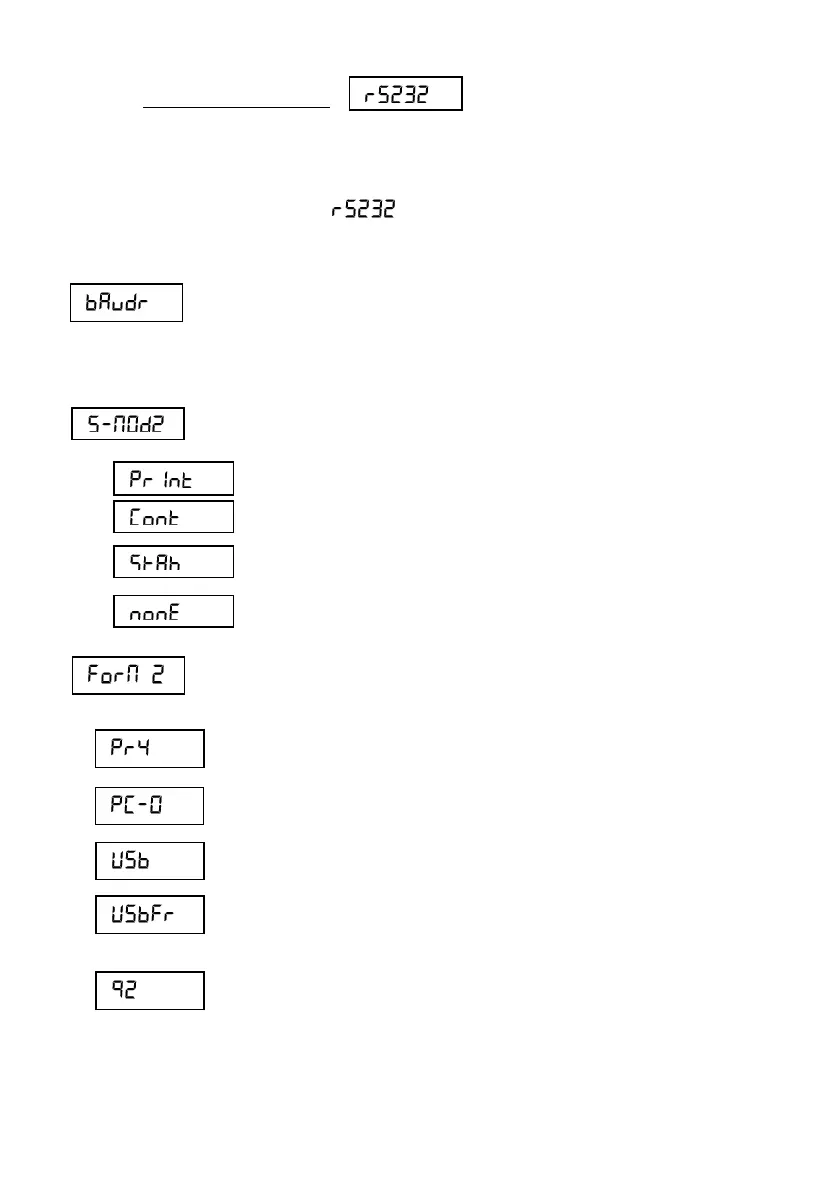

Select the baud rate at which the peripheral will be connected.
The possible options are: 9600 bauds, 19200 bauds, 38400
bauds, o 57600 bauds. The transmission format for each byte
is 8 bits, without parity bit, 1 stop bit (“8,n,1”) and it is not
configurable.
Mode in which the data transmission will be made:
• When pressing the print key.
• Continuously, at a rate of 5 frames sent per second.
• Automatically every time there is a new stable weight
on the scale.
• The serial port is deactivated.
Format of data frame to be transmitted. Select the peripheral
to be connected from the following options.
Connection to model PR4 printer. A ticket is sent in a format
for this printer model.
For connecting to PC with Virtual Key application.
Data in a format for the GRAM USB adapter cable.
Frame data in a format for the GRAM USBFR adapter cable
(emulating “AZERTY” keypad).
Connection to Q2 label printer. A ticket is sent in a format
for this printer model.
