Seat functions and operation
25

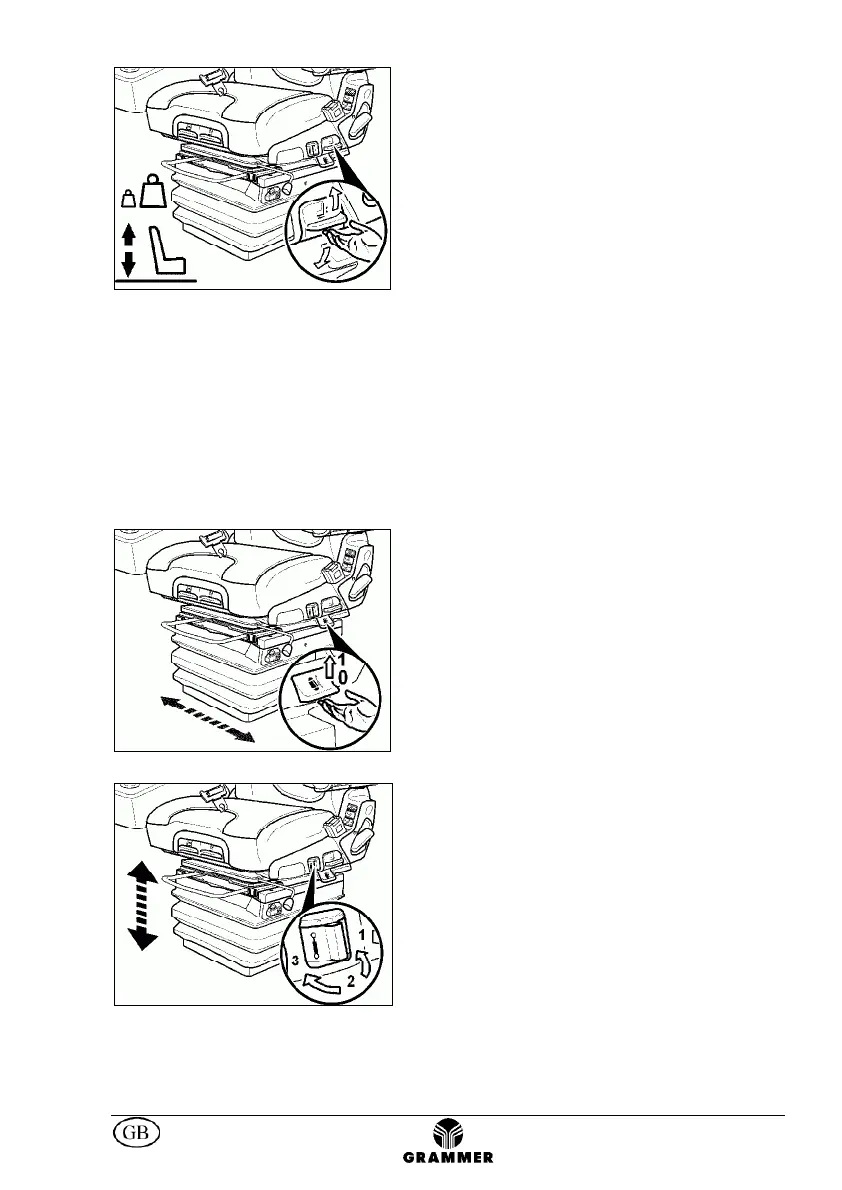

Weight and height adjustment
The seat is adjusted for the driver's weight
automatically when the driver takes place on
the seat. For this reason no additional handling
is required.
The seat height can be set pneumatically and is
continuously adjustable.
Pull or press this handle to move the seat
upwards or downwards. If adjustment reaches
the top or bottom end stop, the height will be
adjusted automatically, so as to ensure a
minimum spring travel.
Release the handle, when the desired height
position or the upper end stop is reached.
In order to avoid compressor damage
during height adjustment or until the upper end
stop is reached, the compressor must be
operated for 1 minute at the maximum.
Lateral isolator
Under certain operating conditions, it is useful
to activate the lateral isolator. This means that
lateral shock impacts can be better absorbed by
the driver's seat.
The cushioning effect can be activated with the
help of this locking lever.
0 lateral isolator OFF
1 lateral isolator ON
Vertical shock absorber
adjustment * **
The vertical absorber setting of the seat can be
varied so as to suit the on and off-road driving
conditions. The cushioning effect can be
individually adjusted for this purpose.
1 soft damping
2 medium damping
3 hard damping
Furthermore, shock absorption can be adjusted
in two additional setting positions between the
respective degrees of absorption.
* if fitted ** depending on model *** optional extra
