Seat functions and operation
29

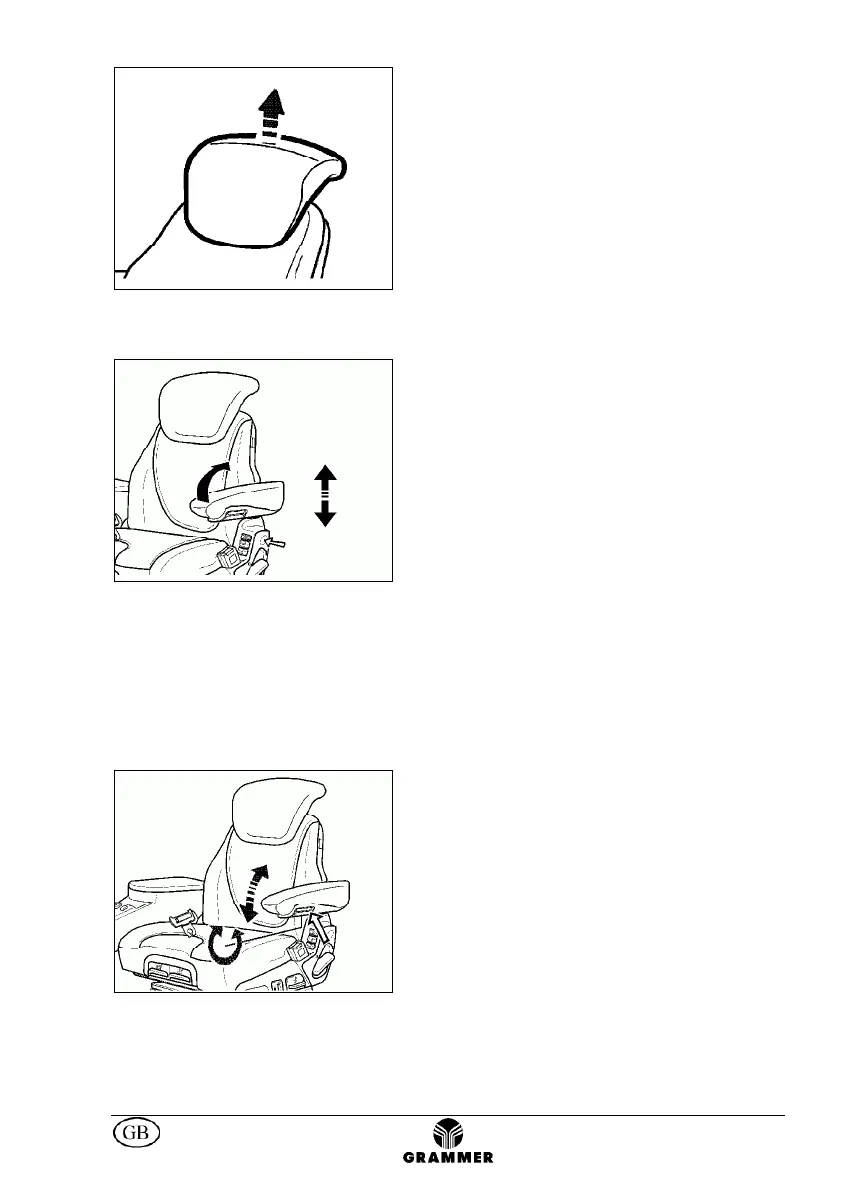

Backrest extension
The backrest extension can be individually
adjusted for height by pulling it upwards over
the various increments up the end stop.
To remove the backrest extension, pull it
upwards over the end stop.
Armrest
The left armrest can be folded backwards and
the height can be individually adjusted, if
required.
To adjust the armrests for height, separate the
round cap (see arrow) from the cover, loosen
the hexagon nut (size 13 mm) behind it. Put the
armrest to the desired position and tighten the
hexagon nut (25 Nm
). Replace the cap onto the
cover.
Do not damage any heating cables when
loosening or tightening the hexagon nut. If
necessary, carefully put aside heating cables
lying in front of the hexagon nut.
Armrest adjustment
The inclination of the armrests can be modified
by turning the adjustment knob.
When turning the knob to the outside (+) the
front part of the armrest will be lifted, when
turning the knob to inside (-) it will be lowered.
* if fitted ** depending on model *** optional extra
