13
Hardware for Rotisserie
Rot. Screw#10-24x3/4"
UNC
Qty. 2
Part # S112G10121
Rot. Thumbscrew
1/4"x1/2"
Qty. 3
Part # S196G04081
Rot. Washer
Qty. 2
Part # S411G03081
Rot. Nut.#10-24
Qty. 2
Part # S362G10121

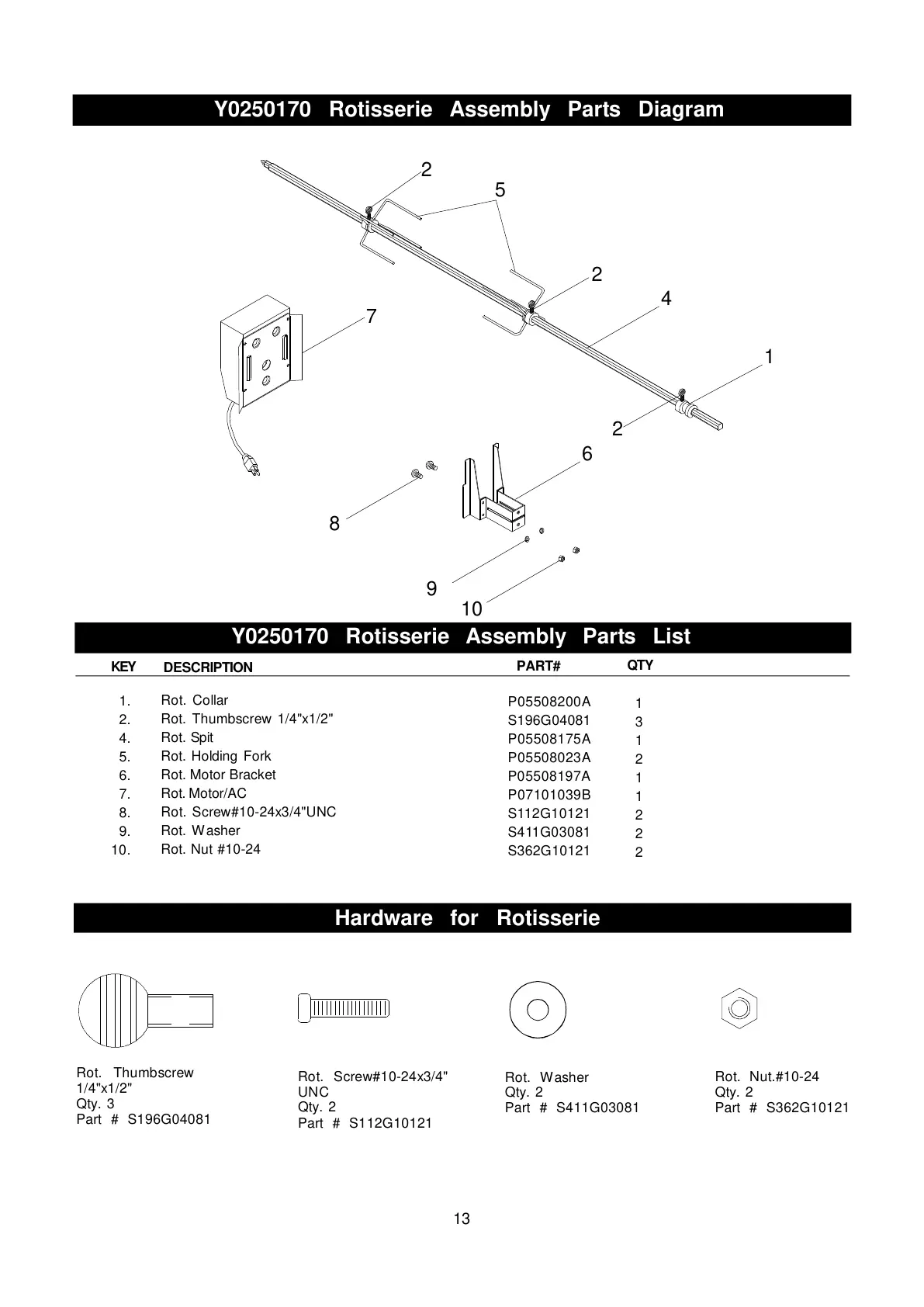

Y0250170 Rotisserie Assembly Parts Diagram
Y0250170 Rotisserie Assembly Parts List
KEY
PART#
DESCRIPTION
QTY
Rot. Collar
Rot. Thumbscrew 1/4"x1/2"
Rot. Spit
Rot. Holding Fork
Rot. Motor Bracket
Rot. Motor/AC
Rot. Screw#10-24x3/4"UNC
Rot. Washer
Rot. Nut #10-24
1
3
1
2
1
1
2
2
2
P05508200A
S196G04081
P05508175A
P05508023A
P05508197A
P07101039B
S112G10121
S411G03081
S362G10121
1.
2.
4.
5.
6.
7.
8.
9.
10.
9
10
6
8
2
7
4
1
2
5
2
