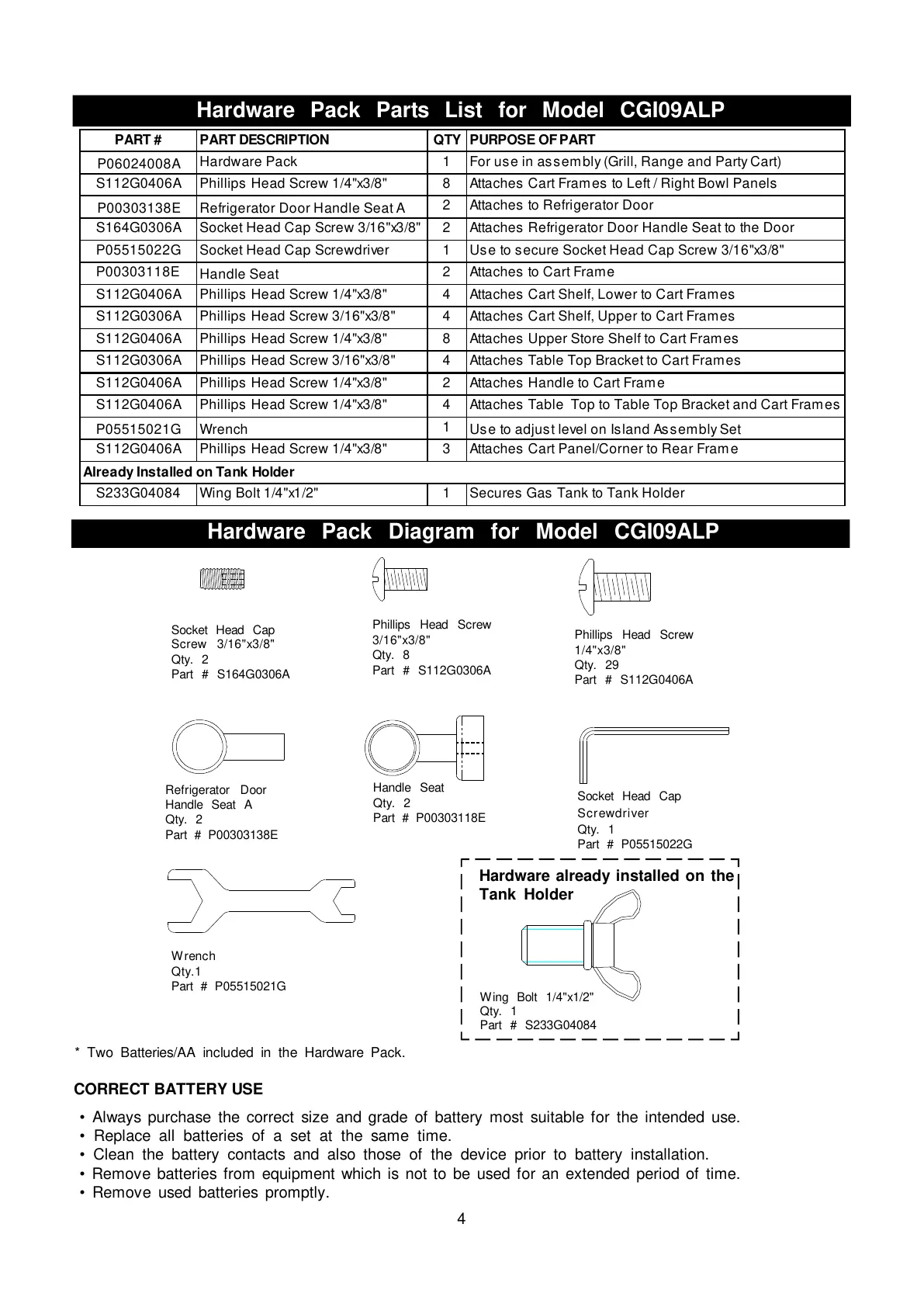

Hardware Pack Parts List for Model CGI09ALP
Hardware Pack Diagram for Model CGI09ALP
* Two Batteries/AA included in the Hardware Pack.
CORRECT BATTERY USE
Wrench
Qty.1
Part # P05515021G
Refrigerator Door
Handle Seat A
Qty. 2
Part # P00303138E
Handle Seat
Qty. 2
Part # P00303118E
Socket Head Cap
Screwdriver
Qty. 1
Part # P05515022G
• Always purchase the correct size and grade of battery most suitable for the intended use.
• Replace all batteries of a set at the same time.
• Clean the battery contacts and also those of the device prior to battery installation.
• Remove batteries from equipment which is not to be used for an extended period of time.
• Remove used batteries promptly.
Phillips Head Screw
1/4"x3/8"
Qty. 29
Part # S112G0406A
Phillips Head Screw
3/16"x3/8"
Qty. 8
Part # S112G0306A
Socket Head Cap
Screw 3/16"x3/8"
Qty. 2
Part # S164G0306A
PART # PART DESCRIPTION QTYPURPOSE OF PART
P06024008A
Hardware Pack 1 For use in assembly (Grill, Range and Party Cart)
S112G0406A Phillips Head Screw 1/4"x3/8" 8 Attaches Cart Frames to Left / Right Bowl Panels
P00303138E Refrigerator Door Handle Seat A
2 Attaches to Refrigerator Door
S164G0306A Socket Head Cap Screw 3/16"x3/8" 2 Attaches Refrigerator Door Handle Seat to the Door
P05515022G Socket Head Cap Screwdriver 1 Use to secure Socket Head Cap Screw 3/16"x3/8"
P00303118E
Handle Seat
2 Attaches to Cart Frame
S112G0406A Phillips Head Screw 1/4"x3/8" 4 Attaches Cart Shelf, Lower to Cart Frames
S112G0306A Phillips Head Screw 3/16"x3/8" 4 Attaches Cart Shelf, Upper to Cart Frames
S112G0406A Phillips Head Screw 1/4"x3/8" 8 Attaches Upper Store Shelf to Cart Frames
S112G0306A Phillips Head Screw 3/16"x3/8" 4 Attaches Table Top Bracket to Cart Frames
S112G0406A Phillips Head Screw 1/4"x3/8" 2 Attaches Handle to Cart Frame
S112G0406A Phillips Head Screw 1/4"x3/8" 4 Attaches Table Top to Table Top Bracket and Cart Frames
P05515021G Wrench
1
Use to adjust level on Island Assembly Set
S112G0406A Phillips Head Screw 1/4"x3/8" 3 Attaches Cart Panel/Corner to Rear Frame
S233G04084 Wing Bolt 1/4"x1/2" 1 Secures Gas Tank to Tank Holder
Already Installed on Tank Holder
Wing Bolt 1/4"x1/2"
Qty. 1
Part # S233G04084
Hardware already installed on the
Tank Holder
