Assembly Instructions

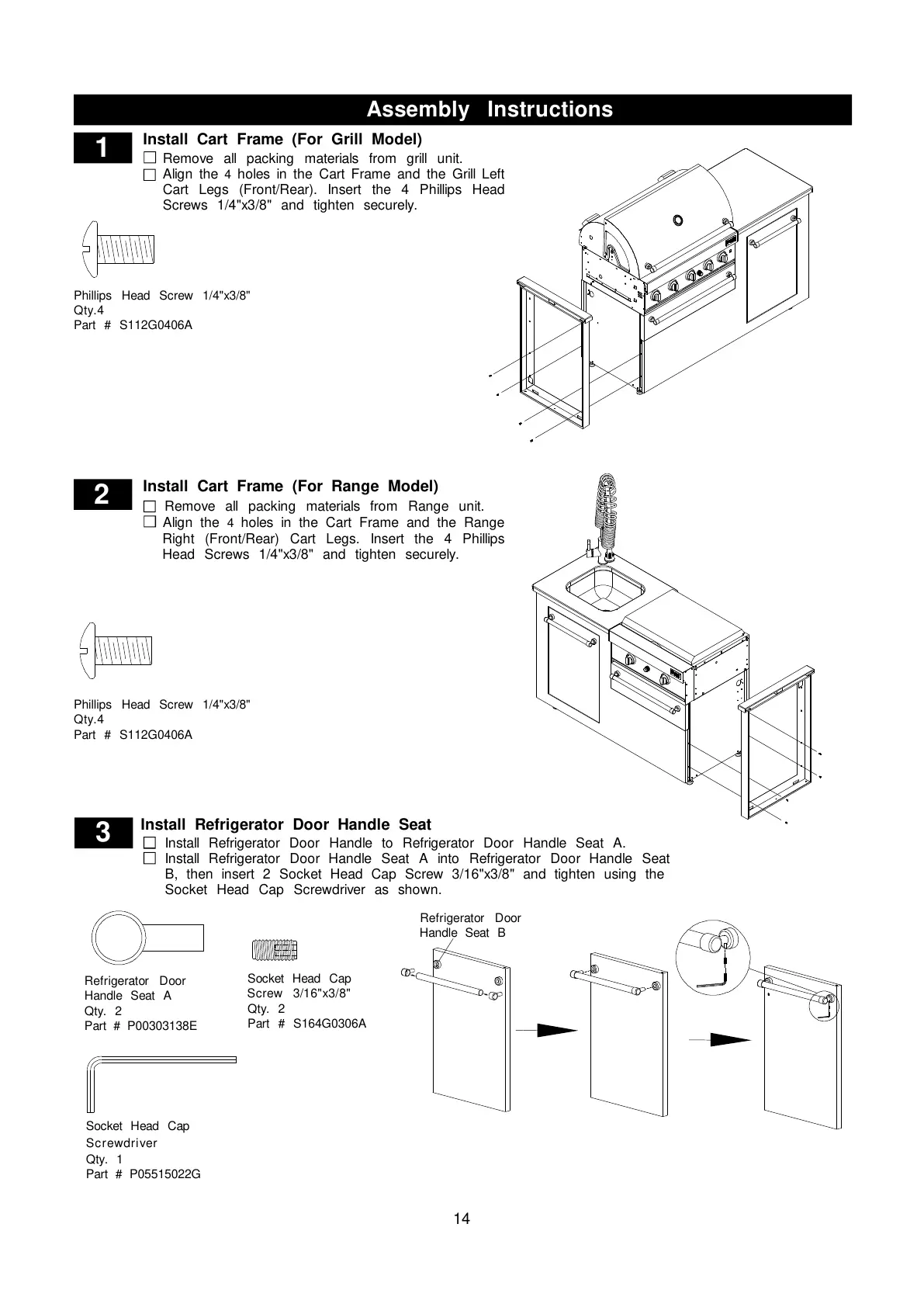

Install Refrigerator Door Handle Seat
3
Install Refrigerator Door Handle to Refrigerator Door Handle Seat A.
Install Refrigerator Door Handle Seat A into Refrigerator Door Handle Seat
B, then insert 2 Socket Head Cap Screw 3/16"x3/8" and tighten using the
Socket Head Cap Screwdriver as shown.
Refrigerator Door
Handle Seat A
Qty. 2
Part # P00303138E
Socket Head Cap
Screw 3/16"x3/8"
Qty. 2
Part # S164G0306A
Socket Head Cap
Screwdriver
Qty. 1
Part # P05515022G
Install Cart Frame (For Grill Model)
Remove all packing materials from grill unit.
Align the 4 holes in the Cart Frame and the Grill Left
Cart Legs (Front/Rear). Insert the 4 Phillips Head
Screws 1/4"x3/8" and tighten securely.
1
Phillips Head Screw 1/4"x3/8"
Qty.4
Part # S112G0406A
Install Cart Frame (For Range Model)
Align the 4 holes in the Cart Frame and the Range
Right (Front/Rear) Cart Legs. Insert the 4 Phillips
Head Screws 1/4"x3/8" and tighten securely.
2
Refrigerator Door
Handle Seat B
Remove all packing materials from Range unit.
Phillips Head Screw 1/4"x3/8"
Qty.4
Part # S112G0406A
To Next Page
