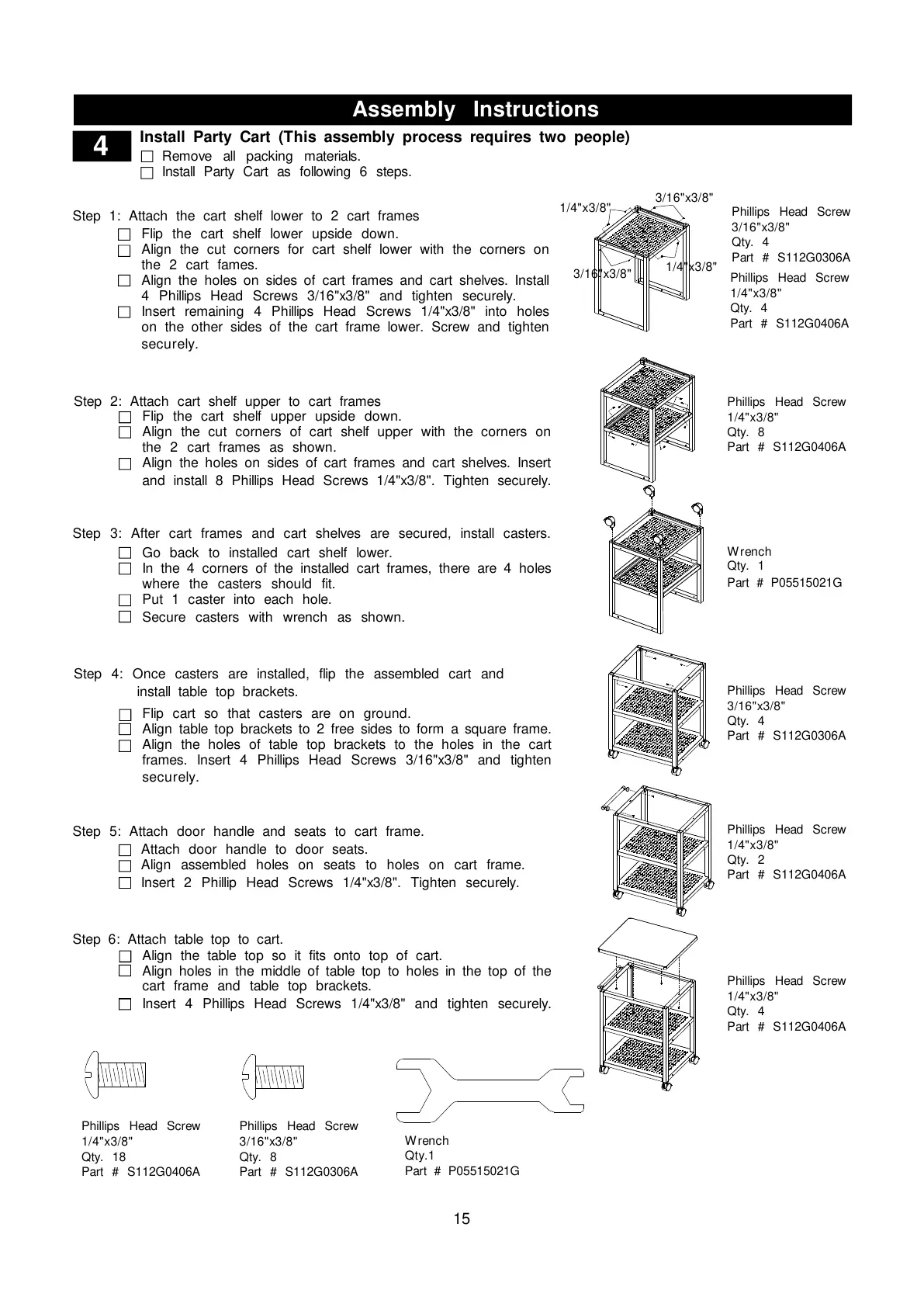

Assembly Instructions
Install Party Cart (This assembly process requires two people)
4
Remove all packing materials.
Install Party Cart as following 6 steps.
1/4"x3/8"
3/16"x3/8"
3/16"x3/8"
1/4"x3/8"
Phillips Head Screw
1/4"x3/8"
Qty. 4
Part # S112G0406A
Phillips Head Screw
3/16"x3/8"
Qty. 4
Part # S112G0306A
Wrench
Qty. 1
Part # P05515021G
Phillips Head Screw
1/4"x3/8"
Qty. 8
Part # S112G0406A
Phillips Head Screw
3/16"x3/8"
Qty. 4
Part # S112G0306A
Phillips Head Screw
1/4"x3/8"
Qty. 2
Part # S112G0406A
Phillips Head Screw
1/4"x3/8"
Qty. 4
Part # S112G0406A
Flip the cart shelf upper upside down.
Align the cut corners of cart shelf upper with the corners on
the 2 cart frames as shown.
Align the holes on sides of cart frames and cart shelves. Insert
and install 8 Phillips Head Screws 1/4"x3/8". Tighten securely.
Step 2: Attach cart shelf upper to cart frames
Go back to installed cart shelf lower.
In the 4 corners of the installed cart frames, there are 4 holes
where the casters should fit.
Put 1 caster into each hole.
Secure casters with wrench as shown.
Step 3: After cart frames and cart shelves are secured, install casters.
Flip cart so that casters are on ground.
Align table top brackets to 2 free sides to form a square frame.
Align the holes of table top brackets to the holes in the cart
frames. Insert 4 Phillips Head Screws 3/16"x3/8" and tighten
securely.
Step 4: Once casters are installed, flip the assembled cart and
install table top brackets.
Attach door handle to door seats.
Align assembled holes on seats to holes on cart frame.
Insert 2 Phillip Head Screws 1/4"x3/8". Tighten securely.
Step 5: Attach door handle and seats to cart frame.
Align the table top so it fits onto top of cart.
Align holes in the middle of table top to holes in the top of the
cart frame and table top brackets.
Insert 4 Phillips Head Screws 1/4"x3/8" and tighten securely.
Step 6: Attach table top to cart.
Flip the cart shelf lower upside down.
Align the cut corners for cart shelf lower with the corners on
the 2 cart fames.
Align the holes on sides of cart frames and cart shelves. Install
4 Phillips Head Screws 3/16"x3/8" and tighten securely.
Insert remaining 4 Phillips Head Screws 1/4"x3/8" into holes
on the other sides of the cart frame lower. Screw and tighten
securely.
Step 1: Attach the cart shelf lower to 2 cart frames
Phillips Head Screw
1/4"x3/8"
Qty. 18
Part # S112G0406A
Phillips Head Screw
3/16"x3/8"
Qty. 8
Part # S112G0306A
Wrench
Qty.1
Part # P05515021G
