16

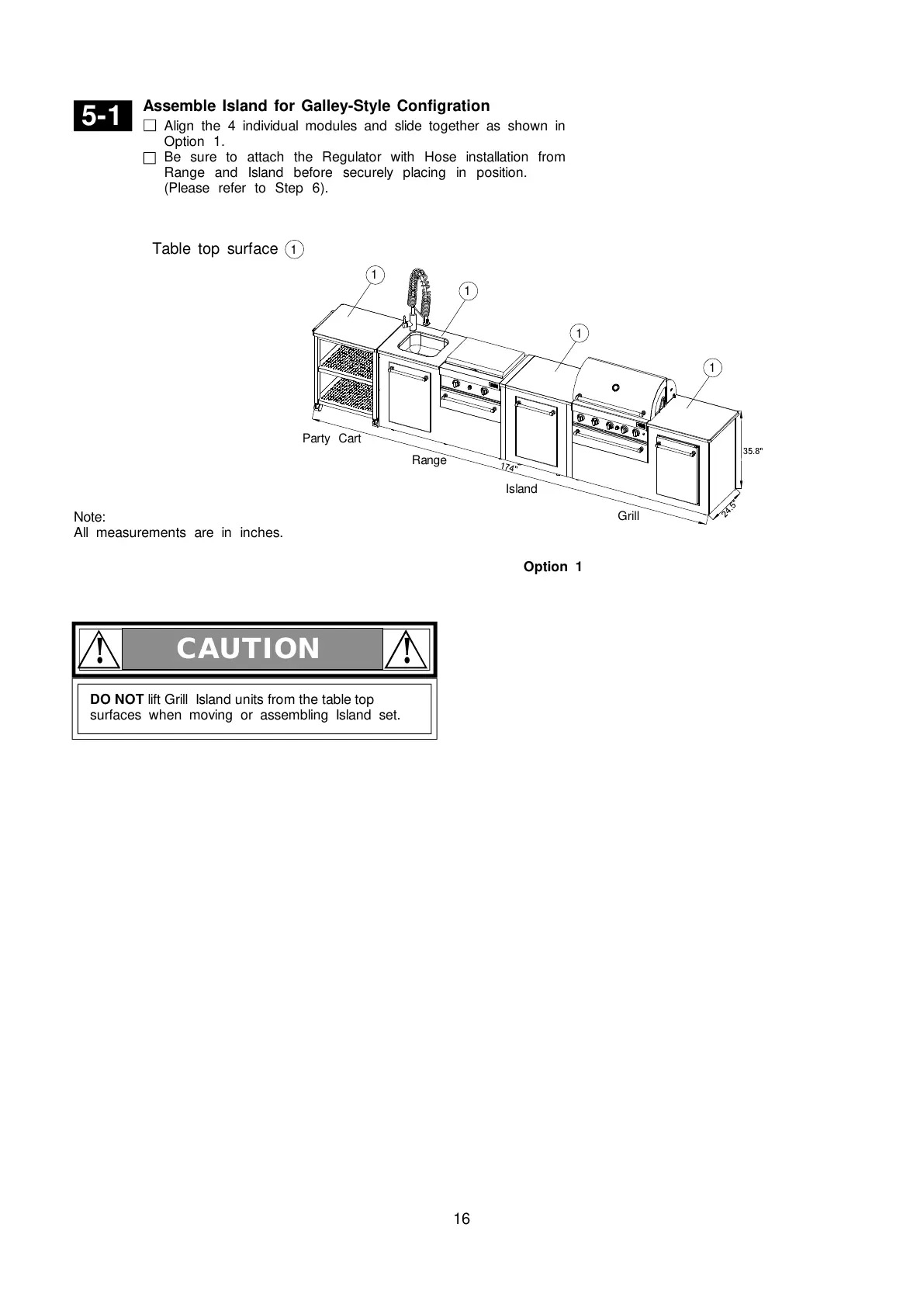

Assemble Island for Galley-Style Configration
Align the 4 individual modules and slide together as shown in
Option 1.
Be sure to attach the Regulator with Hose installation from
Range and Island before securely placing in position.
(Please refer to Step 6).
5-1
Note:
All measurements are in inches.
Table top surface 1
Option 1
Grill
Range
Island
1
1
1
1
Party Cart
DO NOT lift Grill Island units from the table top
surfaces when moving or assembling Island set.
CAUTION
! !
To Next Page
