17
Assembly Instructions
Note:
All measurements are in inches.
Door
Corner Bracket
Fig. 3
Fig. 4
Range
Island
Grill
Use your grill at least 3 feet away from any wall
or surface.
Do not obstruct the flow of air for combustion and ven-
tilation.
CAUTION
! !
Rear Panel
Left Panel
Option 2
Fig. 1
Range
Grill
Island
Left Panel
Cart Panel, Corner
Rear Panel
Fig. 2
Door
Cart Panel, Corner/Stone
Party Cart
Party Cart

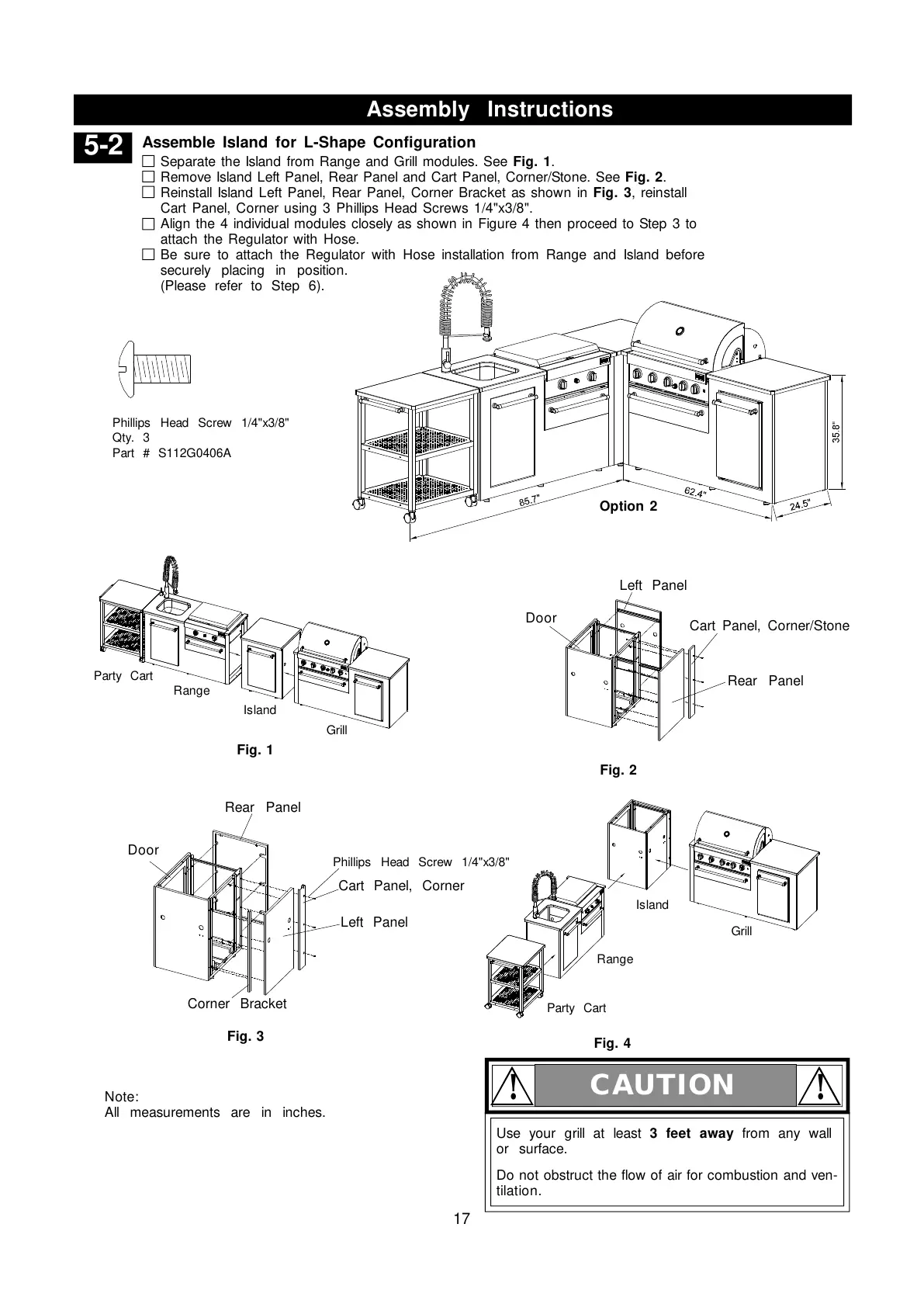

Assemble Island for L-Shape Configuration
5-2
Separate the Island from Range and Grill modules. See Fig. 1.
Remove Island Left Panel, Rear Panel and Cart Panel, Corner/Stone. See Fig. 2.
Reinstall Island Left Panel, Rear Panel, Corner Bracket as shown in Fig. 3, reinstall
Cart Panel, Corner using 3 Phillips Head Screws 1/4"x3/8".
Align the 4 individual modules closely as shown in Figure 4 then proceed to Step 3 to
attach the Regulator with Hose.
Be sure to attach the Regulator with Hose installation from Range and Island before
securely placing in position.
(Please refer to Step 6).
Phillips Head Screw 1/4"x3/8"
Qty. 3
Part # S112G0406A
Phillips Head Screw 1/4"x3/8"
To Next Page
