27

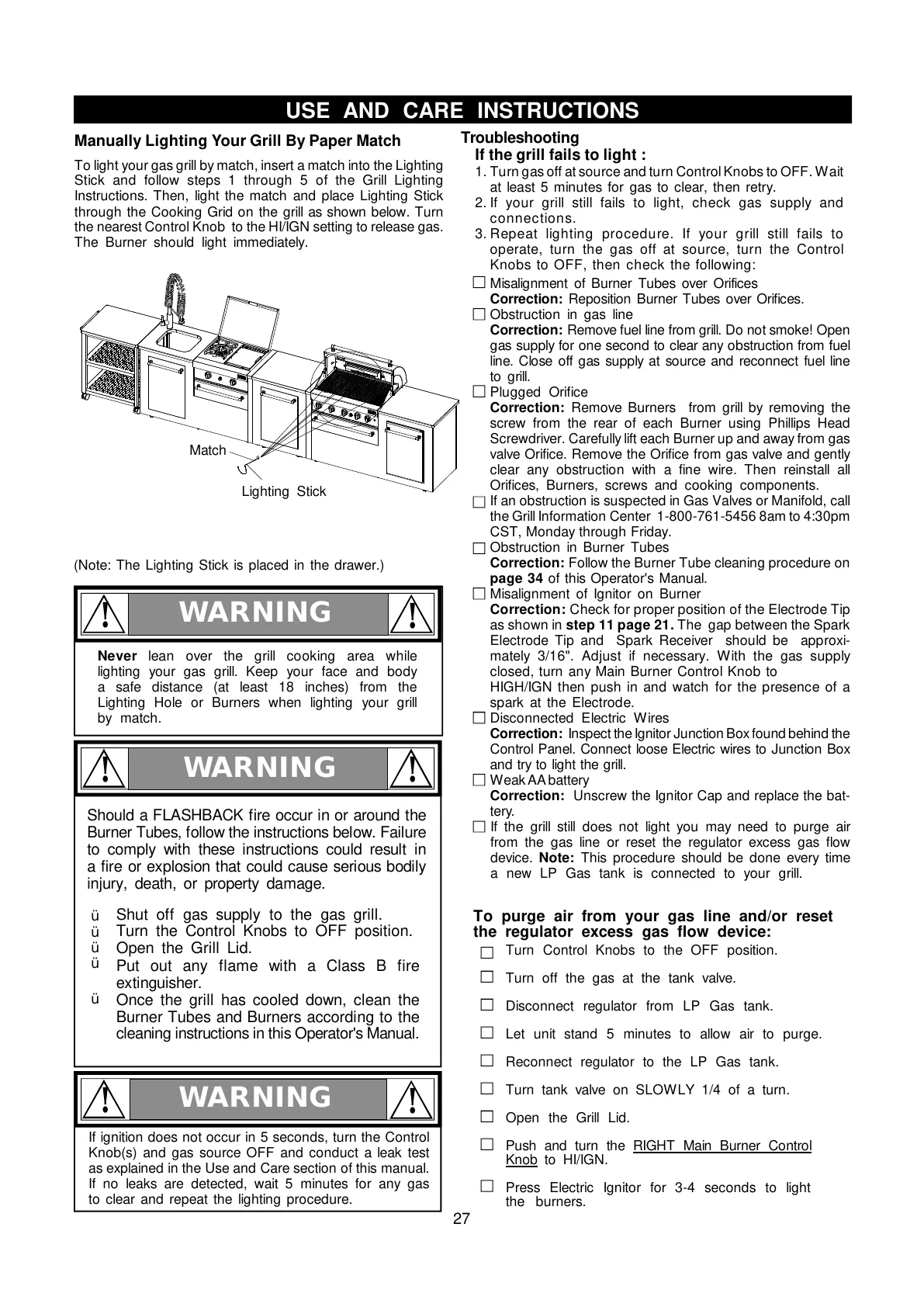

USE AND CARE INSTRUCTIONS
Never lean over the grill cooking area while
lighting your gas grill. Keep your face and body
a safe distance (at least 18 inches) from the
Lighting Hole or Burners when lighting your grill
by match.
WARNING
!
!
Match
Lighting Stick
Troubleshooting
To purge air from your gas line and/or reset
the regulator excess gas flow device:
If the grill fails to light :
WARNING
Misalignment of Burner Tubes over Orifices
Correction: Reposition Burner Tubes over Orifices.
Obstruction in gas line
Correction: Remove fuel line from grill. Do not smoke! Open
gas supply for one second to clear any obstruction from fuel
line. Close off gas supply at source and reconnect fuel line
to grill.
Plugged Orifice
Correction: Remove Burners from grill by removing the
screw from the rear of each Burner using Phillips Head
Screwdriver. Carefully lift each Burner up and away from gas
valve Orifice. Remove the Orifice from gas valve and gently
clear any obstruction with a fine wire. Then reinstall all
Orifices, Burners, screws and cooking components.
If an obstruction is suspected in Gas Valves or Manifold, call
the Grill Information Center 1-800-761-5456 8am to 4:30pm
CST, Monday through Friday.
Obstruction in Burner Tubes
Correction: Follow the Burner Tube cleaning procedure on
page 34 of this Operator's Manual.
Misalignment of Ignitor on Burner
Correction: Check for proper position of the Electrode Tip
as shown in step 11 page 21. The gap between the Spark
Electrode Tip and Spark Receiver should be approxi-
mately 3/16". Adjust if necessary. With the gas supply
closed, turn any Main Burner Control Knob to
HIGH/IGN then push in and watch for the presence of a
spark at the Electrode.
Disconnected Electric Wires
Correction: Inspect the Ignitor Junction Box found behind the
Control Panel. Connect loose Electric wires to Junction Box
and try to light the grill.
Weak AA battery
Correction: Unscrew the Ignitor Cap and replace the bat-
tery.
If the grill still does not light you may need to purge air
from the gas line or reset the regulator excess gas flow
device. Note: This procedure should be done every time
a new LP Gas tank is connected to your grill.
Turn gas off at source and turn Control Knobs to OFF. Wait
at least 5 minutes for gas to clear, then retry.
If your grill still fails to light, check gas supply and
connections.
Repeat lighting procedure. If your grill still fails to
operate, turn the gas off at source, turn the Control
Knobs to OFF, then check the following:
1.
2.
3.
Turn Control Knobs to the OFF position.
Turn off the gas at the tank valve.
Disconnect regulator from LP Gas tank.
Let unit stand 5 minutes to allow air to purge.
Reconnect regulator to the LP Gas tank.
Turn tank valve on SLOWLY 1/4 of a turn.
Open the Grill Lid.
Push and turn the RIGHT Main Burner Control
Knob to HI/IGN.
Press Electric Ignitor for 3-4 seconds to light
the burners.
(Note: The Lighting Stick is placed in the drawer.)
If ignition does not occur in 5 seconds, turn the Control
Knob(s) and gas source OFF and conduct a leak test
as explained in the Use and Care section of this manual.
If no leaks are detected, wait 5 minutes for any gas
to clear and repeat the lighting procedure.
WARNING
!
!
WARNING
!!
Should a FLASHBACK fire occur in or around the
Burner Tubes, follow the instructions below. Failure
to comply with these instructions could result in
a fire or explosion that could cause serious bodily
injury, death, or property damage.
Shut off gas supply to the gas grill.
Turn the Control Knobs to OFF position.
Open the Grill Lid.
Put out any flame with a Class B fire
extinguisher.
Once the grill has cooled down, clean the
Burner Tubes and Burners according to the
cleaning instructions in this Operator's Manual.
Ÿ
Ÿ
Ÿ
Ÿ
Ÿ
Manually Lighting Your Grill By Paper Match
To light your gas grill by match, insert a match into the Lighting
Stick and follow steps 1 through 5 of the Grill Lighting
Instructions. Then, light the match and place Lighting Stick
through the Cooking Grid on the grill as shown below. Turn
the nearest Control Knob to the HI/IGN setting to release gas.
The Burner should light immediately.
