1.
Remove all components from the carton.
Attach the Motor Bracket on the outside of the right grill bowl panel. Align the two holes of the
Bracket with the holes on the grill bowl. Tighten securely using two Screws #10-24x3/4" UNC, Plain
Washers and Nuts provided.
2.
Slide a Holding Fork onto each end of the Rotisserie Spit. Adjust spacing between Holding Forks to
accommodate your food, then tighten the Thumbscrews to keep the Holding Forks in position. Slide
the Collar onto the threaded end of the Spit. Do not tighten the Collar Thumbscrew until the Rotisserie
is placed into your grill.
3.
Rot.Thumbscrew 1/4"x1/2" x3
Rot. Screw #10-24x3/4" UNC x2
Rot. Washer x2
Rot. Nut #10-24 x2
Outside of Left Lid Panel
Washer
#10-24 Nut
Motor Bracket
Rot. Screw #10-24x3/4" UNC
with washer and nuts
Thumbscrew
1/4"x1/2"
Collar
Holding Forks
Spit
Thumbscrew
1/4"x1/2"

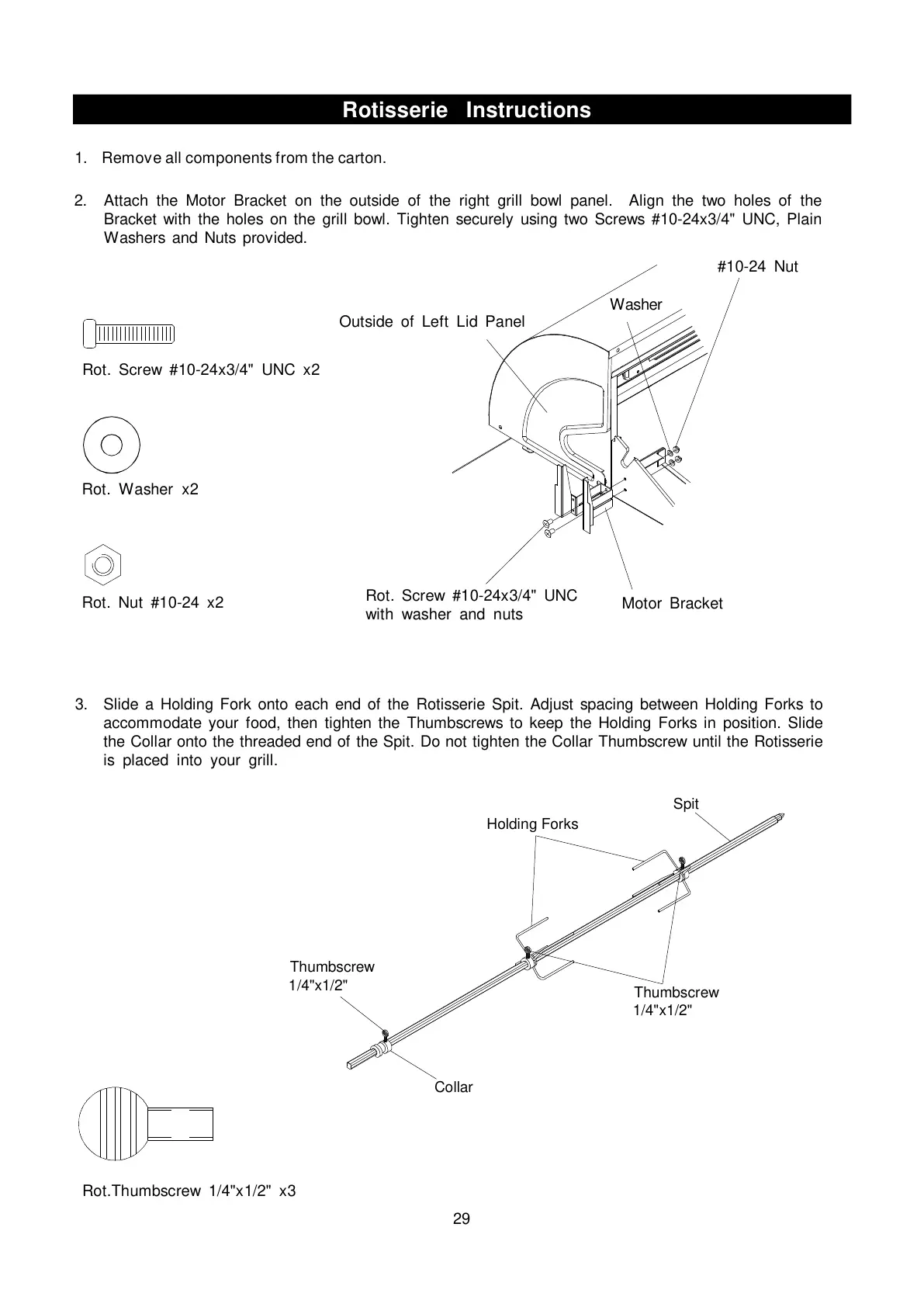

Rotisserie Instructions
