14

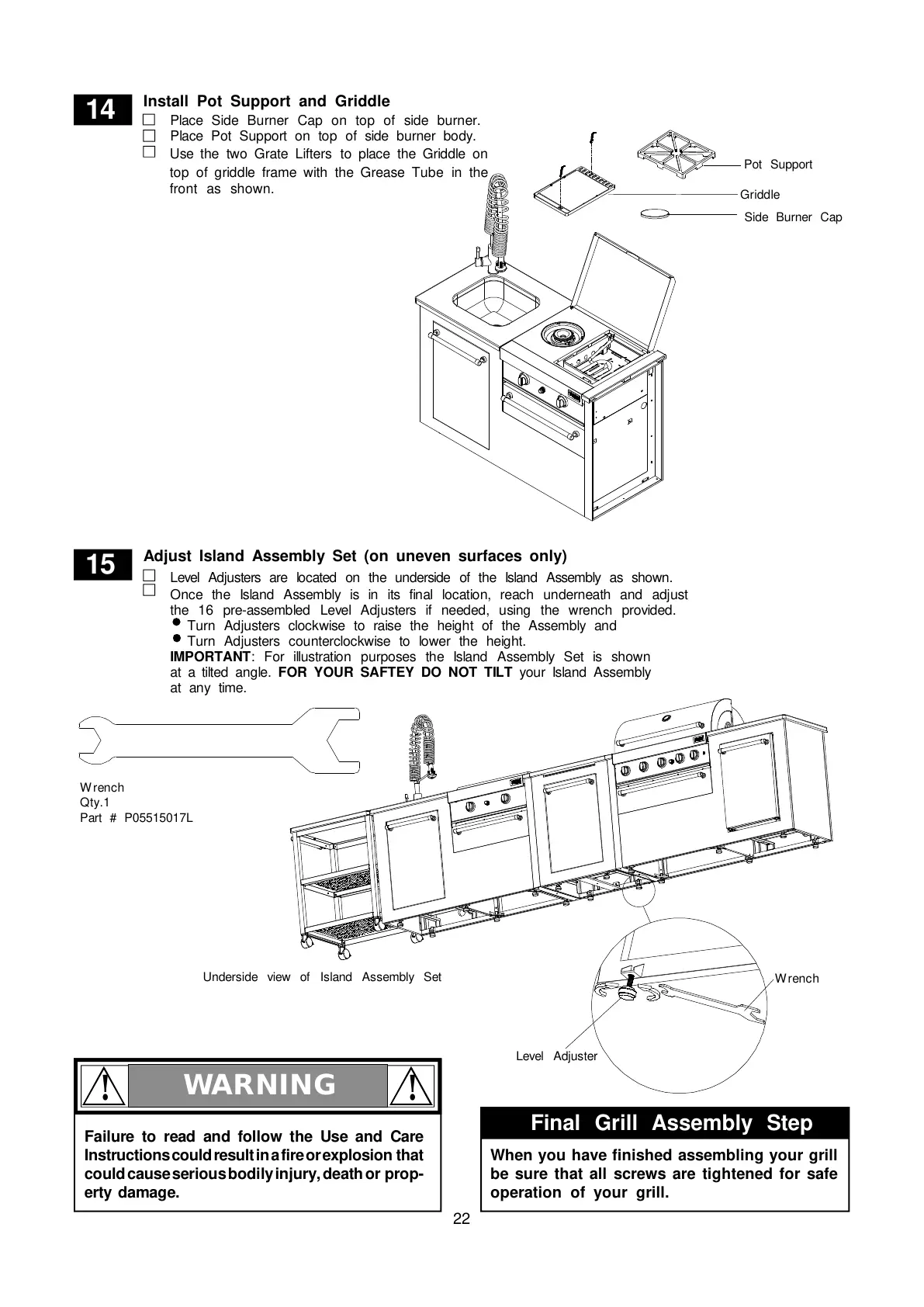

Install Pot Support and Griddle
Place Side Burner Cap on top of side burner.
Place Pot Support on top of side burner body.
Use the two Grate Lifters to place the Griddle on
top of griddle frame with the Grease Tube in the
front as shown.
Pot Support
Griddle
Side Burner Cap
Final Grill Assembly Step
When you have finished assembling your grill
be sure that all screws are tightened for safe
operation of your grill.
Wrench
Qty.1
Part # P05515017L
Level Adjusters are located on the underside of the Island Assembly as shown.
Once the Island Assembly is in its final location, reach underneath and adjust
the 16 pre-assembled Level Adjusters if needed, using the wrench provided.
Turn Adjusters clockwise to raise the height of the Assembly and
Turn Adjusters counterclockwise to lower the height.
IMPORTANT: For illustration purposes the Island Assembly Set is shown
at a tilted angle. FOR YOUR SAFTEY DO NOT TILT your Island Assembly
at any time.
15
Adjust Island Assembly Set (on uneven surfaces only)
Underside view of Island Assembly Set
Level Adjuster
Wrench
