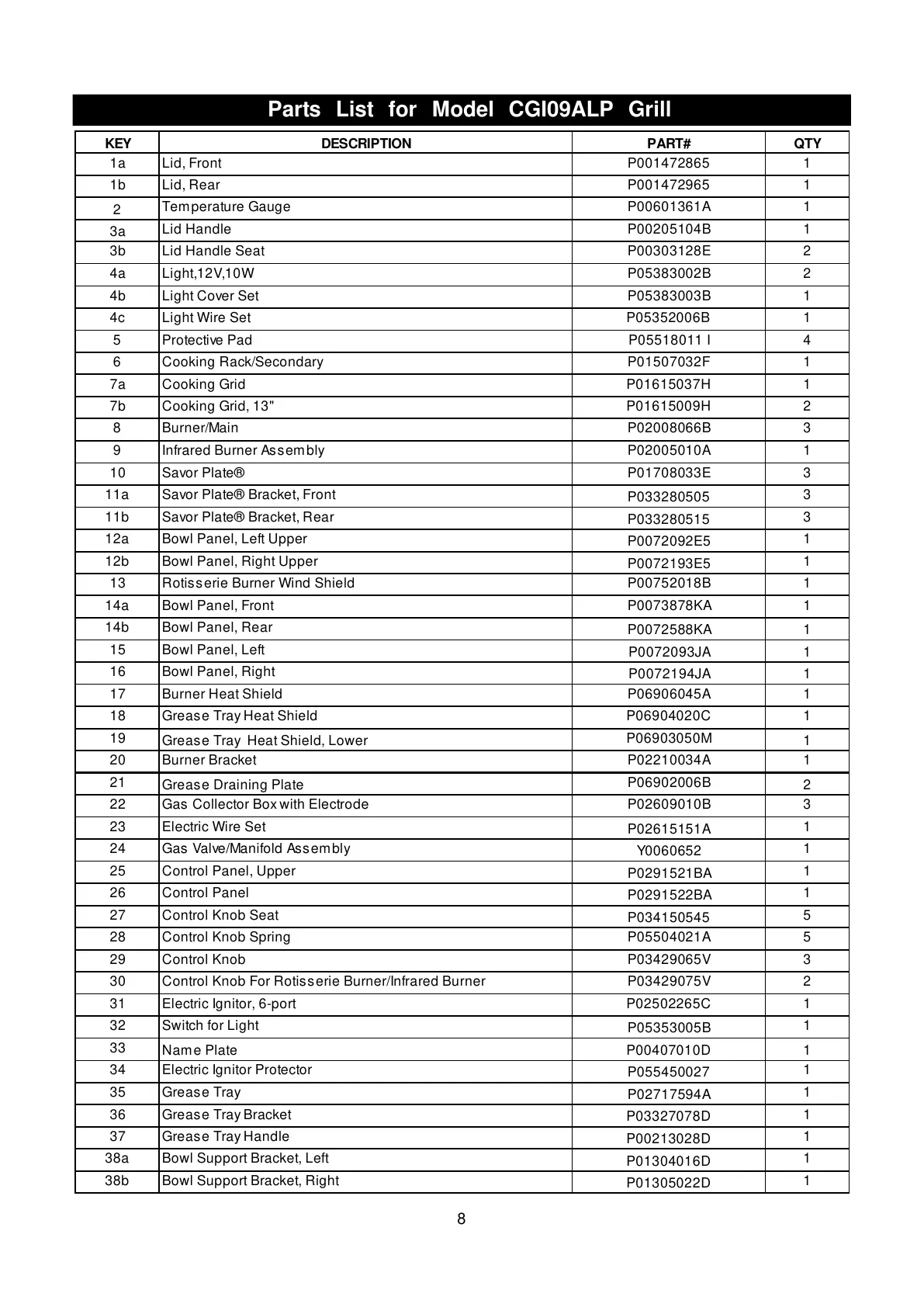

Parts List for Model CGI09ALP Grill
KEY DESCRIPTION PART# QTY
1a Lid, Front P001472865 1
1b Lid, Rear P001472965 1
2
Temperature Gauge P00601361A 1
3a
Lid Handle P00205104B 1
3b Lid Handle Seat P00303128E 2
4a Light,12V,10W P05383002B 2
4b Light Cover Set P05383003B 1
4c Light Wire Set P05352006B 1
5 Protective Pad P05518011 I 4
6 Cooking Rack/Secondary P01507032F 1
7a Cooking Grid P01615037H 1
7b Cooking Grid, 13" P01615009H 2
8 Burner/Main P02008066B 3
9 Infrared Burner Assembly P02005010A 1
10 Savor Plate® P01708033E 3
11a Savor Plate® Bracket, Front
P033280505
3
11b Savor Plate® Bracket, Rear
P033280515
3
12a Bowl Panel, Left Upper
P0072092E5
1
12b Bowl Panel, Right Upper
P0072193E5
1
13 Rotisserie Burner Wind Shield P00752018B 1
14a Bowl Panel, Front P0073878KA 1
14b Bowl Panel, Rear
P0072588KA 1
15 Bowl Panel, Left
P0072093JA 1
16 Bowl Panel, Right
P0072194JA 1
17 Burner Heat Shield P06906045A 1
18 Grease Tray Heat Shield P06904020C 1
19
Grease Tray Heat Shield, Lower
P06903050M
1
20 Burner Bracket P02210034A 1
21
Grease Draining Plate
P06902006B
2
22 Gas Collector Box with Electrode P02609010B 3
23 Electric Wire Set
P02615151A
1
24 Gas Valve/Manifold Assembly
Y0060652
1
25 Control Panel, Upper
P0291521BA
1
26 Control Panel
P0291522BA
1
27 Control Knob Seat
P034150545
5
28 Control Knob Spring P05504021A 5
29 Control Knob P03429065V 3
30 Control Knob For Rotisserie Burner/Infrared Burner P03429075V 2
31 Electric Ignitor, 6-port P02502265C 1
32 Switch for Light
P05353005B
1
33
Name Plate P00407010D 1
34 Electric Ignitor Protector
P055450027
1
35 Grease Tray
P02717594A
1
36 Grease Tray Bracket
P03327078D
1
37 Grease Tray Handle
P00213028D
1
38a Bowl Support Bracket, Left
P01304016D
1
38b Bowl Support Bracket, Right
P01305022D
1
