Grandaire WFAR080B048 - Dimensional Drawing

INSTALLATION INSTRUCTIONS Gas Furnace: WFAR
440 01 7104 02 7
Specifications subject to change without notice.

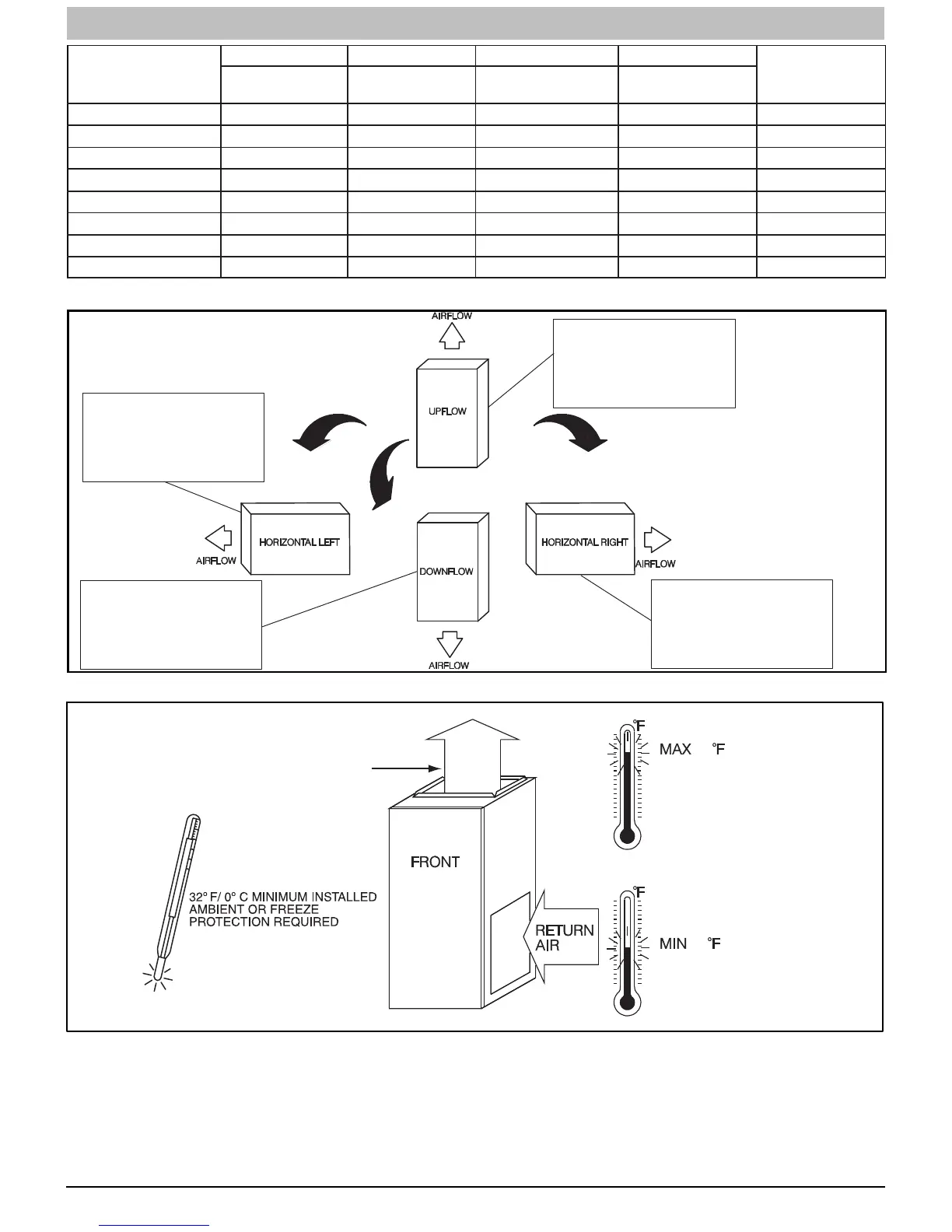

FURNACE SIZE
A B C D
SHIP WT.
LB (KG)
CABINET
WIDTH
OUTLET WIDTH
BOTTOM
INLET WIDTH
AIR INTAKE
040A030C 14--3/16 (361) 12--1/2 (319) 12--9/16 (322) 7--1/8 (181) 123 (55)
060B048C 17--1/2 (445) 15--7/8 (403) 16 (406) 8--3/4 (222) 144 (65)
080B048B 17--1/2 (445) 15--7/8 (403) 16 (406) 8--3/4 (222) 154 (69)
080B048C 17--1/2 (445) 15--7/8 (403) 16 (406) 8--3/4 (222) 154 (69)
080C060C 21 (533) 19--3/8 (492) 19--1/2 (495) 10--1/2 (267) 162 (73)
100C048C 21 (533) 19--3/8 (492) 19--1/2 (495) 10--1/2 (267) 169 (76)
100C060C 21 (533) 19--3/8 (492) 19--1/2 (495) 10--1/2 (267) 169 (76)
120D060C 24--1/2 (622) 22--7/8 (581) 23 (584) 12--1/4 (311) 186 (84)
Figure 1 -- Dimensional Drawing
THEBLOWERISLOCATED
TO THE RIGHT OF THE
BURNER SECTION, AND
CONDITIONED AIR IS
DISCHARGED TO THE LEFT.
THE BLOWER IS
LOCATED BELOW THE
BURNER SECTION, AND
CONDITIONED AIR IS
DISCHARGED UPWARD.
THE BLOWER IS
LOCATED ABOVE THE
BURNER SECTION, AND
CONDITIONED AIR IS
DISCHARGED DOWNWARD.
THE BLOWER IS
LOCATED TO THE LEFT
OF THE BURNER SECTION,
AND CONDITIONED AIR IS
DISCHARGED TO THE RIGHT.
L12F010
Figure 2 -- Multipoise Orientations
60
80 / 27˚C
/ 16˚C
SUPPLY AIR
A10490
Figure 3 -- Freeze Protection and Return Air Temperature
