grandimpianti GWM Series User Manual

56
WASHING MACHINE Series GWH / GWM / GWN

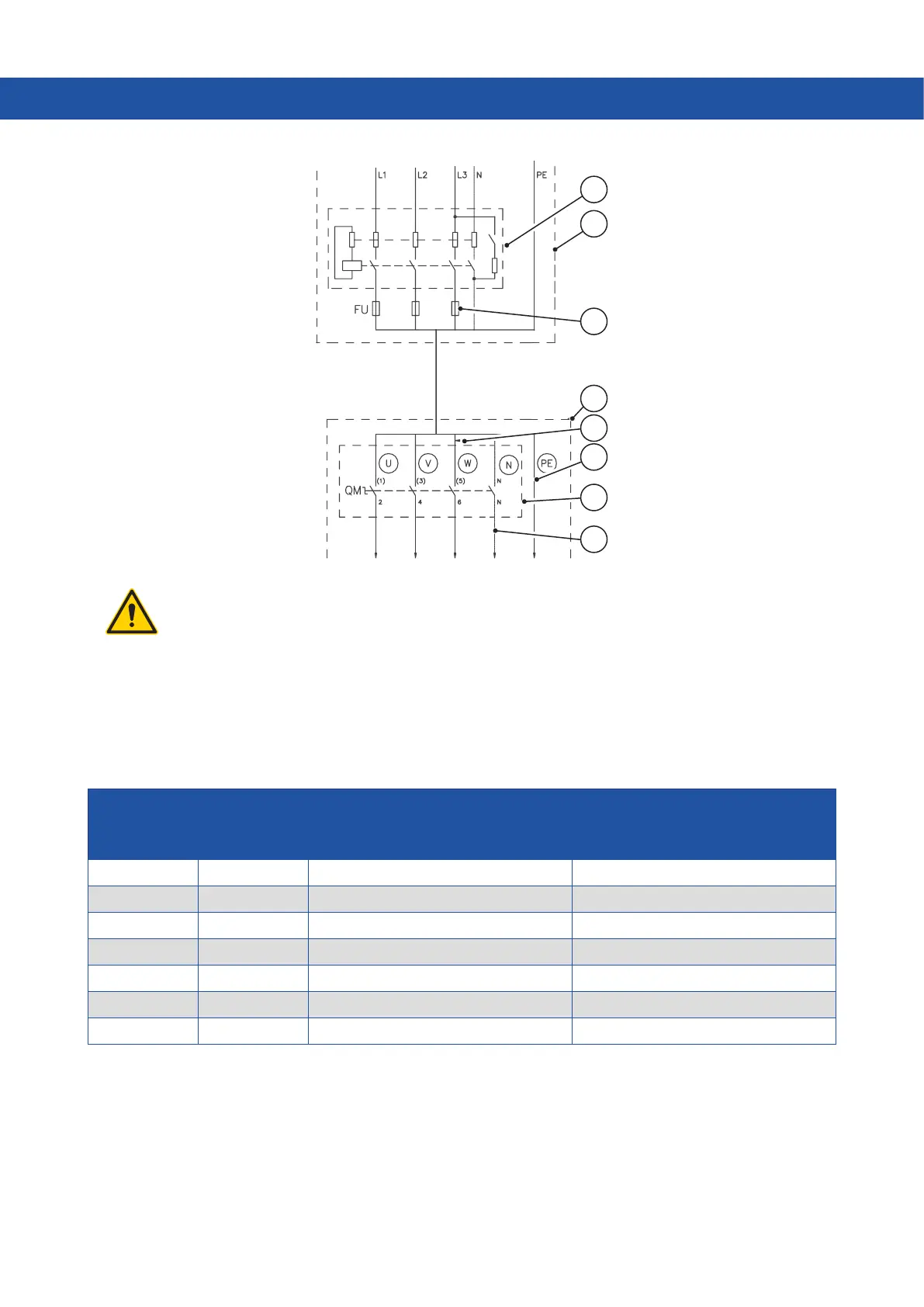

INSTALLATION, CONNECTIONS, AND ADJUSTMENTS
1
2
3
4
5
6
7
8
WARNING!
The power supply cable is not part of the supply.
The power supply cable must be:
• Conducting with copper nuclei
• Flexible
• Short and straight from the power protection device to the appliance, without deviation
• For the section (see the "minimum section" table below)
• Without plugs or extension cords (the appliance is intended to be permanently connected to the electrical mains).
MINIMUM SECTIONS OF POWER SUPPLY CONDUCTORS
Power protection (US)
Phase conductor minimum section
(mm
2
) AWG
Protective conductor minimum section
(mm
2
) AWG
Int. protection Fuses
20A (20A) 16A (15A) 2.5 mm
2
(AWG 13) 2.5 mm
2
(AWG 13)
25A (-) 20A (20A) 4 mm
2
(AWG 11) 4 mm
2
(AWG 11)
40A (40A) 32A (30A) 6 mm
2
(AWG 9) 6 mm
2
(AWG 9)
63A (-) 50A (50A) 10 mm
2
(AWG 7) 10 mm
2
(AWG 7)
80A 63A 16 mm
2
16 mm
2
100A 80A 25 mm
2
16 mm
2
125A 100A 35 mm
2
25 mm
2
