INSTALLATION, CONNECTIONS, AND ADJUSTMENTS

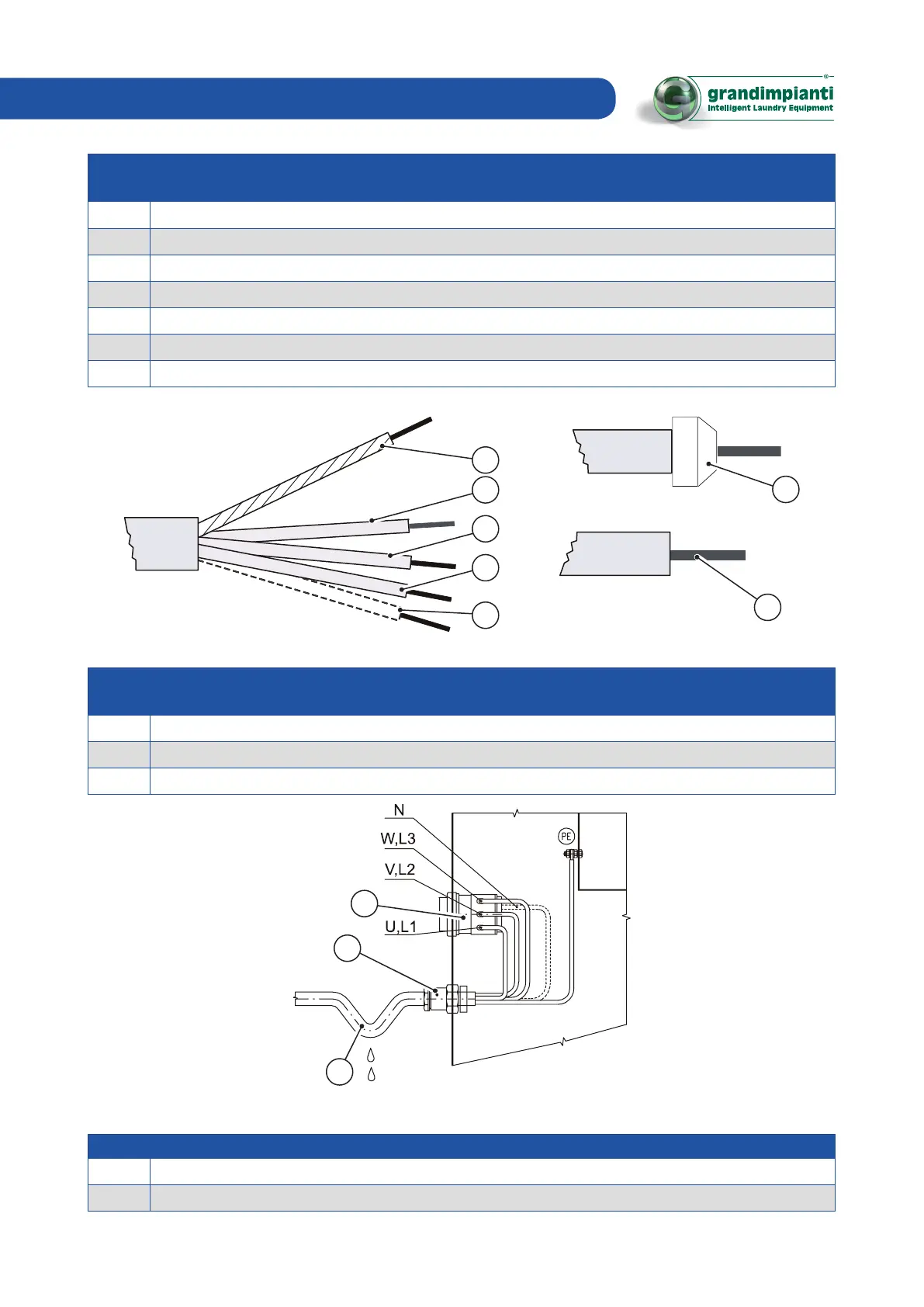

POWER SUPPLY CABLE CONDUCTOR ENDS
Pos. Element
1 Protective conductor
2 Phase conductor
3 Phase conductor
4 Phase conductor
5 Neutral conductor
6 Tube terminal
7 Stripped conductor length
1
2
3
4
5
6
7
MAIN SUPPLY CONNECTION
Pos. Element
1 Master switch
2 Loop
3 Power supply cable loosening
1
2
3
To make the power supply connection, follow this procedure:
Step Action
1 Insert the cable into the hole on the rear panel.
2 Strip the individual wires.
