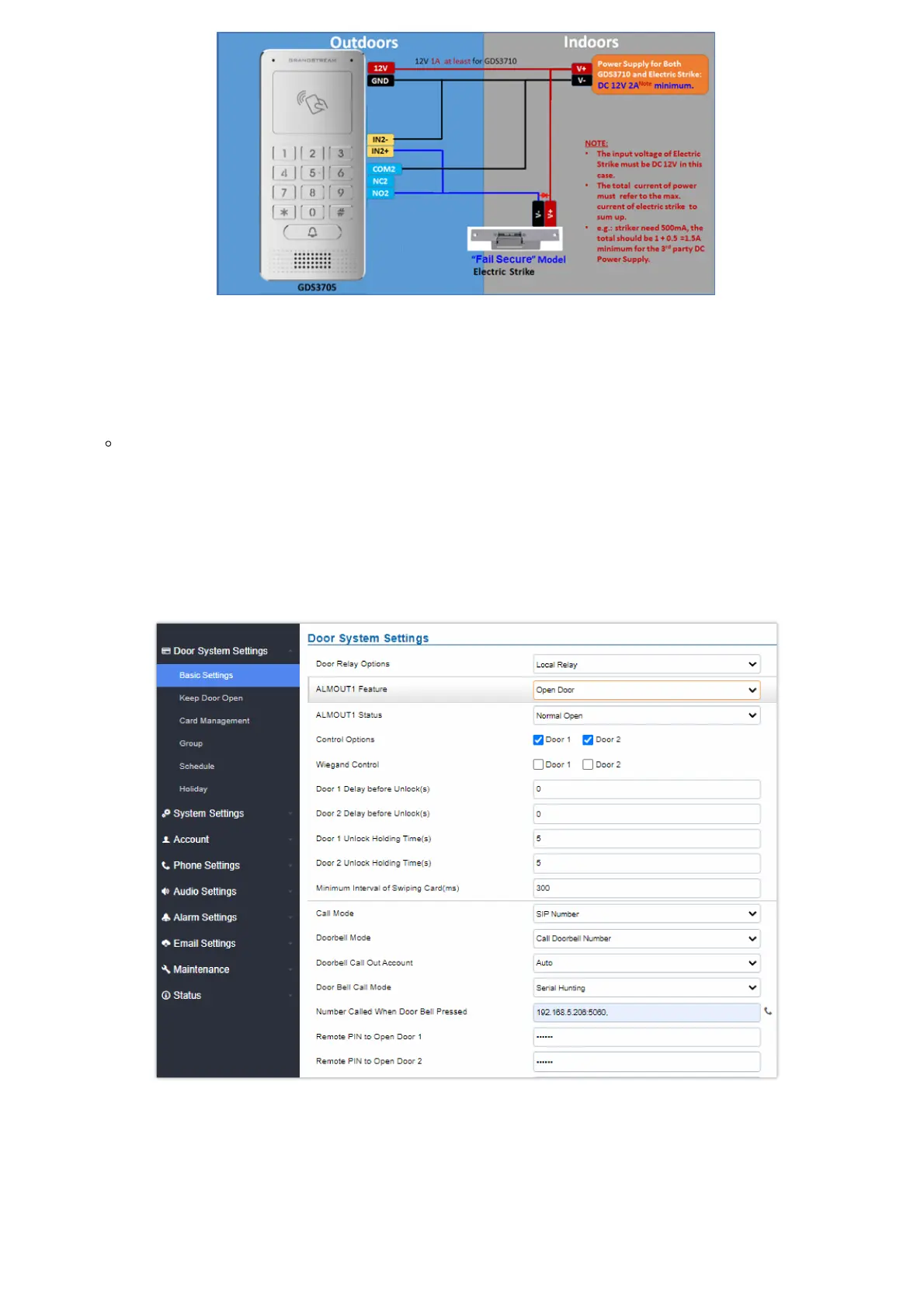

Figure 30: “Fail Secure” Electric Strike using 3rd Party Power Supply
Open Door via GDS370x with or without a SIP Call
This feature needs related matching GDS370x firmware to work. The minimum firmware version needed:
GDS370x: 1.0.1.16 or higher.
From the GDS3705 side, the configuration is the same. The only difference is the number of doors to be controlled: If using
Local Relay controlled by GDS3705, TWO DOORS can be controlled.
If using GSC3570 Relay, ONLY ONE DOOR can be controlled. The PIN and other settings are the same as SIP remote open
door or GSC3570 secure open door.
The difference will come out in the touch screen UI operation of GSC3570.
Figure 31: GDS3705 Configuration Example
