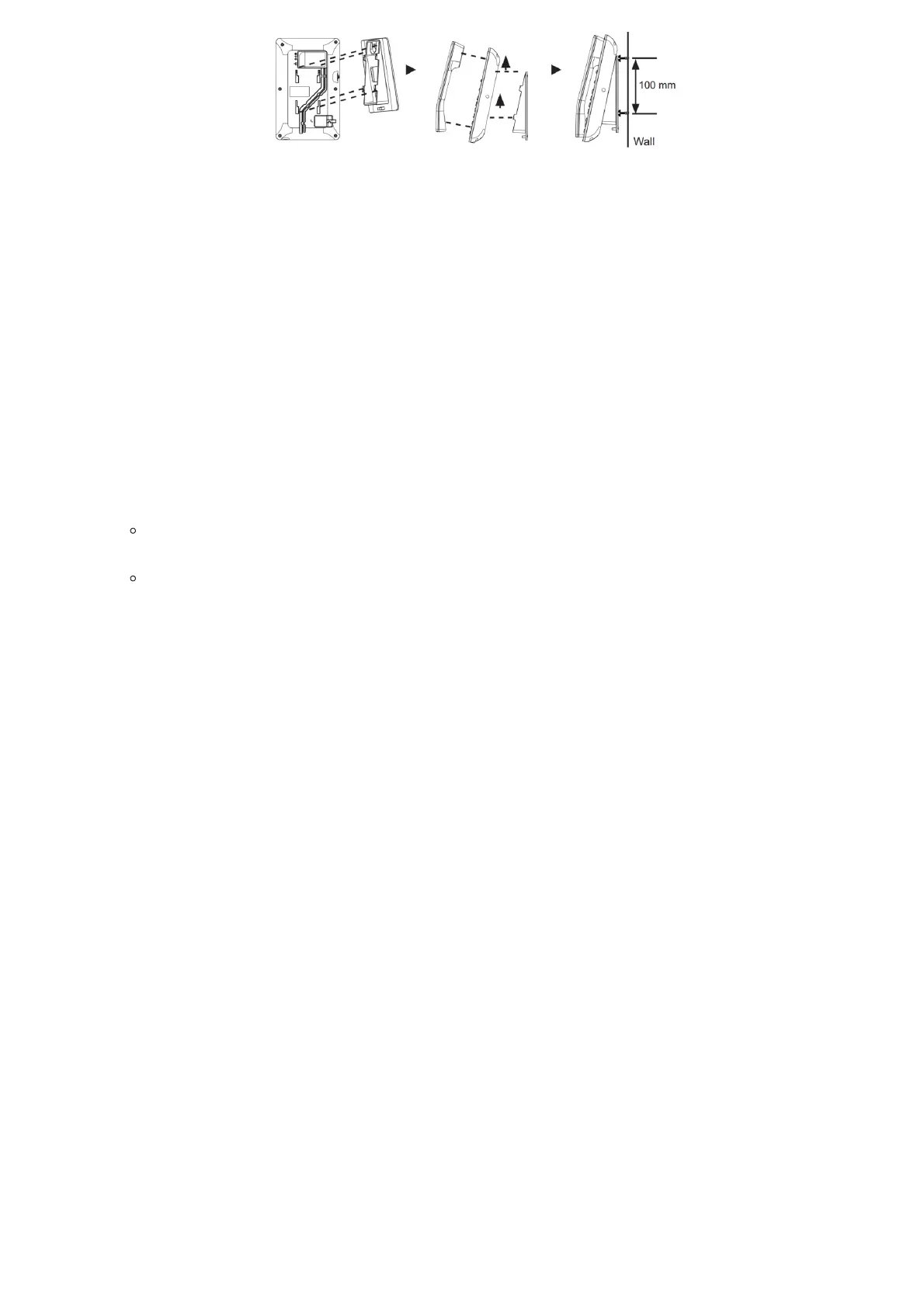

GHP61X Wall Mount

1. On the wall where the GHP62X/W will be mounted, mark two dots with 100 mm distance in-between vertically.

2. Using a drill, make a hole on each marked dot. Put a plastic expansion bolt and screw (not provided) into each hole. Leave

enough space on the screws to mount the GHP62X.

3. Attach the wall mount spacers to the slot for the wall mount spacer on the back of the phones.

4. Mount the GHP62X on the screws using its “Wall Mount Slots”.

Connecting the GHP6XX/W

To set up the phone, follow the steps below:

1. Connect the phone cord with the handset (RJ-11 port in GHP61X/W, RJ-9 port in GHP62X/W) and the base.

2. Connect the LAN port of the phone to the RJ-45 socket of a hub/switch on a router ( LAN side of the router) using the

Ethernet cable. This step can be skipped if using GHP6XXW with Wi-Fi.

3. Powering the phone:

For GHP6XXW: Connect the 12V DC output plug into the power jack if the phone; plug the power adapter into the

electrical outlet.

For GHP6XX: A PoE switch must be used in step 2.

Phone Configuration Via Web Browser

1. Ensure your phone is powered up and connected to the internet.

2. Locate the MAC address on the MAC tag of the unit which is on the underside of the device, or on the package.

3. From a computer connected to the same network as the GHP6XX, type in the following address using GHP6XX’s MAC

address on your browser: https://<mac>.local

Example: https://c074adffffff.local

Note: The user can dial **47# and the IP address will be read by the IVR.

4. Enter the admin’s username and password to access the configuration menu. (The factory default username is “admin”

while the default random password can be found on the sticker at the back of the unit).

Phone Description

GHP61X

Note

For easy deployment, the GHP6xxW is out-of-the-box pre-configured to connect to default SSID named wp_master with a

password (WPA/WPA2 PSK) equal to wp!987@dmin, users can adapt these settings from the web UI as well to make it easier

for deployment on a customer’s site.
