Grandstream Networks GXP2170 Configuration Guide

Connecting GDS3710 with GXP21xx Configuration Guide
P a g e | 4
PEERING SCENARIO
In this scenario, we assume that the GDS3710 is installed on a small warehouse at front door and GXP2170
inside to monitor and control the access of the premise. Visitors needs to press the door bell button on the
GDS3710 to initiate a video call and the related person at the GXP2170 side can open the door remotely
to allow the visitors to get in as shown in the figure below.

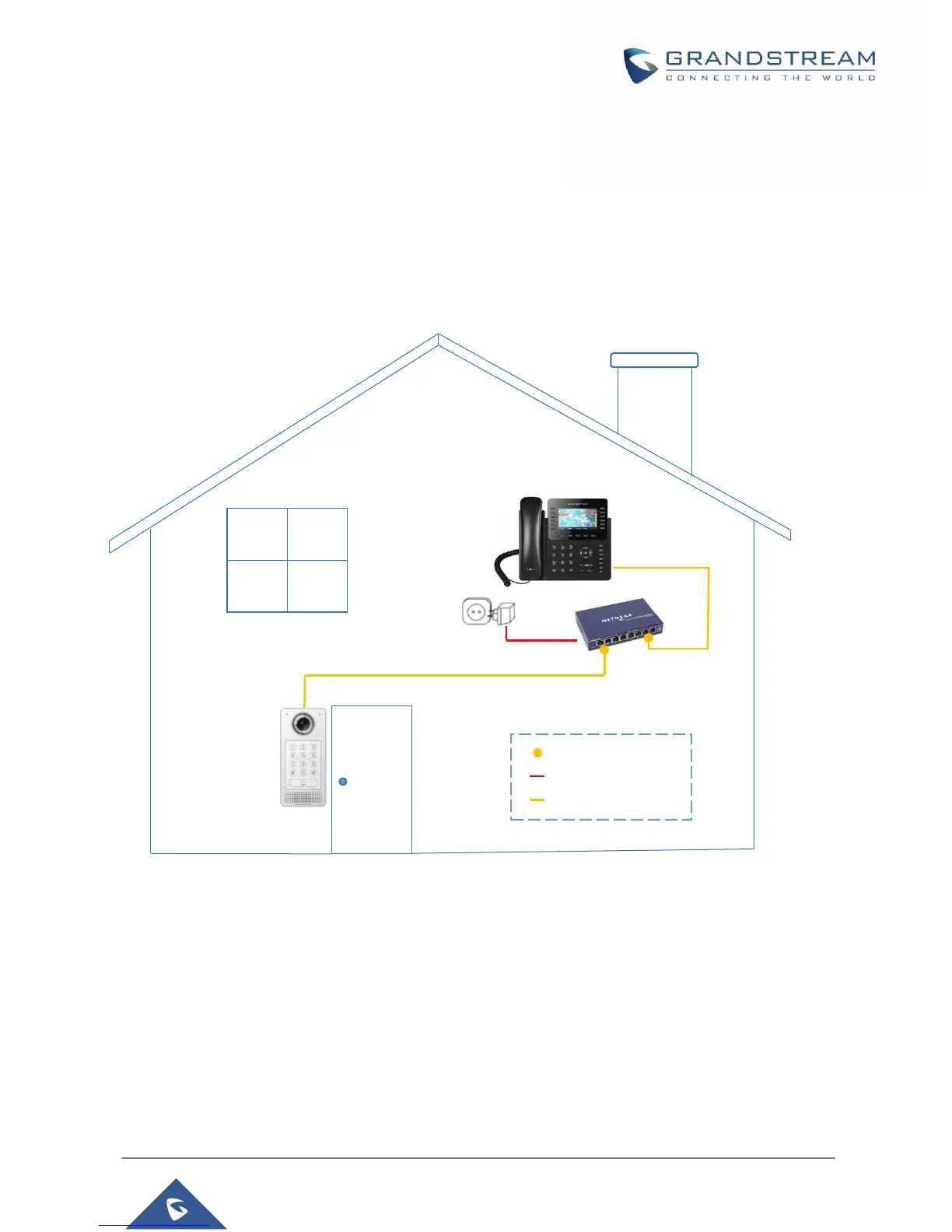

Figure 1: GXP2170 peered with the GDS3710
- The IP address used by the GDS3710 is 192.168.6.100.
- The IP address used by the GXP2170 is 192.168.6.62.
GDS3710 Configuration Settings
The GDS3710 needs to be configured with the IP address of the phone (GXP2170 in our example), the
related SIP port, and remote PIN for door opening. Please refer to following configuration steps:
1. Access the GDS3710 Web GUI and navigate to “Door System SettingsBasic Settings”.
GXP2170
IP: 192.168.6.62
GDS3710
IP: 192.168.6.100
Front Door
Ethernet PoE connection
Power connection
Ethernet cable
