FIRMWARE VERSION 1.0.0.14 GXP2200EXT USER MANUAL Page 18 of 26
Note:
The computer has to be connected to the same sub-network as the phone. This can be easily done by
connecting the computer to the same hub or switch as the phon. In absence of a hub/switch (or free ports
on the hub/switch), please connect the computer directly to the PC port on the back of the phone.
CONFIGURING GXP2200EXT MPK IN WEB GUI
1. In the GXP2200 web GUI, go to Advanced Settings->MPK EXT Settings (see figure below);

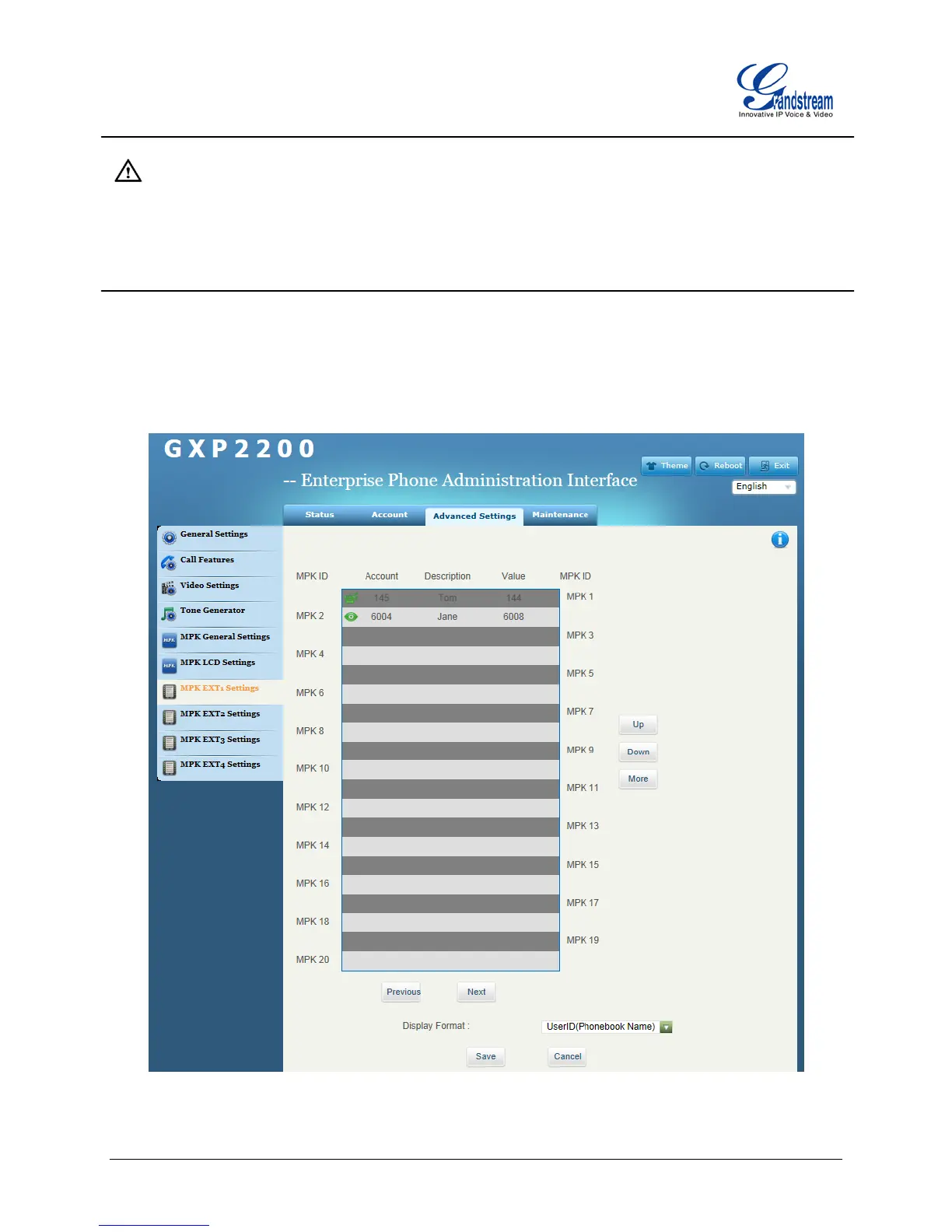

Figure 9: GXP2200 Extension Board Configuration via GXP2200 Web GUI
