Grandstream Networks, Inc. GXW410x User Manual Page 5 of 35
Firmware Version 1.3.4.13 Last Updated: 3/2012
PACKAGING
Unpack and check all accessories. Equipment included in the package:
1) One GXW410x Unit
2) One universal power adaptor
3) One Ethernet cable
CONNECTING THE GXW410X

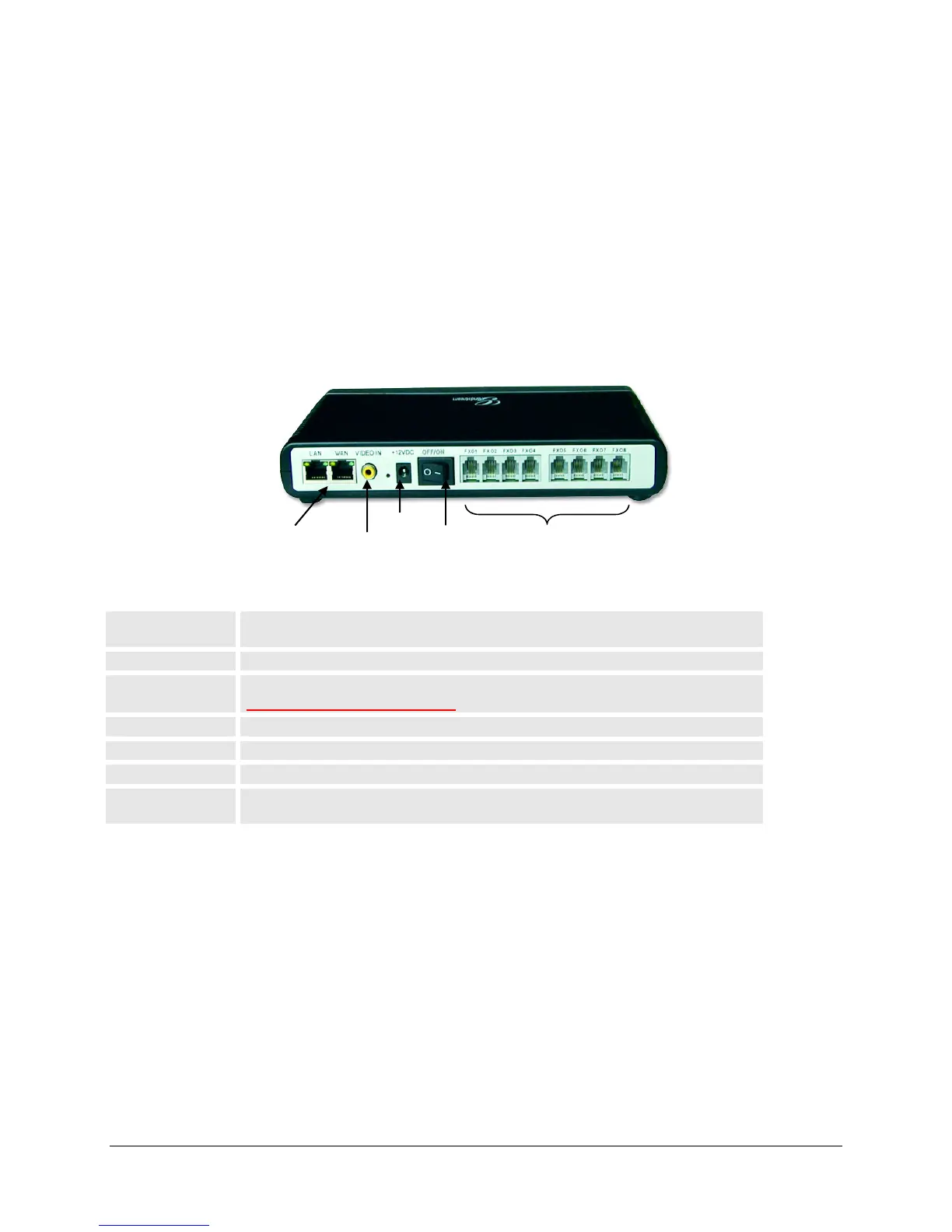

FIGURE 1: DIAGRAM OF GXW410X BACK PANEL
T
ABLE 1: DEFINITIONS OF THE GXW CONNECTORS
LAN (or PC)
Connect your PC to this port. It will then be assigned an IP address from your
Router/DHCP Server. The GXW410x acts as a switch only.
WAN
Connect to the internal LAN network or Public Internet.
VIDEO IN
Connection for Analog based Video Surveillance Camera (RCA)
Available in HW revision 1 Only
RESET
Factory Reset button. Press for 7 seconds to reset factory default settings.
POWER SUPPLY
Power adapter connection
OFF/ON
Off/On switch
FXO1 - FXO8
FXO ports to be connected to physical PSTN lines from a traditional PSTN PBX or
PSTN Central Office.
NOTE: GXW410x acts as bridge only, if a device is connected to the LAN port, this device will get an ip
in same subnet as the WAN IP (NAT is disabled).
LAN/WAN RJ-45
Ethernet Ports
V
IDEO IN Jack
FXO Ports
Power Supply
On/Off Switch
GXW410x
