Grandstream Networks, Inc. GXW410x User Manual Page 6 of 35
Firmware Version 1.3.4.13 Last Updated: 3/2012

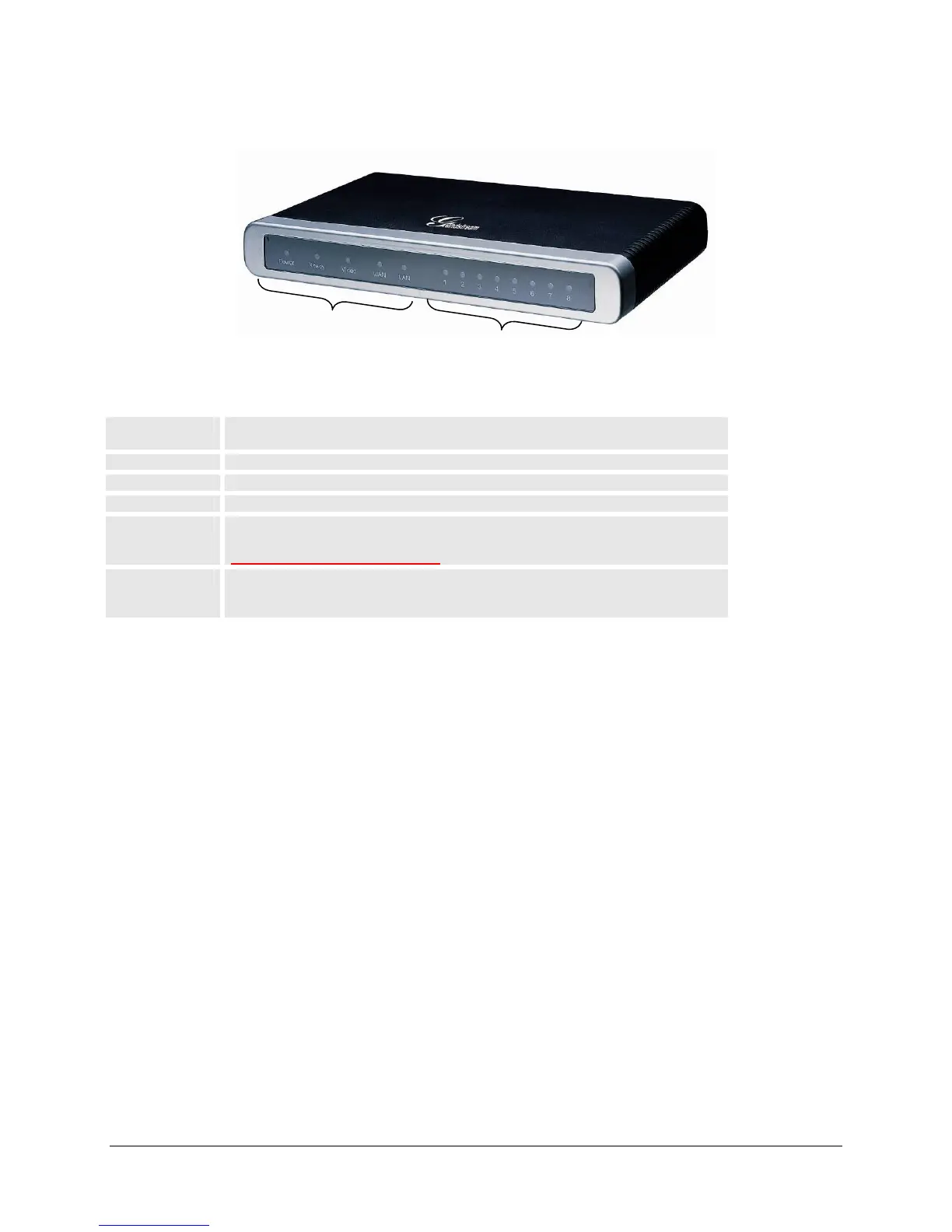

F
IGURE 2: DIAGRAM OF GXW410X DISPLAY PANEL
T
ABLE 2: DEFINITIONS OF THE GXW DISPLAY PANEL
Power LED
Indicates Power. Remains ON when Power is connected and unit is turned
ON.
Ready LED
Remains ON after boot-up.
LAN LED
Indicates WAN port activity in the back side
PC LED
Indicates LAN port activity in the back side
V
ideo LED
Remains solid green on boot-up. If Video IN terminal is connected, indicates
video activity.
Available in HW revision 1 Only
LEDs 1 - 8
Indicate status of the respective FXO Ports on the back panel
Busy - ON
Available – OFF
NOTE: All LEDs display green when ON. The Ready light will only be ON when the network interface is
ready and the Web User Interface is accessible.
During a firmware upgrade or configuration download the following LED pattern will be observed:
Power, Ready, Video and WAN LEDs will be ON. The FXO port LED will keep flashing during download
and then stay OFF while the new files are written. The entire process may take between 20 to 30
minutes. The firmware upgrade is complete when you can login into the web configuration pages.
FXO port
GXW410x
Display
