Grandstream Networks GXW4216 User Manual

P a g e | 16
GXW42xx User Manual
Version 1.0.15.30
Pin
Signal
Pin
Signal
1
RING1
26
TIP1
2
RING2
27
TIP2
3
RING3
28
TIP3
4
RING4
29
TIP4
5
RING5
30
TIP5
6
RING6
31
TIP6
7
RING7
32
TIP7
8
RING8
33
TIP8
9
RING9
34
TIP9
10
RING10
35
TIP10
11
RING11
36
TIP11
12
RING12
37
TIP12
13
RING13
38
TIP13
14
RING14
39
TIP14
15
RING15
40
TIP15
16
RING16
41
TIP16
17
RING17
42
TIP17
18
RING18
43
TIP18
19
RING19
44
TIP19
20
RING20
45
TIP20
21
RING21
46
TIP21
22
RING22
47
TIP22
23
RING23
48
TIP23
24
RING24
49
TIP24

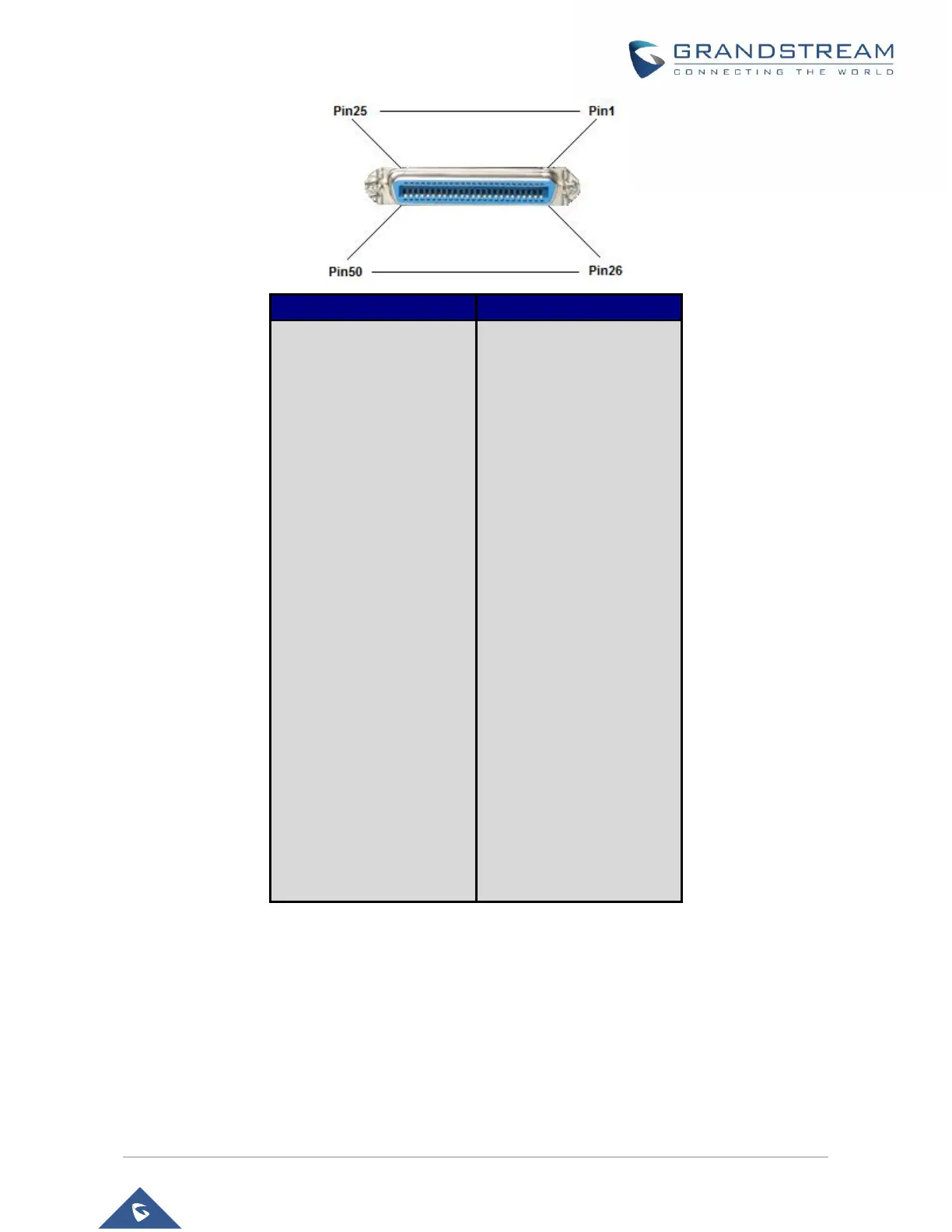

Figure 2: 50 Pin Telco Connector
Note:
 For GXW4216, only first 16 pairs are connected.
 For GXW4232, first 24 pairs on 1
st
RJ21 connector and first 8 pairs on the 2
nd
RJ21 connector are
connected.
 For GXW4224 and GXW4248, the last pair of pin 25 and 50 on each RJ21 is not connected.
 All LED lights display green when ON.
 LINK LED and ACT LED blinking in following status indicate different network speed.
