GXW42XX LCD Menu
The GXW42XX gateway series includes a small LCD screen for the display of basic information. The LCD
has a display area of 128x32 pixels, which will allow for 2 lines of text with a 16px height limitation per line.
The LCD menu is showed as Figure 3: LCD Menu. Menu is navigated by the Down-arrow and OK button.

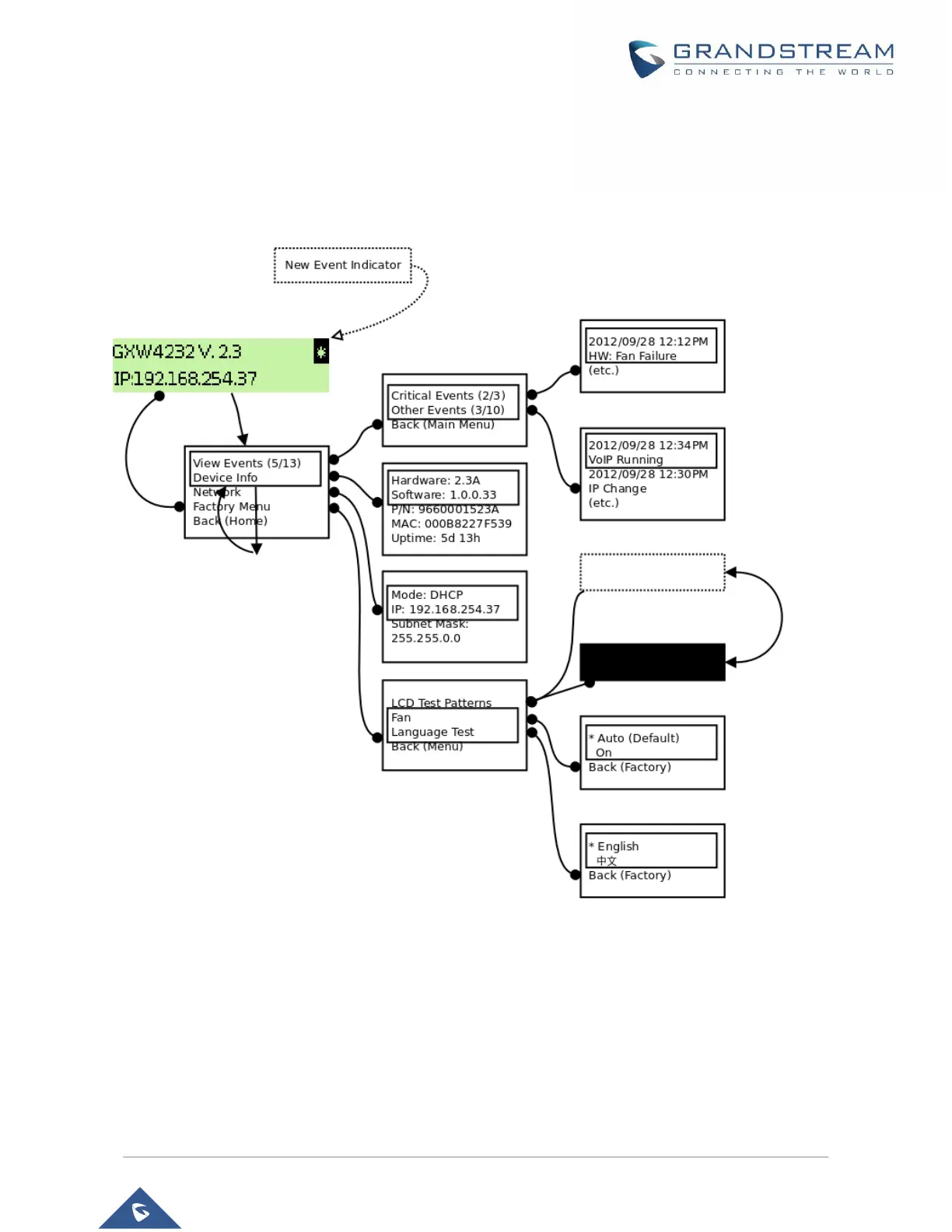

Figure 3: LCD Menu
