Grandstream Networks HT502 User Manual

P a g e | 12
HT502 User Manual

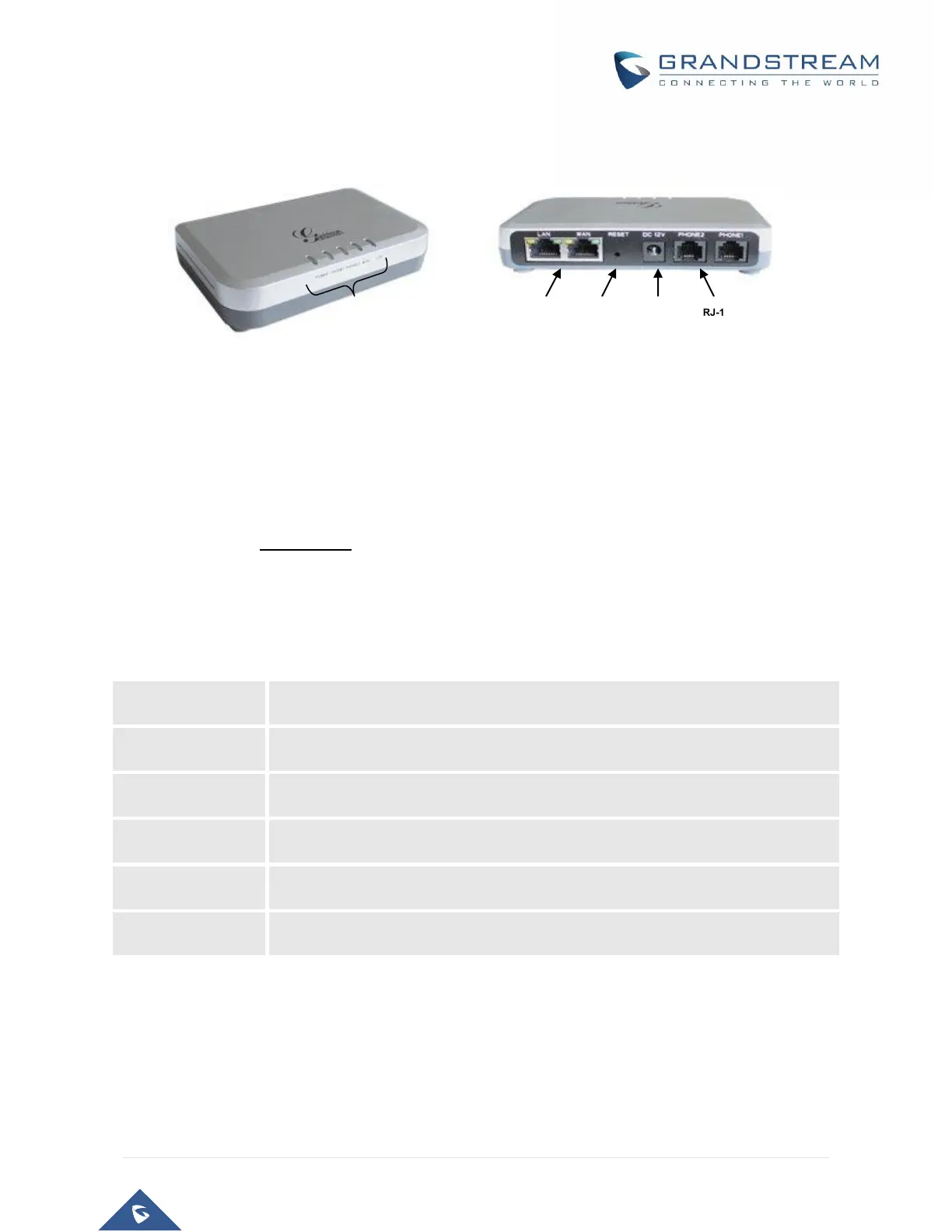

Figure 1: Connecting the HT502
The HT502 has two FXS port. Both FXS ports can have a separate SIP account. This is a key feature of
HT502 as it supports simultaneous calls on both FXS ports.
Table 1: Definitions of the HT502 connectors
Power Cable
Power adapter connection
WAN Port (RJ-45)
Connect to the internal LAN network or router.
LAN Port (RJ-45)
Connect the LAN port with an Ethernet cable to your PC.
RESET
Factory Reset button. Press for 7 seconds to reset factory default settings.
PHONE1 (RJ-11)
FXS port to be connected to analog phones / fax machines.
PHONE2 (RJ-11)
FXS port to be connected to analog phones / fax machines.
There are five (5) LED buttons that help you manage the status of your HandyTone.
HT-502
Front View
Display LEDs
(green)
HT-502
Back View
RJ-45 Ports
Reset
RJ-11 FXS Ports
Power
Supply(12V)

Grandstream Networks HT502 Specifications

General

Brand	Grandstream Networks
Model	HT502
Category	Telephone Accessories
Language	English
