HT812/HT814 User Guide
Version 1.0.15.4

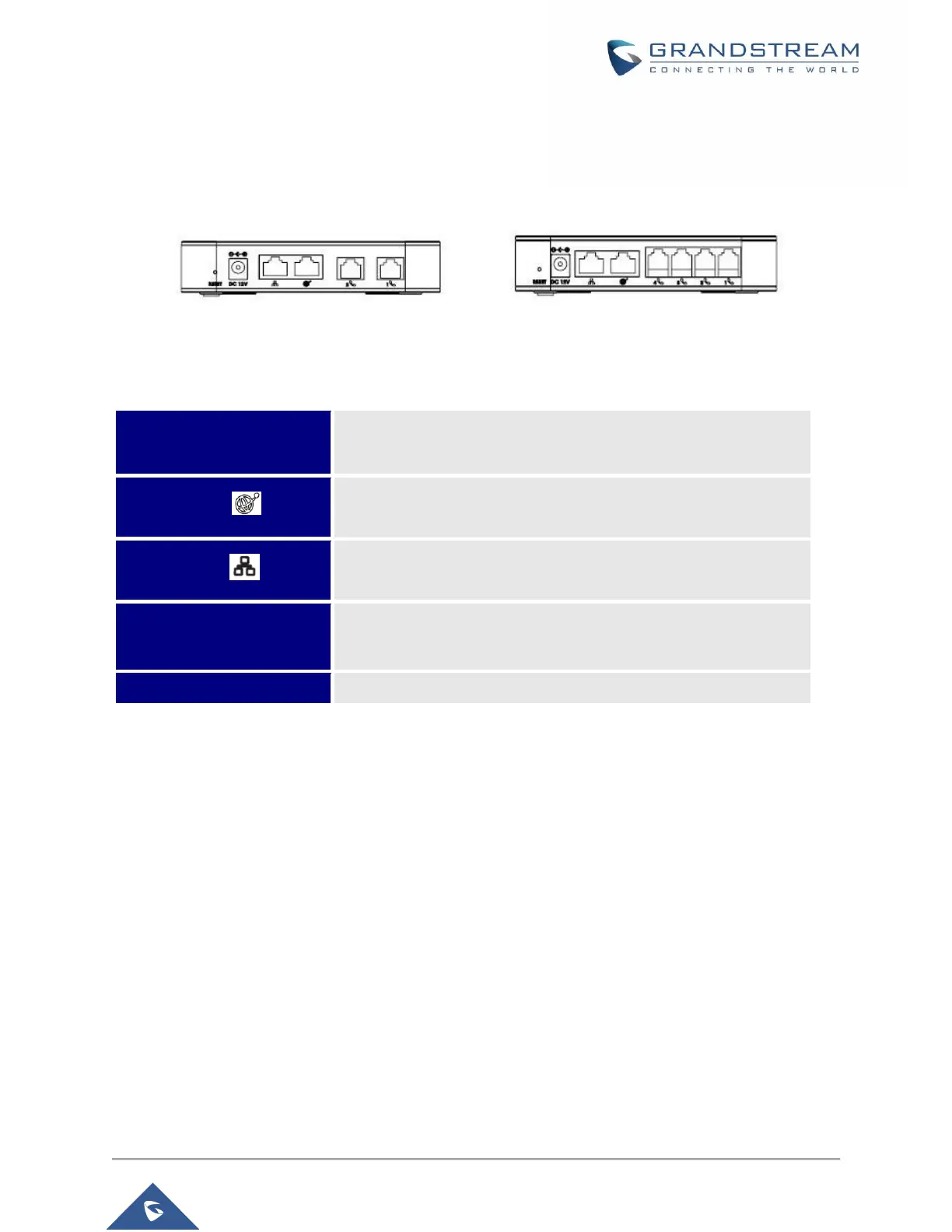

HT812/HT814 Ports Description
The following figure describes the different ports on the back panel of the HT812/HT814.
Table 3: Definition of the HT812/HT814 Connectors
Connecting HT812/HT814
The HT812/HT814 are designed for easy configuration and installation. To connect your HT812/HT814,
please follow the steps below:
Scenario 1: Connecting the HT812/HT814 using WAN Port
When connecting HT812/HT814 using the WAN port, they will act as simple DHCP Client.
1. Insert a standard RJ11 telephone cable into the phone ports and connect the other end of the
telephone cable to a standard touch-tone analog telephone.
2. Connect the WAN port of the HT812/HT814 to a router, switch or modem using an Ethernet cable.
3. Insert the power adapter into the HT812/HT814 and connect it to a wall outlet and make sure to
respect the technical specifications of the power adapter used.
4. Power, WAN and Phone LEDs will be solidly lit when the HT812/HT814 is ready for use.
Phone 1 & 2 (HT812)
Phone 1,2,3 & 4 (HT814)
Connects the analog phones / fax machines to the ATA using an
RJ-11 telephone cable.
WAN
Connects the ATA to your router, switch or modem using an
Ethernet RJ45 network cable.
co
LAN
Connects the ATA to your PC or switch using an Ethernet RJ45
network cable.
DC Power
Connects the ATA to PSU
(12V – 0.5A for HT812) and (12V - 1A for HT814).
Reset
Factory reset button. Press for 7 seconds to reset factory default
settings.
Figure 3: HT812 Back Panel
Figure 4: HT814 Back Panel
