OVERIEW
This document will provide instructions on how setup a UCM6100 series from an out of the box state
to a fully functional state. This includes design considerations, creating user extensions, provisioning
endpoints with Zero-Config, conferencing, auto attendant configuration, analog/VoIP trunks, routing
inbound/outbound calls and voicemail/fax to email setup.
For detailed information in regards to parameters that are encountered in this guide, please check the
UCM6100 series User Manual
SETUP GUIDE SCENARIO
In this setup guide we will be using the UCM6102 which has a WAN and LAN interface. The image
below shows the most typical setup where you have the UCM6100 series WAN port connected to the
Internet and the LAN side of the UCM6100 series providing DHCP.
We will use this scenario to setup a Grandstream GXP2124 which will be connected to the LAN side
of the UCM6100 series. There can also be a network switch connected to the LAN port of the
UCM6100 series so that there may be more than one device connected.

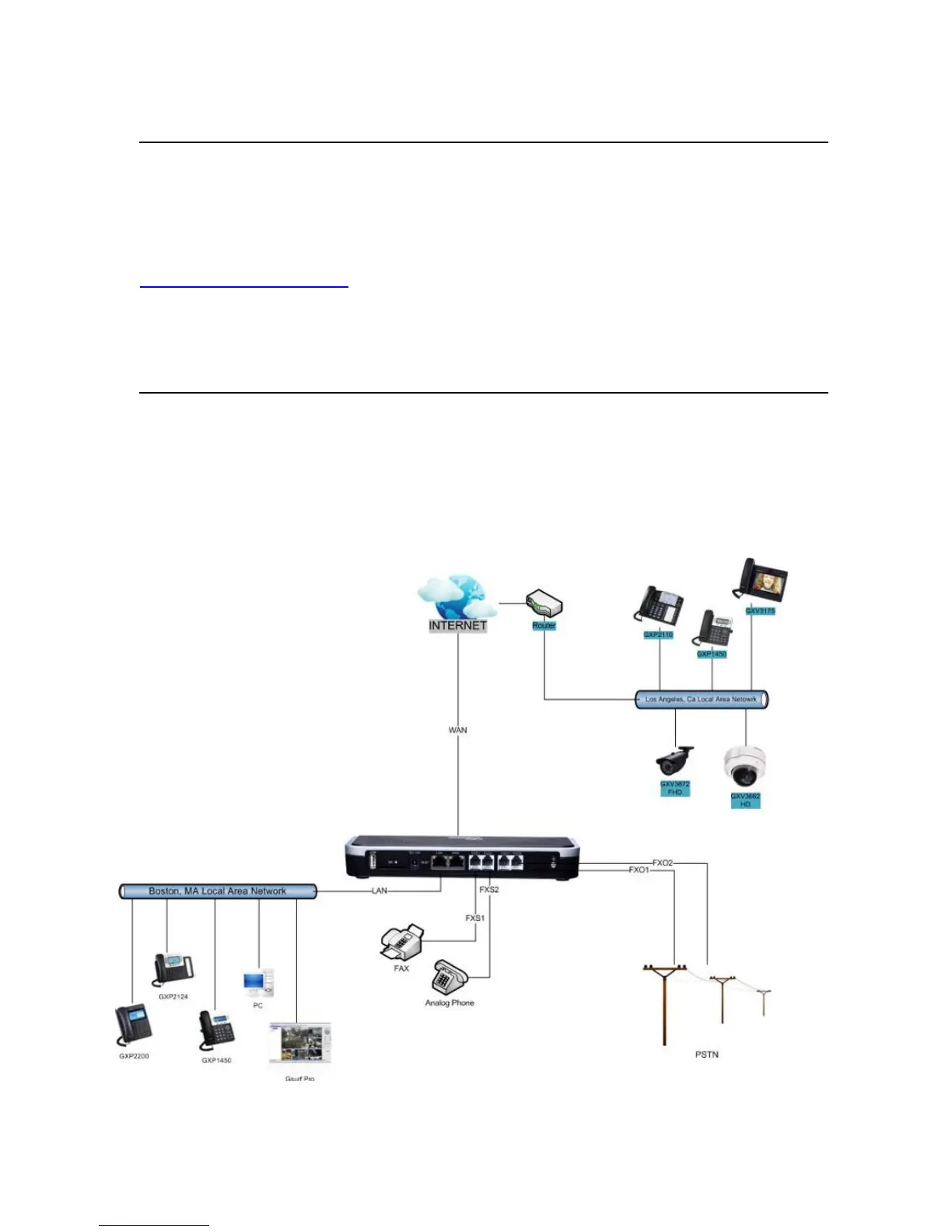

Figure 1: Typical UCM Scenario
