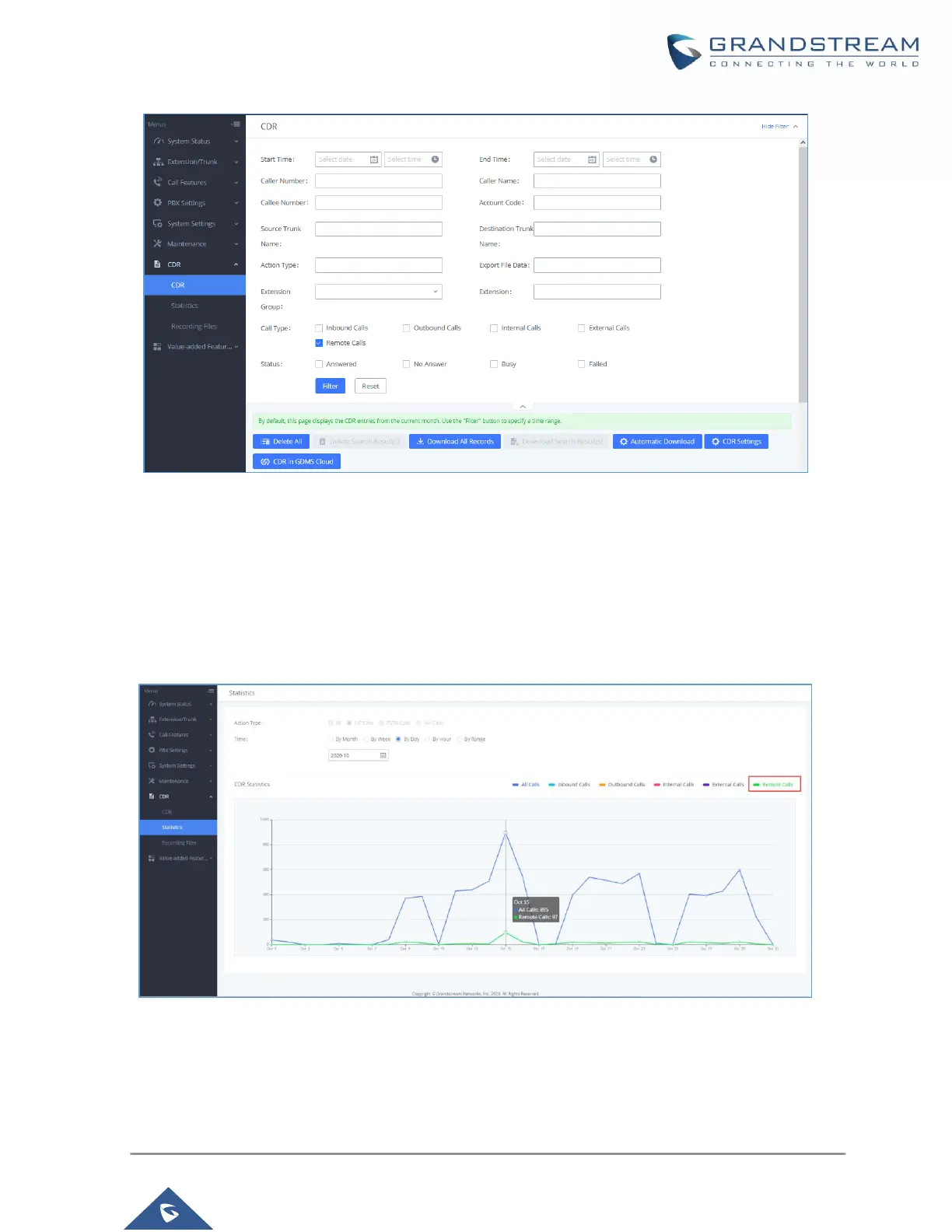

Figure 21: CDR for Remote Calls

Remote Call Statistics

The UCM630x supports display CDR statistics to provide users graphical view for the CDR. In Statistics

page, click on “Remote Calls” to filter the display.

Figure 22: CDR Statistics
