P a g e | 168

UCM630X Series User Manual

Version 1.0.2.25

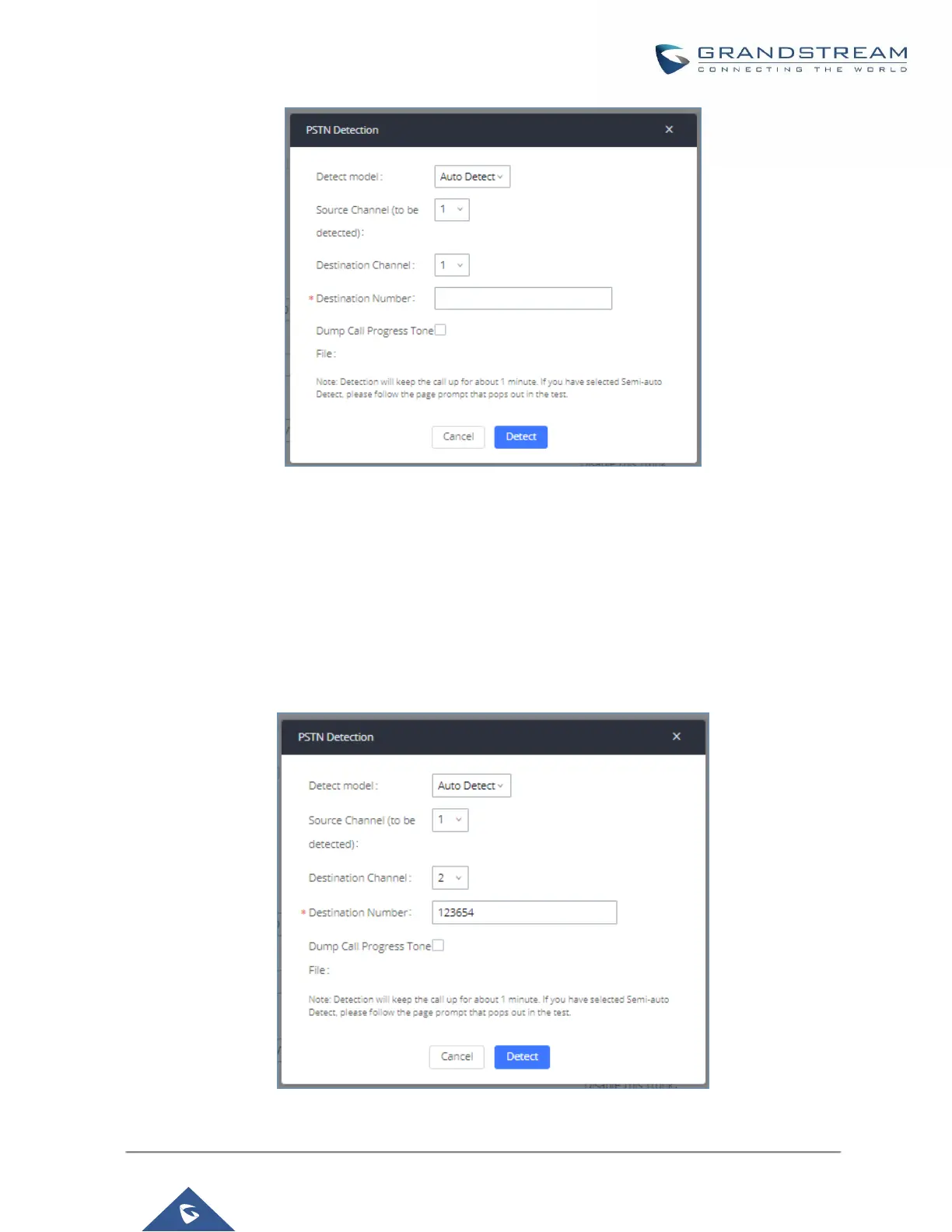

Figure 93: UCM630X PSTN Detection

 If there are two FXO ports connected to PSTN lines, use the following settings for auto-detection.

Detect Model: Auto Detect.

Source Channel: The source channel to be detected.

Destination Channel: The channel to help detecting. For example, the second FXO port.

Destination Number: The number to be dialed for detecting. This number must be the actual PSTN

number for the FXO port used as the destination channel.

Figure 94: UCM630X PSTN Detection: Auto Detect
