Configure 2-way Intercom

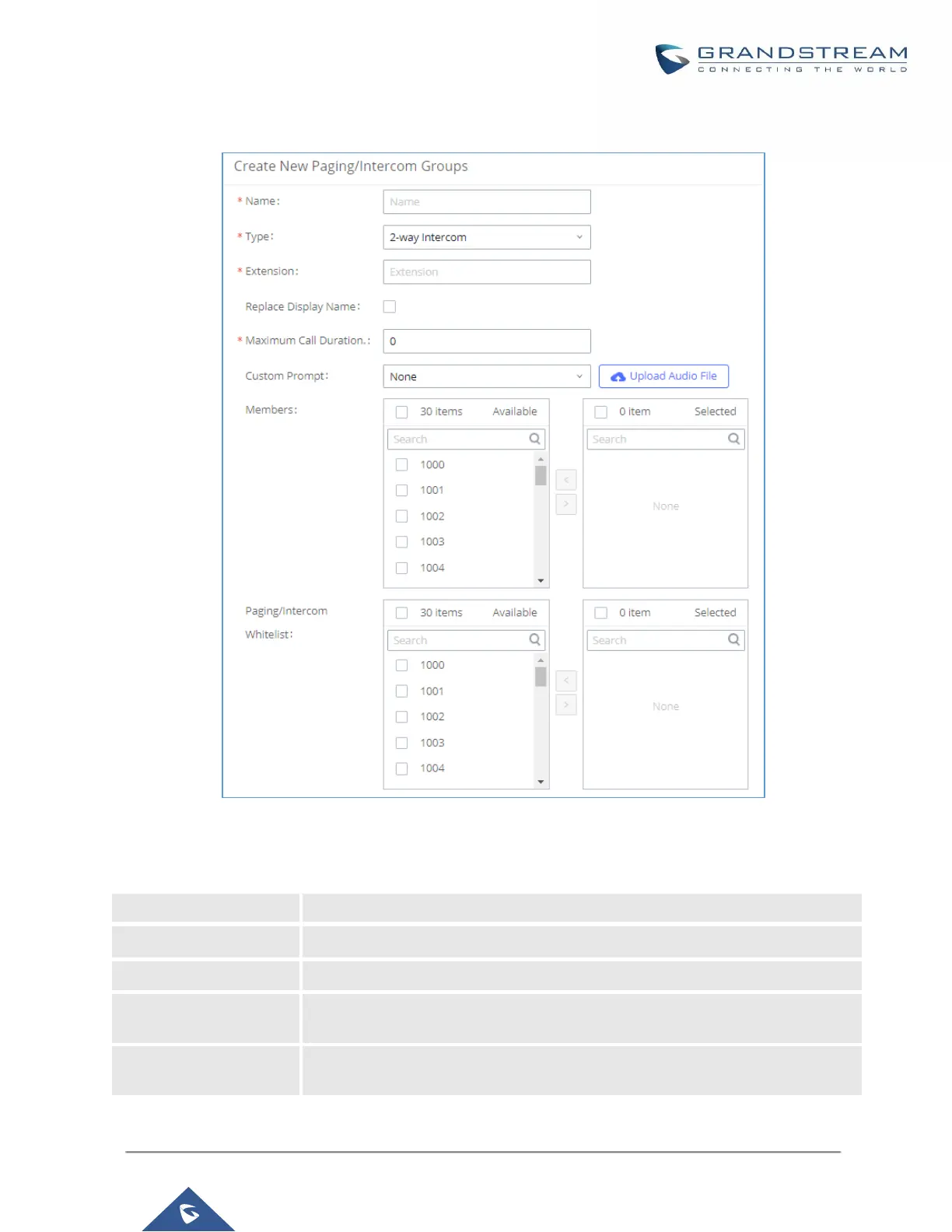

Figure 158: 2-way Intercom

Table 80: 2-way Intercom Configuration Parameters

Name

Configure paging/intercom group name.

Type

Select "2-way Intercom".

Extension

Configure the paging/intercom group extension.

Replace Display Name

If enabled, the UCM will replace the caller display name with Paging/Intercom

name.

Maximum Call Duration

Specify the maximum call duration in seconds. The default value 0 means no

limit.
