P a g e | 240

UCM630X Series User Manual

Version 1.0.2.25

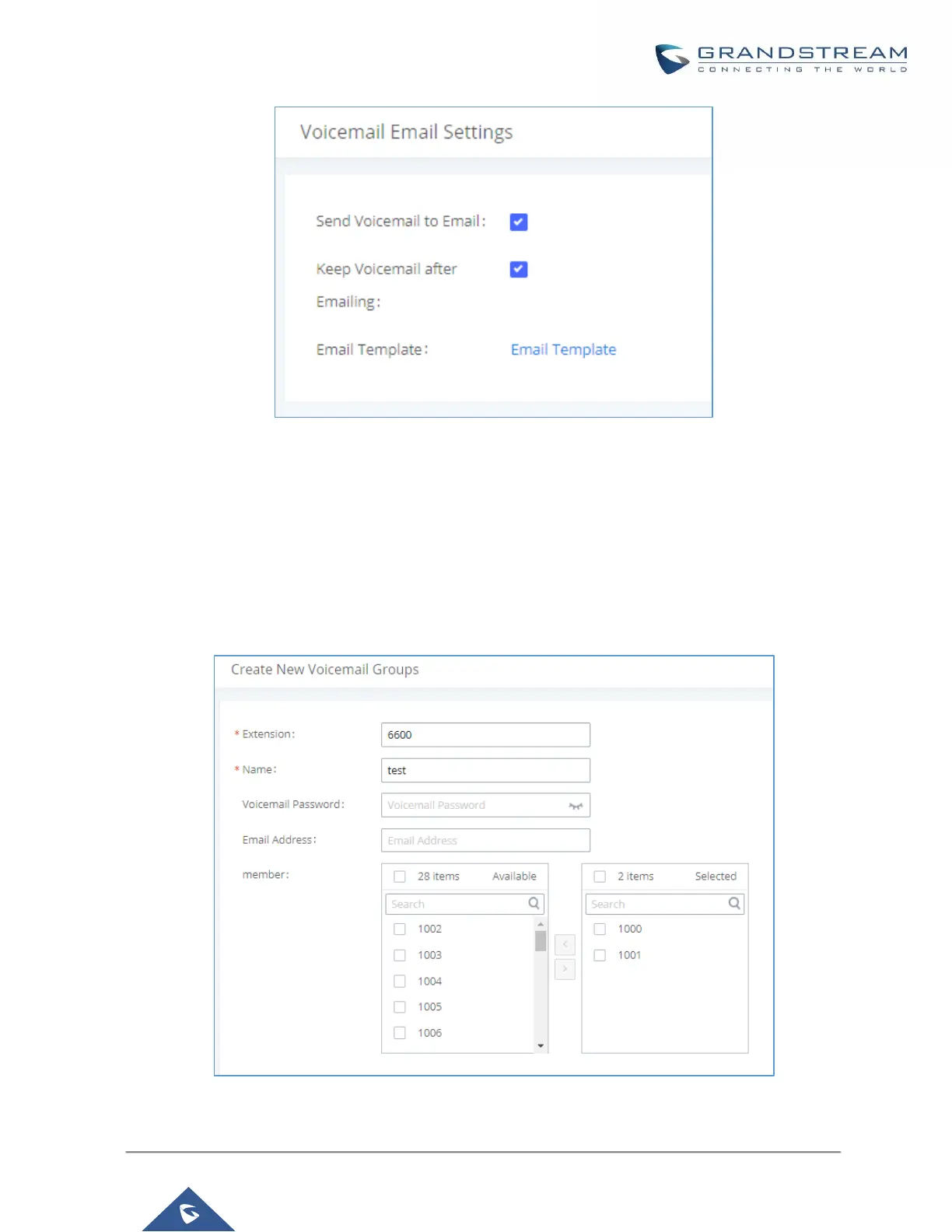

Figure 150: Voicemail Email Settings

Click on "Email Template" button to view the default template as an example.

Configure Voicemail Group

The UCM630X supports voicemail group and all the extensions added in the group will receive the voicemail to

the group extension. The voicemail group can be configured under Web GUICall

FeaturesVoicemailVoicemail Group. Click on "Add" to configure the group.

Figure 151: Voicemail Group
