Appendix B: Greenbrook T205-C Fused Timer Spur Switch Page 37
B.2.3 PROGRAMMING THE ‘ON’/’OFF’ TIMES
! NOTE !
Time setting is 24 hour mode.
1. Refer to Figure B-1. Press the ‘Programme’ button and hold
for 2 seconds. The display will represent Figure B-6 (showing
7-day type operation).

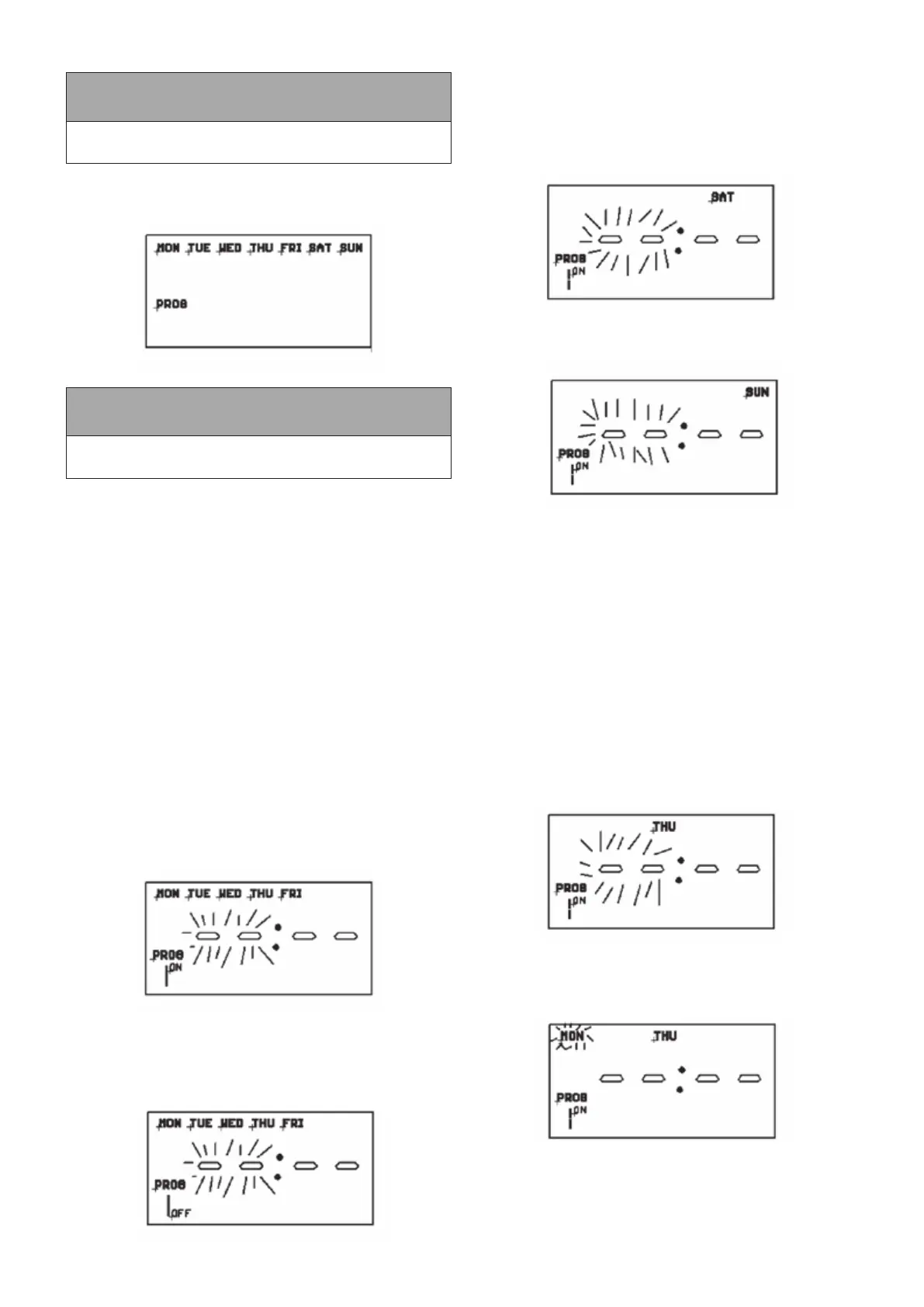

Figure B-6: Setting ‘ON’ / ‘OFF’ times
! NOTE !
Only ONE of the following options can be used at one time.
2. Use the ‘+’ or ‘-’ button to change the day grouping (PROG)
at the top of the display. This will step through the following
programming options:
• 7 DAY - MON TUES WED THU FRI SAT SUN
All of them have the same programming.
OR
• 5 DAY - MON TUES WED THU FRI
Are grouped as one group, and they will have the
same programming. SAT and SUN will be programmed
individually.
OR
• INDIVIDUAL DAY -
Each day will have its program set individually. MON
followed automatically in programming by each of the
other days. To copy times set for an individual day to
another day (e.g. copy Sat set times to Sun), please see
PROGRAM DUPLICATION below.
3. Once the desired day grouping is selected, press ‘PROG’
button to move onto programming ON/OFF times. Display
will show PRoG 1 ON, and the hour digits ashing (24 hour
clock). Refer to Figure B-7.
Figure B-7: Setting ‘ON’ / ‘OFF’ times (5 + 1 + 1 day operation)
4. Use the ‘+’ or ‘-’ buttons to set the hours and the ‘PROG’
button to change between hours and minutes. Followed by
‘+’ or ‘-’ again to set the minutes. Press ‘PROG’ to change the
programme o times. Refer to Figure B-8.
Figure B-8: Setting ‘ON’ / ‘OFF’ times (Monday to Friday)
5. Use the ‘+’ or ‘-’ buttons to set the OFF times in the same
way as for PROG 1 ON time.
6. Press ‘PROG’ to scroll through program 2 ON, program
2 OFF, program 3 ON, program 3 OFF, program 4 ON,
program 4 OFF, adding in times as required. If you wish to
omit programmes just leave dashes in that ON/OFF location.
Press ‘PROG’ to move to the next linked day (SAT follows
the 5 day group automatically). Refer to Figure B-9.
Figure B-9: Setting ‘ON’ / ‘OFF’ times (Saturday)
7. Set ON/OFF times as before. Press ‘PROG’ to move to the
next linked day (SUN follows the SAT automatically). Refer to
Figure B-10.
Figure B-10: Setting ‘ON’ / ‘OFF’ times (Sunday)
8. Sett ON/OFF times as before.
9. Once program 4 OFF has been set, press ‘PROG’ to exit
program mode and return to operating mode.
B.2.4 PROGRAM DUPLICATION
There are two copy functions: copy one day to another, or copy
one day to all other days. When programming for ‘Individual Day’
or ‘5 Day’ you can copy the programmed data from one day to
another day.
1. When setting ON time of ‘PROG’ 1, press ‘TIME’ button and
then use ‘+’ or ‘-’ to select the day you want to copy.
2. Press ‘TIME’ button twice to copy the data of the selected
day to current day. Or press ‘TIME’ button for 2 seconds to
copy the data of the selected day to the following days.
When the ON/OFF times for WED are set, the display will
show ‘THU’. Refer to Figure B-11.
Figure B-11: Duplicating program
3. Press ‘TIME’ button then the icon ‘MON’ will be ashing.
Refer to Figure B-12.
Figure B-12: Duplicating program
