Adjustments and exchange of parts GD Gastro/GC
1. Wash system:

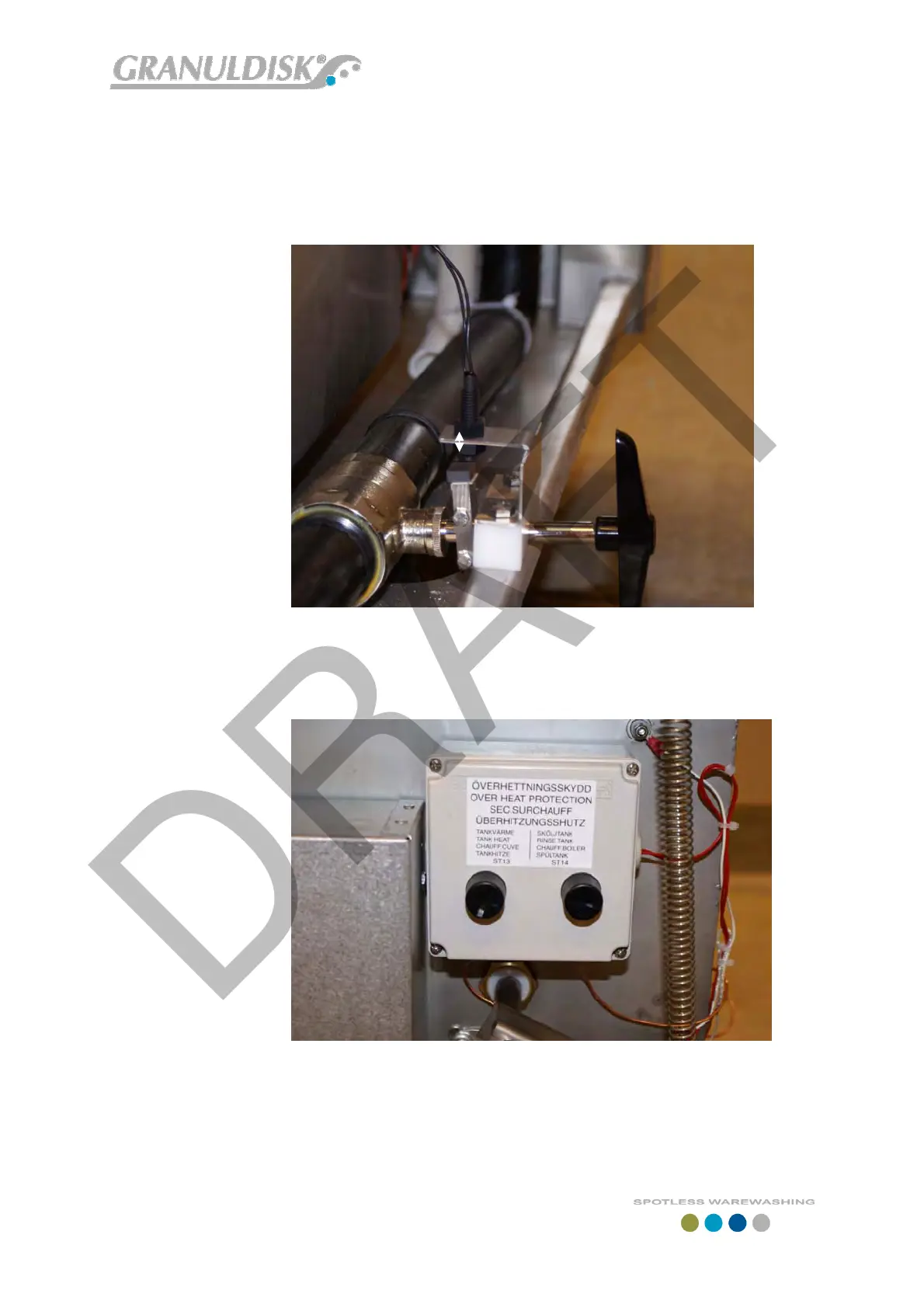

a. Adjustment of drain valve sensor.
1. Adjust distance between magnet and sensor to 3-5 mm.
Hand tighten the lock nuts only, maximum Torque 0.3 Nm.
b. Exchange of wash pump
c. Exchange of wash tank heater.
d. Exchange of wash tank over heat protector.
1. Turn off the electrical supply.
2. Open the over heat protector connection box.
3. Undo the electrical connection.
4. Retract the sensor tube from heater.
3-5 mm
