Service instructions GD gastro/GranuleCombi 1 year service. (8000 Cycles).
1. Note serial number of the machine.
2. Check that the machine is drained and empty of granules.
3. Open the hood and secure it in upper position with the mechanical locking pin.
4. Lift out the wash basket and the basket wheel.
5. Lift out the tank grids left and right.

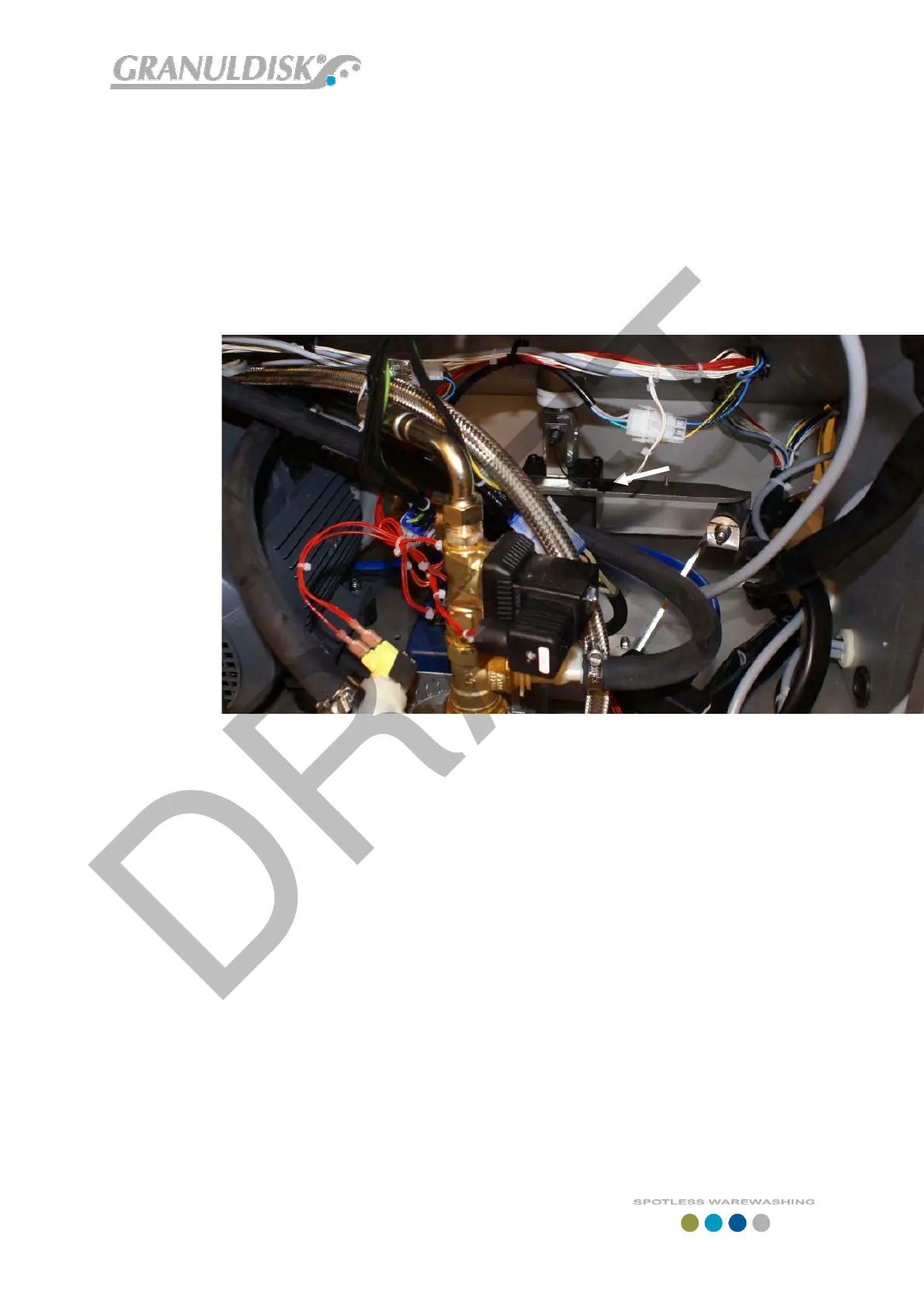

6. Exchange the basket drive seals:
a. Undo left and front lower cover plates.
b. Disconnect the magnetic sensor.
c. Replace the basket wheel. Rotate the basket wheel by hand anti clock
wise until the shaft is completely free from the coupling.
d. Lift up the shaft.
