15

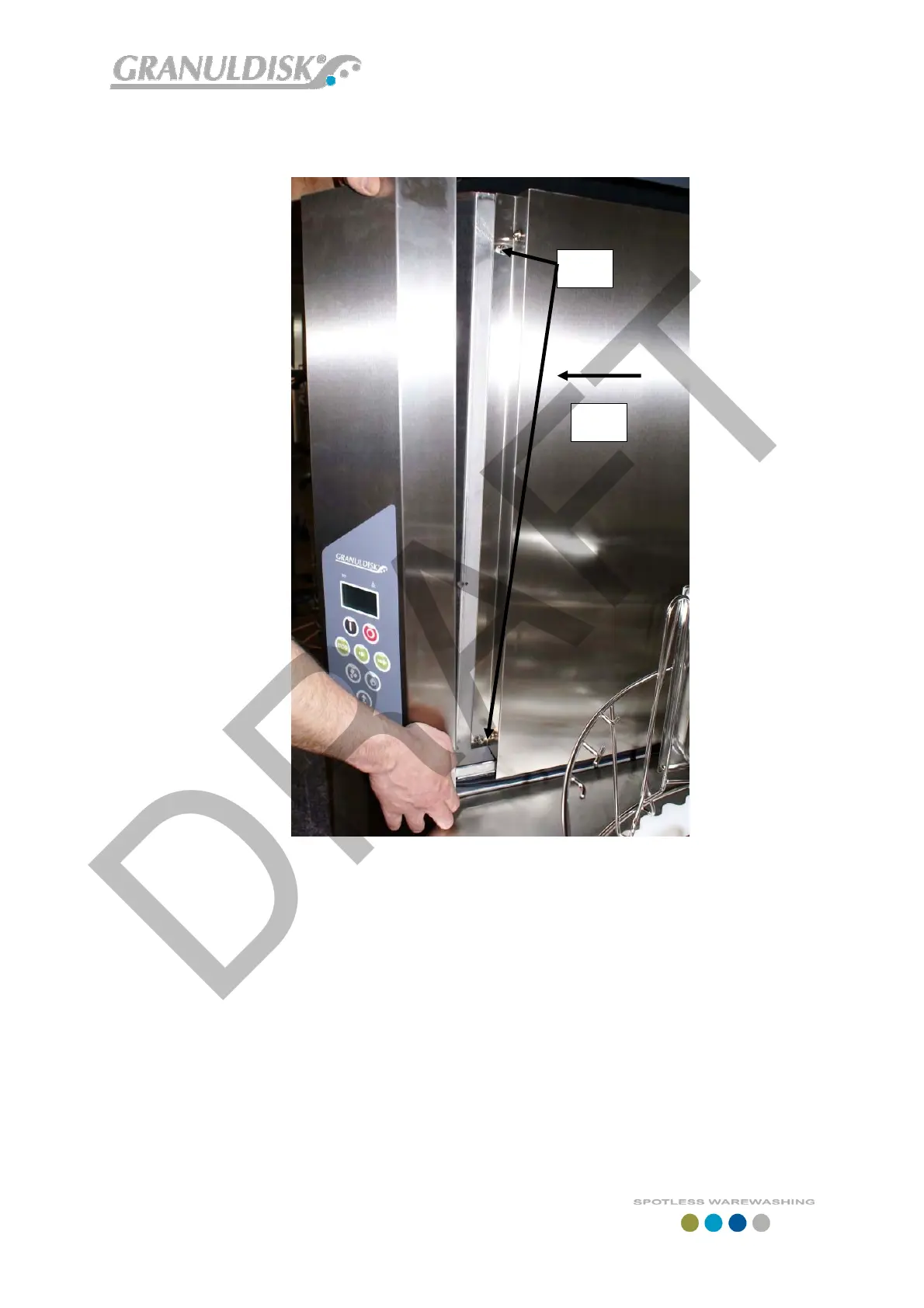

c. Dismounting and mounting of hood cover plates.
1. Lift off the roof.
2. Undo the front plate by lifting it up. One side at the time.
3. Undo the electrical connection on the display pcb.
4. Undo the two retaining nuts and undo the side plate.
5. Repeat on the other side.
6. Assembly:
7. Mount the side plates. Push the side plates forward as the nuts
are tightened.
8. Connect display pcb.
9. Mount front plate one side at the time.
10. Mount roof.
d. Exchange of wheels on lift yoke.
1. Make sure the machine is empty of water.
2. Pull the machine forward on a pallet pump truck.
3. Undo the roof.
4. See section Dismounting and mounting of hood cover plates.
4
7
