21
2. When the hood is in any other position the switch is
connected.
f. Renovation of lift cylinder.
1. Use Kit, reference number 14646 contents:
Piston gasket 1 pc
Shaft gasket 1 pc
Wiper 1 pc
Slide plastic bearing 1 pc
O-ring 2 pcs
Lubrication grease
2. Mounting instructions:
The machine has to be switched-off, water inlets closed, hood
down and back side accessible.
Remove the rear cover plate, release the piston shaft from
lower yoke and release booth hoses from the T-coupling on the
hydraulic cylinder.
The cylinder can preferably be removed from machine.

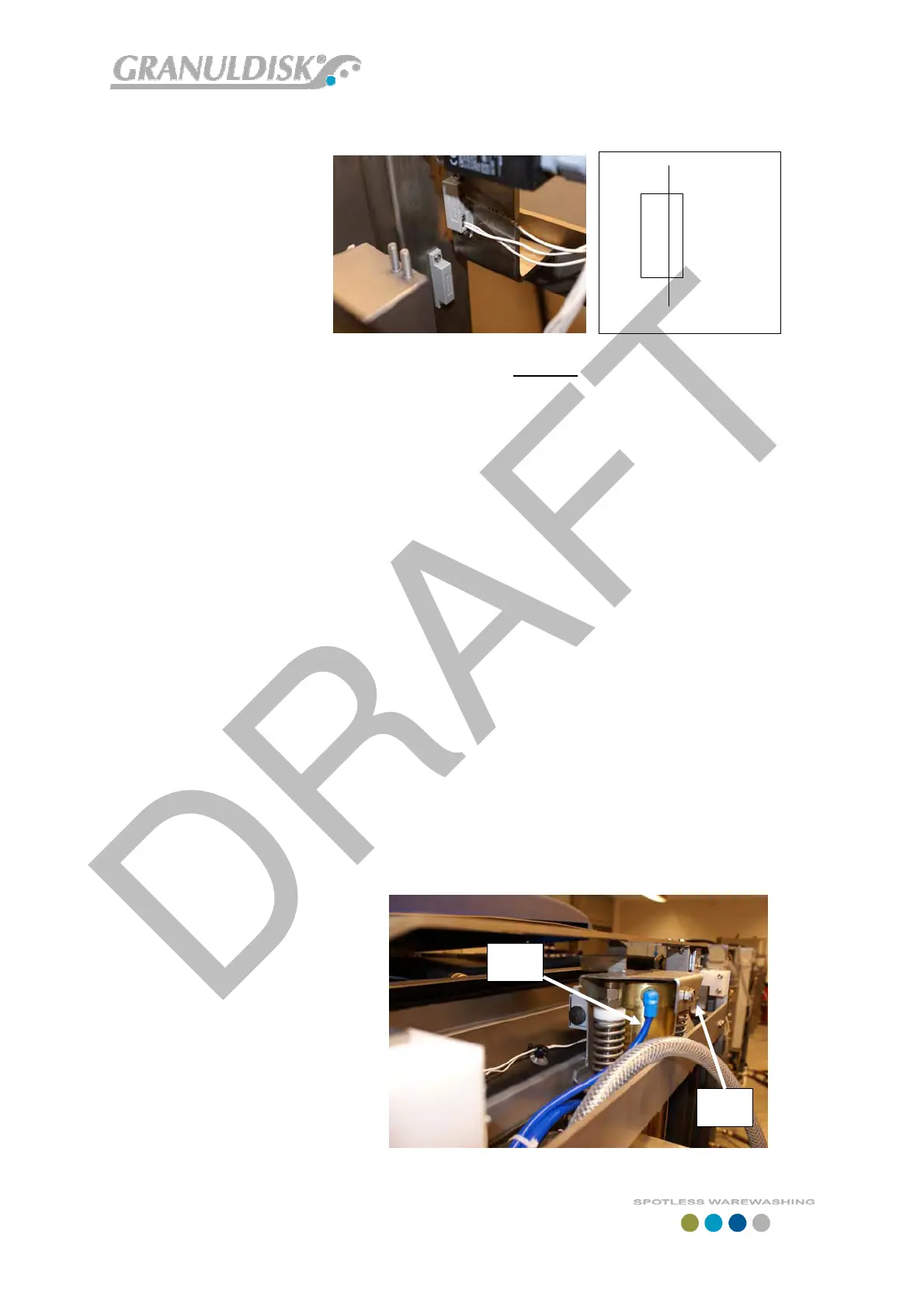

a. Undo the shaft from yoke by undoing the screw
and nut.
b. Undo the blue leakage tube.
c. Undo the retaining nut; lift the cylinder until the
retaining screw can be taken out.
d. Take out the cylinder downwards.
b
c
