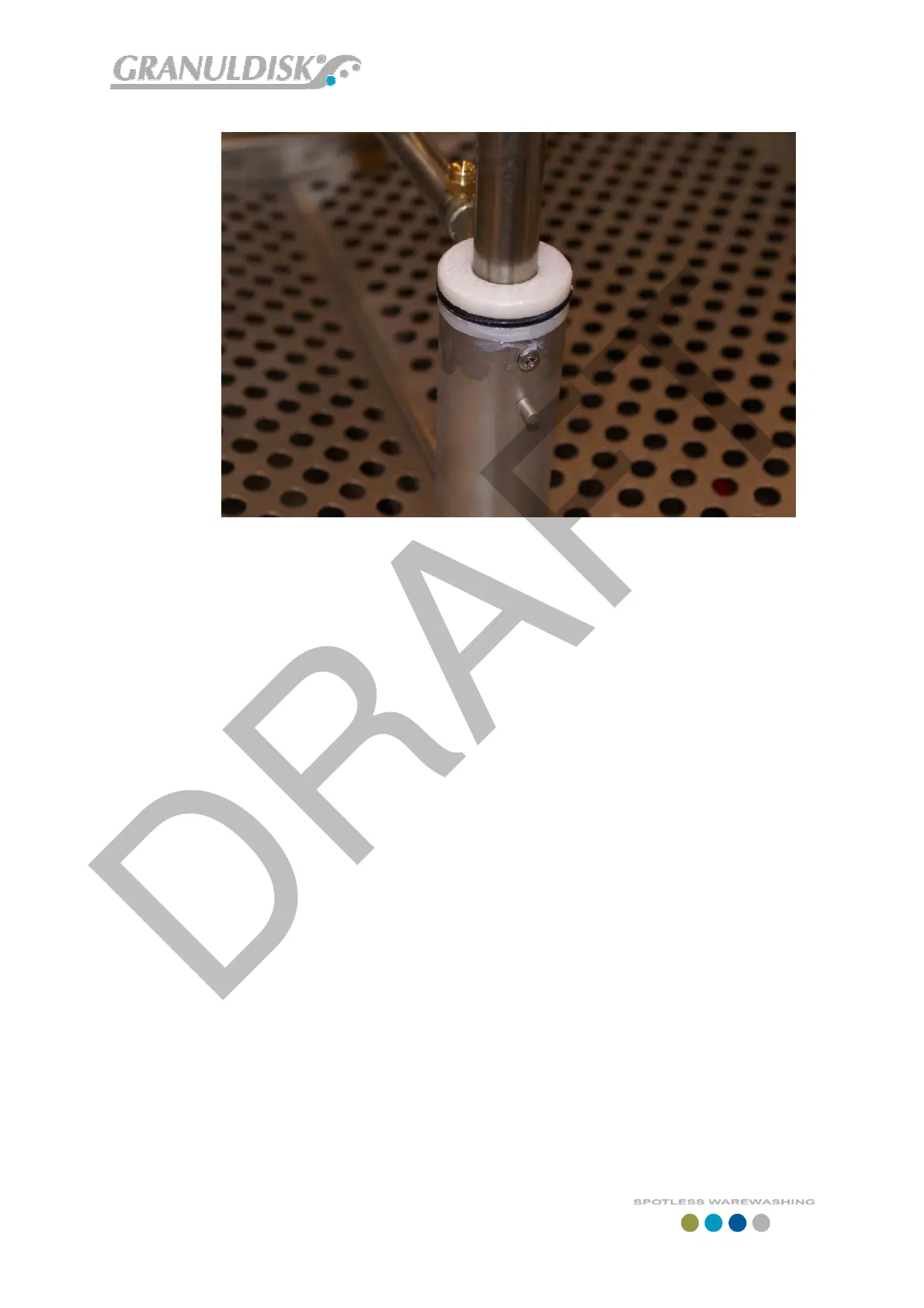

i. Refit the bearing and the retainer screws.
j. Replace the shaft and basket wheel.
k. Lift up the motor until shafts treads meets the threads on the coupling.
Rotate the basket wheel clock wise until all treads are in the coupling.
i. Note: Never use any tread lock liquids or similar on the
treads. If needed apply small amount of grease on the
treads.
l. Reconnect the magnetic sensor.
7. Replace Granule damper seal and granule damper shaft seal:
a. Unhook the spring.
b. Undo the bolt through the linear motor and fold away the linear motor.
c. Unscrew the bolt going into the shaft.
