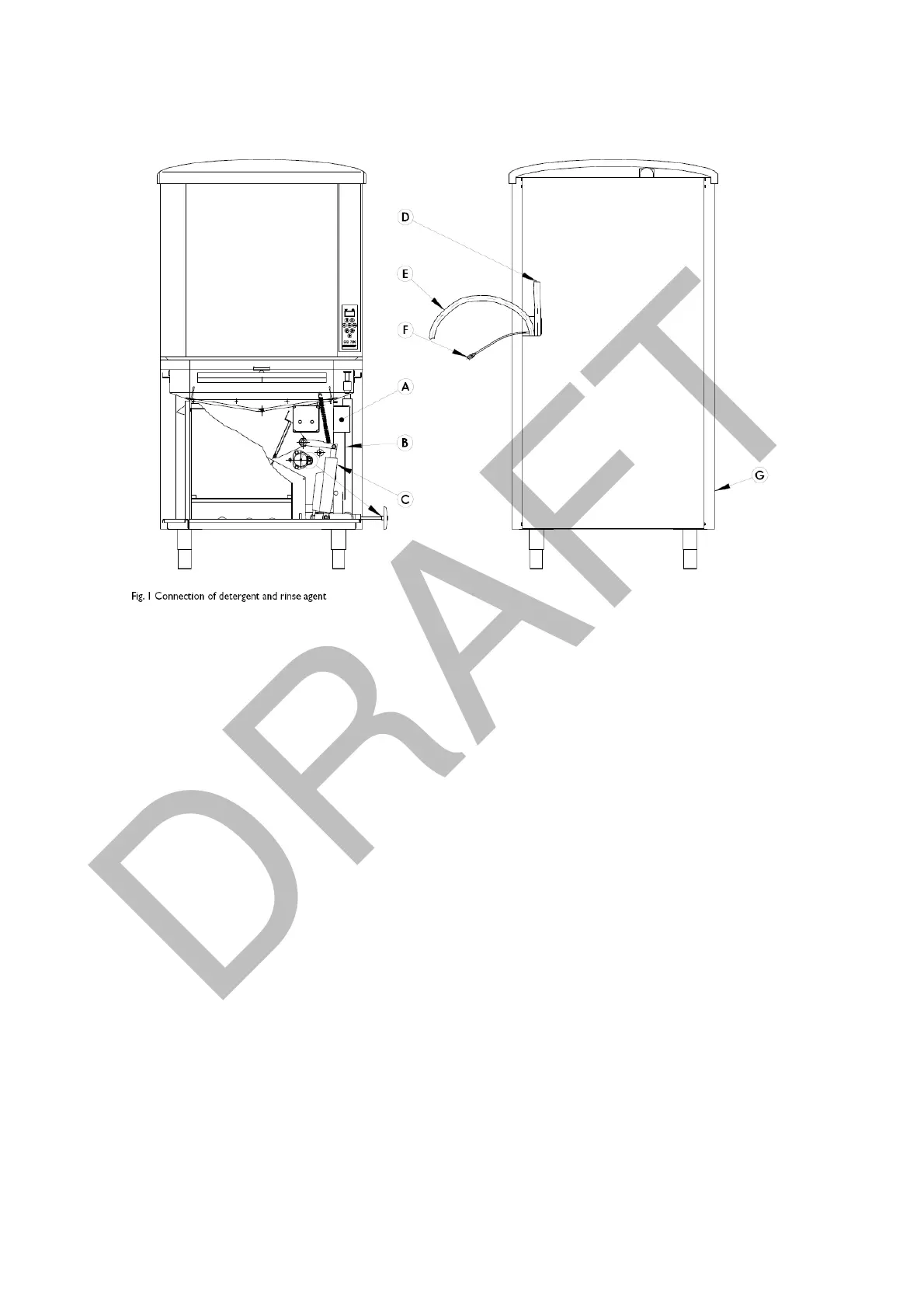

The machine is prepared with a short pipe and a transparent hose (E) for detergent
inlet. This device is located on the right hand side on the back of the machine. The
transparent pipe protrudes from an opening in the back cover and it is designed to
take solid style detergent. When installing liquid detergent the transparent hose have
to be cut some 500 mm from the pipe and the liquid dosing hose have to be pushed
in to the transparent one and strapped in position.
The machine is also prepared with a rinse aid connection (F) at the same point. The
connection is 1/8” internal threads.
The pre drilled sensor hole (C) will be found on the right hand side 300 mm right of
the detergent junction box and 100 mm below.. To make it easier to find, a red
plastic blank fit in the hole
In case of that solid detergent has to be connected the hot water point (1/8”) for the
dosing equipment
is located at the machine’s hot water connection.
All lead-through from outside the machine to detergent junction box has to be done
trough the white flexI pipe (D), this to prevent leads from the dosing equipment to
get cut by the hood lifting yoke
- It is very important that the detergent supplier is using the prepared
holes so that no unnecessary holes are made in the machine.
- All dosing equipment must be fitted with a main switch.
